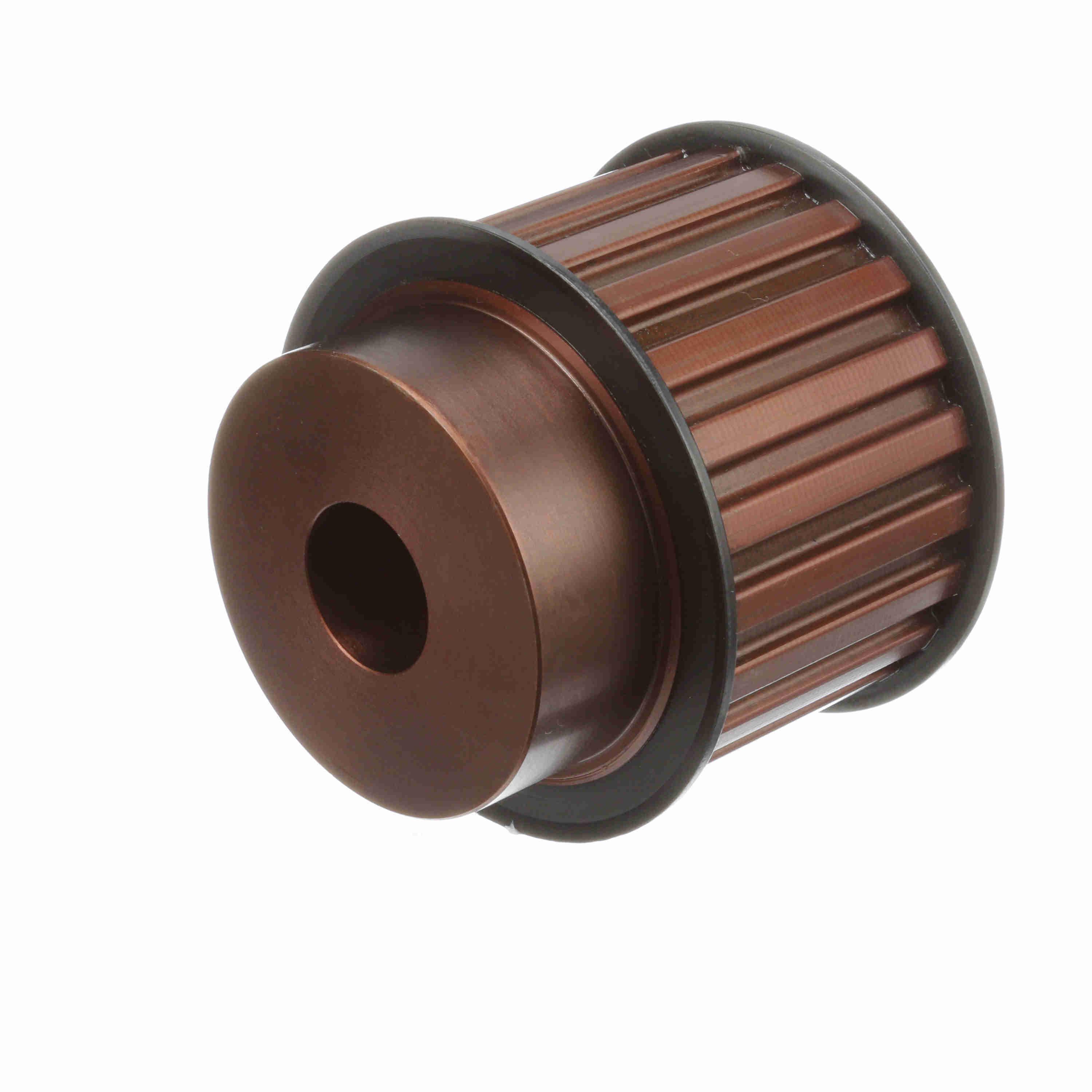

BROWNING 1055714 22HB200 Gearbelt Pulley, Rough Bore, Steel
Item: AX4BQZModel: 1055714Cross Ref: 22HB200
7 In Stock
Ships within 2 days via
€650.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 1" to 1 3/4" |
| Bushing Type | MPB |
| Face Width | 2.344" |
| Flange | Yes |
| Flange Dia. | 3 13/16" |
| For Belt Width | 2" |
| For Use With | 2 Inch Width Type H200 Belt |
| Hub Dia. | 2 3/4" |
| Hub Projection | 1" |
| Keyway | No |
| Max. Bore | 1 3/4" |
| Min. Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 22 |
| Other Features | Heavy, Type 2 |
| Outside Dia. | 3.447" |
| Overall Length | 3 9/32" |
| Pitch Dia. | 3.501" |
| System Of Measurement | Imperial |
| Type | Type 2 |
| Weight | 2.842 Kg |
Shipping Info:
| Ship weight (kg) | 3.08 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 10.67 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Flange Dia. | Hub Dia. | Hub Projection | Max. Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1055649 | 14 | 2.228" | 2.174" | 3/4" to 7/8" | 2 7/16" | 1 5/8" | 5/8" | 7/8" | €407.61 | |
 |
1055656 | 16 | 2.546" | 2.492" | 3/4" to 1 1/8" | 2 7/8" | 1 7/8" | 3/4" | 1 1/8" | €341.37 | |
 |
1055680 | 19 | 3.024" | 2.97" | 3/4" to 1 1/2" | 3 3/8" | 2 3/8" | 3/4" | 1 1/2" | €827.19 | |
 |
1055706 | 21 | 3.342" | 3.288" | 1" to 1 11/16" | 3 5/8" | 2 5/8" | 7/8" | 1.688" | €254.79 | RFQ
|
 |
1055722 | 24 | 3.82" | 3.766" | 1" to 1 7/8" | 4 1/16" | 3" | 1" | 1 7/8" | €453.42 | |
 |
1055730 | 26 | 4.138" | 4.084" | 1" to 2 1/4" | 4 3/8" | 3 3/8" | 1 1/8" | 2 1/4" | €662.04 | |
 |
1055755 | 30 | 4.775" | 4.721" | 1" to 2 3/8" | 5" | 3 5/8" | 1 1/8" | - | €542.22 |
