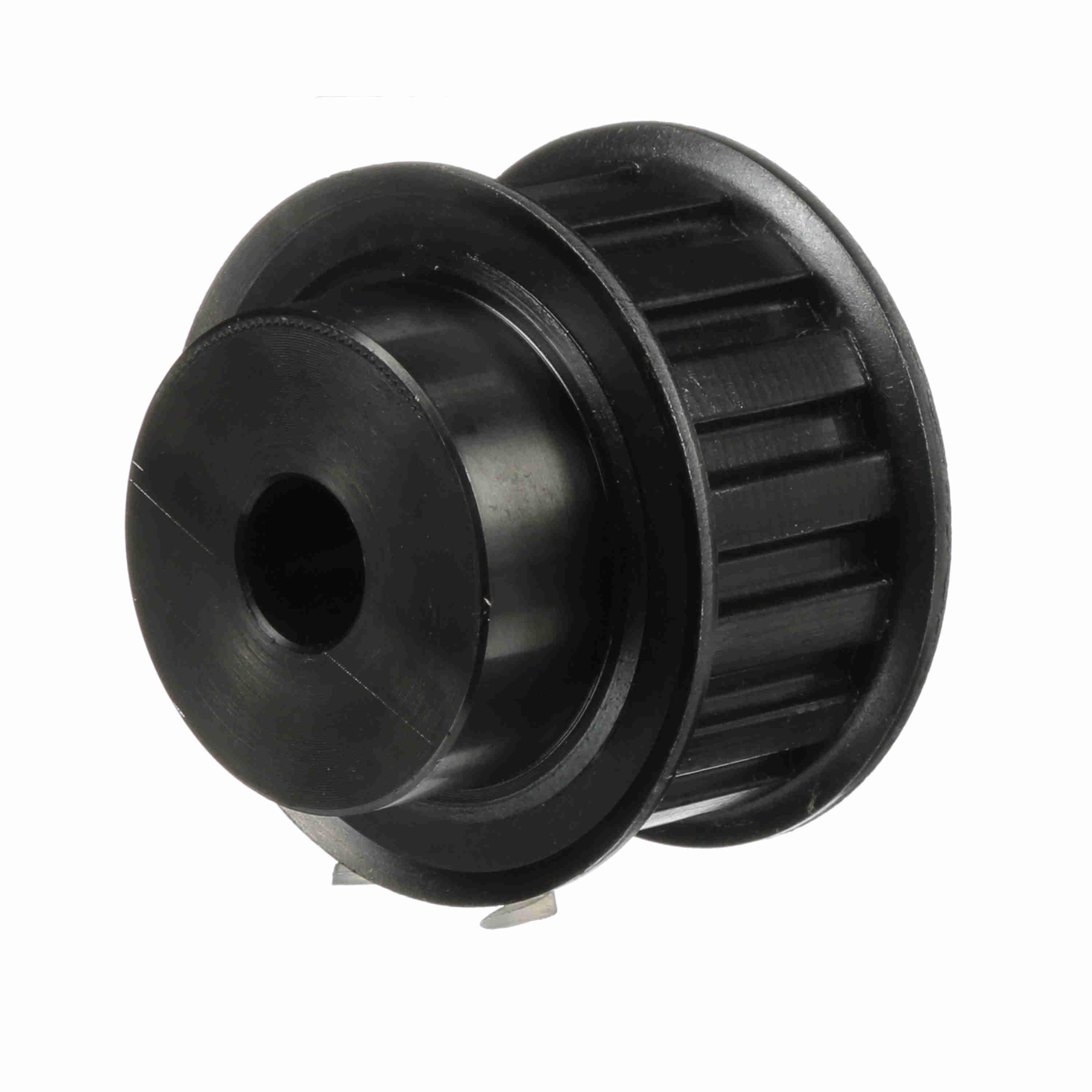

BROWNING 1055417 16HB100 Gearbelt Pulley, Rough Bore, Steel
Item: AX3TCBModel: 1055417Cross Ref: 16HB100
7 In Stock
Ships within 2 days via
€176.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 5/8" to 1 1/8" |
| Bushing Type | MPB |
| Face Width | 1.313" |
| Flange | Yes |
| Flange Dia. | 2 7/8" |
| For Belt Width | 1" |
| For Use With | 1 Inch Width Type H100 Belt |
| Hub Dia. | 1 7/8" |
| Hub Projection | 3/4" |
| Keyway | No |
| Max. Bore | 1 1/8" |
| Min. Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 16 |
| Other Features | Heavy, Type 2 |
| Outside Dia. | 2.492" |
| Overall Length | 2" |
| Pitch Dia. | 2.546" |
| System Of Measurement | Imperial |
| Type | Type 2 |
| Weight | 0.91 Kg |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Flange Dia. | Max. Bore | Hub Dia. | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1055441 | 19 | 3.024" | 2.97" | 5/8" to 1 1/2" | 3 3/8" | 1 1/2" | 2 3/8" | 3/4" | €239.33 | |
 |
1055458 | 20 | 3.183" | 3.129" | 5/8" to 1 5/8" | 3 3/8" | 1 5/8" | 2 1/2" | 7/8" | €245.01 | |
 |
1055466 | 21 | 3.342" | 3.288" | 3/4" to 1 11/16" | 3 5/8" | 1.688" | 2 5/8" | 7/8" | €270.86 | |
 |
1055474 | 22 | 3.501" | 3.447" | 3/4" to 1 3/4" | 3 13/16" | 1 3/4" | 2 3/4" | 1" | €306.09 | |
 |
1055482 | 24 | 3.82" | 3.766" | 3/4" to 1 7/8" | 4 1/16" | 1 7/8" | 3" | 1" | €319.97 | |
 |
1055490 | 26 | 4.138" | 4.084" | 3/4" to 2 1/4" | 4 3/8" | 2 1/4" | 3 3/8" | 1 1/8" | €330.23 | |
 |
1055508 | 28 | 4.456" | 4.402" | 3/4" to 2 5/16" | 4 11/16" | 2.313" | 3 1/2" | 1 1/8" | €363.63 |
