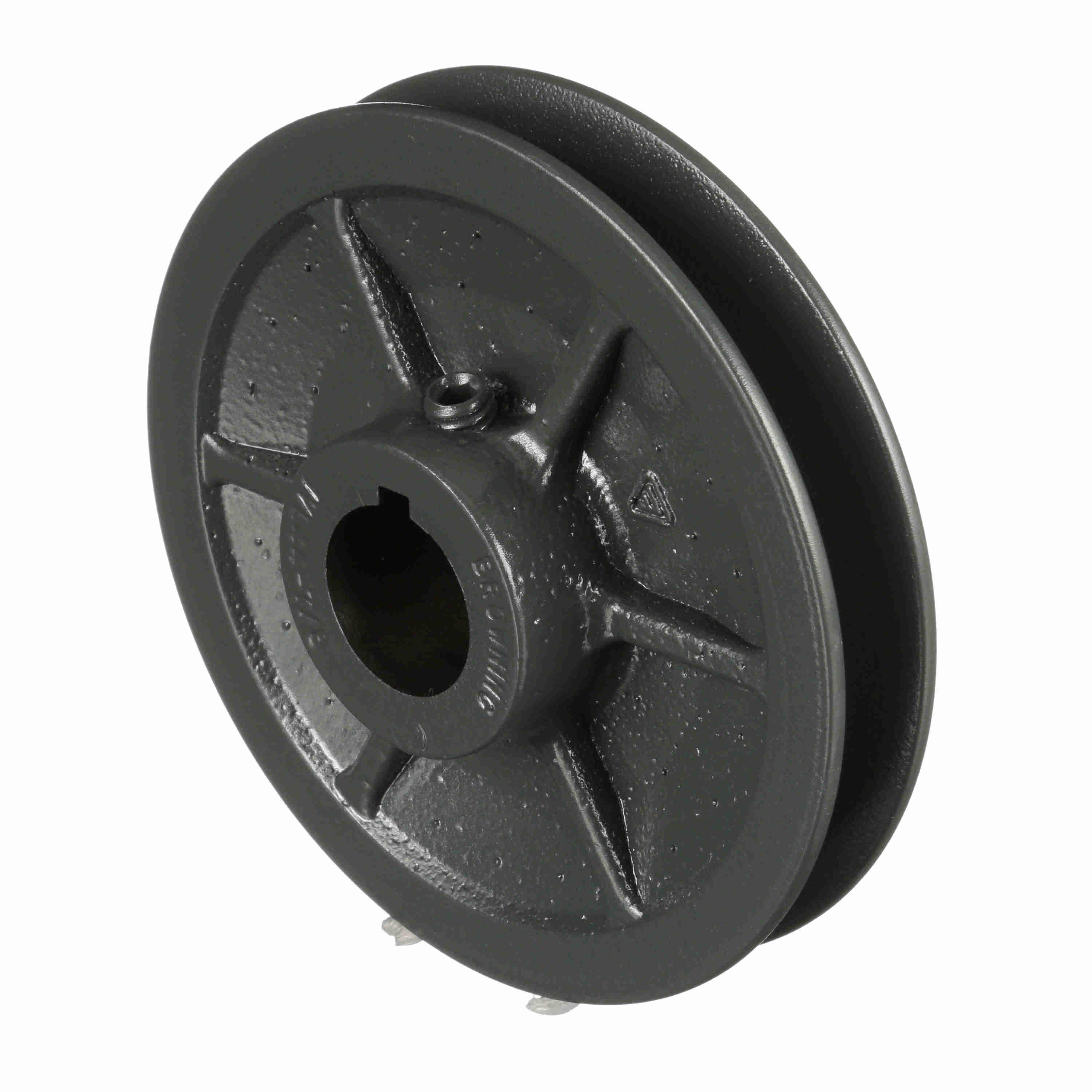

BROWNING 1046457 1VL44X7/8 V-Belt Sheave, Variable Pitch, Finish Bore, 1 Groove, Cast Iron, 4.15 in OD, 7/8 in Bore Dia, 21/32 to 1-1/32 in face Width
Item: AM8PPCModel: 1046457Cross Ref: 1VL44X7/8
7 In Stock
Ships within 2 days via
€112.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| 4l/a Pitch Dia. | 3" to 4" |
| Adjustment Method | Manual Turn |
| Belt Series | 3L, 4L, A, 5L, B Series |
| Bore Dia. | 7/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 21/32" to 1 1/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 1.031" |
| Max. Pitch Dia. | 4.1" |
| Min. Belt Width | 3/8" |
| Min. Face Width | 0.656" |
| Min. Pitch Dia. | 2.7" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 4.15" |
| Overall Length | 1 7/8" |
| Pitch Dia. (5l/b) | 3 1/5" to 4 1/5" |
| Pitch Dia. 3l | 2.7" to 3.5" |
| Series | VL Series |
| Suitable For Use With | Gripbelt 3L, 4L/A And 5L/B Cross Section FHP V-Belt |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.74 |
| Ship height (cm) | 10.54 |
| Ship length (cm) | 4.78 |
| Ship width (cm) | 10.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Face Width | Max. Pitch Dia. | Belt Series | Min. Pitch Dia. | Pitch Dia. | Pitch Dia. 3l | 4l/a Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1046333 | 1/2" | 17/32" to 25/32" | 2.7" | 3L Series | 1 4/5" | 1.8" to 2.7" | - | - | €85.01 | |
 |
1046341 | 5/8" | 17/32" to 25/32" | 2.7" | 3L Series | 1 4/5" | 1.8" to 2.7" | - | - | €101.21 | |
 |
1VL25X1/2 BULK | 1/2" | 0.531" to 0.781" | - | - | - | - | 1 3/5" to 2 2/5" | - | €60.98 | |
 |
1VL30X1/2 BULK | 1/2" | 0.531" to 0.781" | - | - | - | - | 1.8" to 2.7" | - | €64.75 | |
|
1VL34X1/2 BULK | 1/2" | 0.656" to 0.969" | - | - | - | - | 1.7" to 2.5" | 2" to 3" | €43.33 | |
|
1VL34X5/8 BULK | 5/8" | 0.656" to 0.969" | - | - | - | - | 1.7" to 2.5" | 2" to 3" | €43.33 | |
|
1VL40X5/8 BULK | 5/8" | 0.656" to 1.031" | - | - | - | - | 2.3" to 3.1" | 2 3/5" to 3 3/5" | €57.10 |
