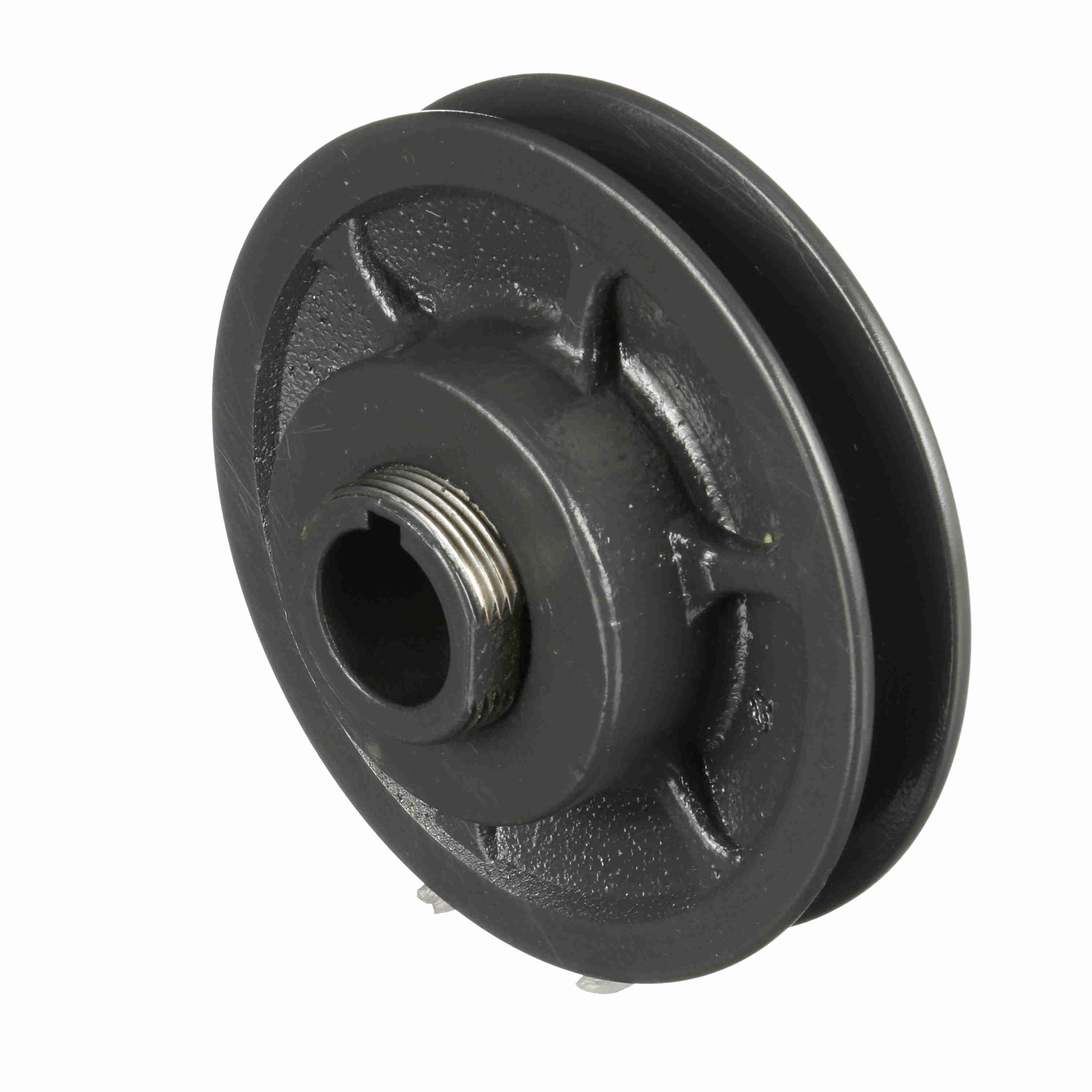

BROWNING 1046408 1VL40X3/4 V-Belt Sheave, Variable Pitch, Finish Bore, 1 Groove, Cast Iron
Item: BA2LWUModel: 1046408Cross Ref: 1VL40X3/4
7 In Stock
Ships within 2 days via
€113.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | 3L, 4L, A, 5L, B Series |
| Bore Dia. | 3/4" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 21/32" to 1 1/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 1.031" |
| Max. Pitch Dia. | 3.7" |
| Min. Belt Width | 3/8" |
| Min. Face Width | 0.656" |
| Min. Pitch Dia. | 2.3" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 3 3/4" |
| Overall Length | 1 7/8" |
| Pitch Dia. (3l) | 2.3" to 3.1" |
| Pitch Dia. (4l/a) | 2 3/5" to 3 3/5" |
| Pitch Dia. (5l/b) | 2 4/5" to 3 4/5" |
| Series | VL Series |
| Suitable For Use With | Gripbelt 3L, 4L/A And 5L/B Cross Section FHP V-Belt |
| System Of Measurement | Imperial |
| Weight | 0.563 Kg |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 4.78 |
| Ship width (cm) | 9.53 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Material | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
1046333 | 2.87" | 1/2" | 17/32" to 25/32" | 1 11/16" | Cast Iron | Finished | €85.01 | |
 |
1046341 | 2.87" | 5/8" | 17/32" to 25/32" | 1 11/16" | Cast Iron | Finished | €101.21 | |
 |
1VL25X1/2 BULK | 2 1/2" | 1/2" | 0.531" to 0.781" | - | Cast Iron | Finished | €60.98 | |
|
1VL30X1/2 BULK | 2.87" | 1/2" | 0.531" to 0.781" | - | Cast Iron | Finished | €64.75 | |
|
1VL34X1/2 BULK | 3.15" | 1/2" | 0.656" to 0.969" | - | Cast Iron | Finished | €43.33 | |
|
1VL34X3/4 BULK | 3.15" | 3/4" | 0.656" to 0.969" | - | Cast Iron | Finished | €48.41 | |
|
1VL34X5/8 BULK | 3.15" | 5/8" | 0.656" to 0.969" | - | Cast Iron | Finished | €43.33 |
