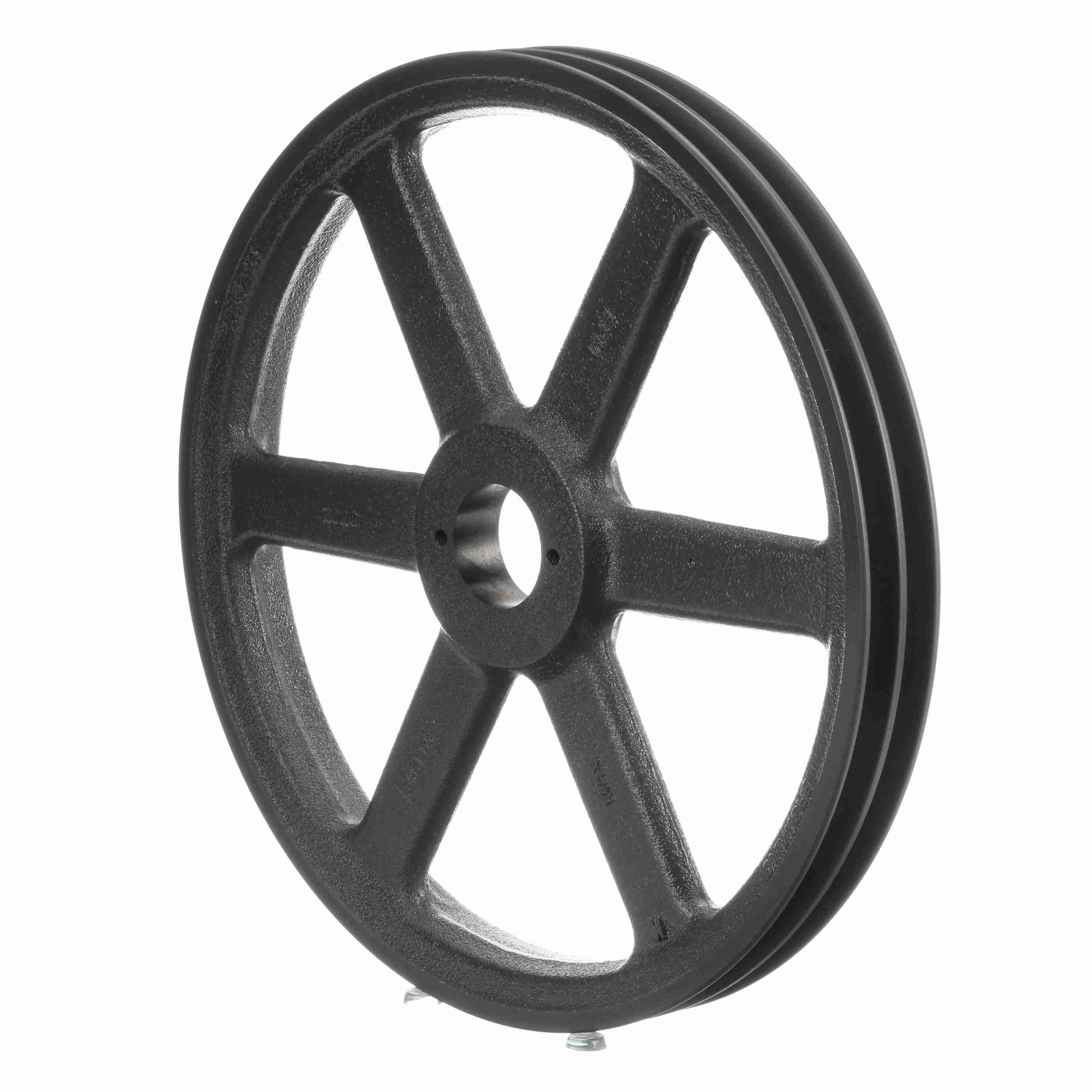

BROWNING 1042902 2AK124H V-Belt Sheave, Bushed, 2 Groove, Cast Iron
Item: AZ9BGNModel: 1042902Cross Ref: 2AK124H
7 In Stock
Ships within 2 days via
€332.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3L, 4L, A Series |
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Split Taper |
| Bushing Type | H |
| Face Width | 1 3/8" |
| Hub Projection | 1/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 12" |
| Min. Pitch Dia. | 11.66" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 12 1/4" |
| Overall Length | 1 13/32" |
| Pitch Dia. (3l) | 11.66" |
| Pitch Dia. (a) | 12 1/5" |
| Series | AK Series |
| Suitable For Use With | Classical Gripbelt 4L/A And 3L Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type 3 |
| Weight | 4.699 Kg |
Shipping Info:
| Ship weight (kg) | 4.66 |
| Ship height (cm) | 3.96 |
| Ship length (cm) | 31.27 |
| Ship width (cm) | 31.27 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Type | Bore Dia. | Type | Overall Length | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1031889 | 2.65" | Finished | 1" | Type 1 | 1 27/32" | Cast Iron | 1 3/8" | €128.11 | |
 |
3195377 | 4 3/4" | Finished | 1 3/8" | Type 2 | 1 27/32" | Cast Iron | 1 3/8" | €368.18 | |
 |
3195435 | 5.45" | Finished | 1 3/8" | Type 3 | 1 27/32" | Cast Iron | 1 3/8" | €378.61 | |
 |
3195443 | 5 3/4" | Finished | 1 1/8" | Type 3 | 1 27/32" | Cast Iron | 1 3/8" | €363.84 | |
 |
3195468 | 5.95" | Finished | 1 1/8" | Type 3 | 1 27/32" | Cast Iron | 1 3/8" | €375.09 | |
 |
3195492 | 6 1/4" | Finished | 1 1/8" | Type 3 | 1 23/32" | Cast Iron | 1 3/8" | €381.55 | |
 |
3195500 | 6 1/4" | Finished | 1 3/8" | Type 3 | 1 23/32" | Cast Iron | 1 3/8" | €308.21 |
