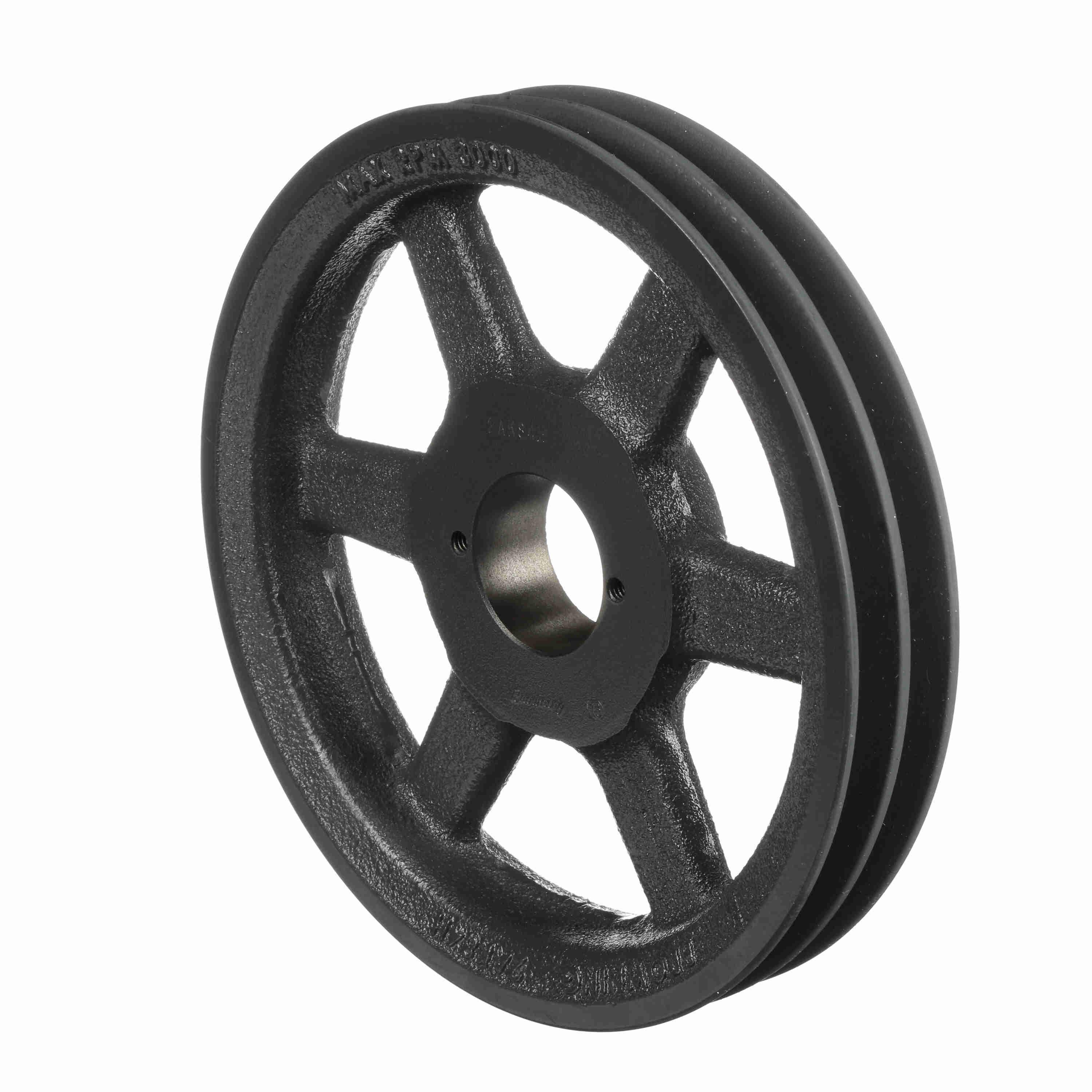

BROWNING 1042860 2AK84H V-Belt Sheave, Bushed, 2 Groove, Cast Iron, 8-1/4 in OD, 3/8 to 1-1/2 in Bore Dia, 8.2 in A/7.66 in 3L Pitch Dia
Item: AZ8ZQHModel: 1042860Cross Ref: 2AK84H
7 In Stock
Ships within 2 days via
€305.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3L, 4L, A Series |
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Split Taper |
| Bushing Type | H |
| Face Width | 1 3/8" |
| Hub Projection | 1/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8" |
| Min. Pitch Dia. | 7.66" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 8 1/4" |
| Overall Length | 1 13/32" |
| Pitch Dia. (3l) | 7.66" |
| Pitch Dia. (a) | 8 1/5" |
| Series | AK Series |
| Suitable For Use With | Classical Gripbelt 4L/A And 3L Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type 3 |
Shipping Info:
| Ship weight (kg) | 2.64 |
| Ship height (cm) | 3.96 |
| Ship length (cm) | 21.11 |
| Ship width (cm) | 21.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Type | Bore Dia. | Type | Overall Length | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3195377 | 4 3/4" | Finished | 1 3/8" | Type 2 | 1 27/32" | Cast Iron | 1 3/8" | €368.18 | |
 |
3195435 | 5.45" | Finished | 1 3/8" | Type 3 | 1 27/32" | Cast Iron | 1 3/8" | €378.61 | |
 |
3195500 | 6 1/4" | Finished | 1 3/8" | Type 3 | 1 23/32" | Cast Iron | 1 3/8" | €308.21 | |
 |
3195567 | 11 1/4" | Finished | 1 3/8" | Type 1 | 1 23/32" | Cast Iron | 1 3/8" | €778.68 | |
 |
1042845 | 6 1/4" | Split Taper | 3/8" to 1 1/2" | Type 3 | 1 13/32" | Cast Iron | 1 3/8" | €180.82 | |
 |
1042944 | 18 1/4" | Split Taper | 3/8" to 1 1/2" | Type 3 | 1 13/32" | Cast Iron | 1 3/8" | €571.03 | |
 |
3195393 | 4.95" | Finished | 1 3/8" | Type 2 | 1 27/32" | Cast Iron | 1 3/8" | €490.97 |
