Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 3/4" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/4" |
| Hub Projection | 15/32" |
| Material | Cast Iron |
| Max. Pitch Dia. | 2 4/5" |
| Min. Pitch Dia. | 2 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Overall Length | 2 7/32" |
| Pitch Dia. (a) | 2 3/5" |
| Series | BK Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type 1 |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Bore Type | Outside Dia. | Type | Overall Length | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1042977 | 3/8" to 1 1/2" | Split Taper | 3 3/4" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | €151.98 | |
![]() |
1043017 | 3/8" to 1 1/2" | Split Taper | 4 3/4" | Type 2 | 2 5/32" | Cast Iron | - | €145.60 | |
![]() |
1043116 | 3/8" to 1 1/2" | Split Taper | 8 3/4" | Type 3 | 1 29/32" | Cast Iron | 1 3/4" | €226.94 | |
![]() |
1033018 | 1/2" | Finished | 2 1/2" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | €241.18 | |
![]() |
1033372 | 1 3/8" | Finished | 3 3/4" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | €218.36 | |
![]() |
1034172 | 1" | Finished | 15 3/4" | Type 3 | 2 3/32" | Cast Iron | 1 3/4" | €775.83 | |
![]() |
2739019 | 3/8" to 1 1/2" | Split Taper | 3.95" | Type 2 | 2 7/32" | Cast Iron | 1 3/4" | €165.49 |
Explore Products
- BOSCH BH2002T Installer Bell Hanger Drill, 5/16 Inch Size Drill Bit Size, 18 Inch Size Overall Length
- REGAL 010374AS43 Thread Forming Tap, 1/4-28 Size, H4 Limit, Bottom With Steam Oxide
- PBC LINEAR CSLSM06AGXR10Z-2SN-0200-0 Compact Linear Actuator, 6mm Lead Screw, 6mm Lead, 10mm Max. Stroke, Anti-Backlash
- WALTER TOOLS 5058547 Jobber Length Drill Bit, 1.85 mm Size, 22 mm Flute Length, 46 mm Overall Length
- SOLBERG SLCRT100 Silencer 1 Mnpt Out 42 Max Cfm
- BUSSMANN SR-5F-5A-BK PCB Mount Fuse, Fast Blow, 5A, 250VAC
- KIPP K0338.1308 Spring Plunger, Lockout, Without Locking Nut, Black Oxide-Coated Steel Body
- APPROVED VENDOR 5VZU2 Blower Shaft Steel 3/4 Inch Diameter 20 Inch Length
Explore More
- KEYSHAFT
- LINCOLN ELECTRIC
- SNYDER INDUSTRIES
- HATEC
- MEDIFY AIR
- Solid Spade Drill Bits
- Variable Frequency Drives
- Weatherproof Lampholders
- Stationary Power Tool Motors
- Pneumatic Limit Valves
- LEATHERHEAD TOOLS Breacher Irons Series, Halligan And Sledges
- DESTACO 670, 675, 690, 695 Series Straight Line Action Clamps
- DESTACO 2007 Series Vertical Hold Down Clamps, U Bar
- GLOBE SCIENTIFIC Labeling Tapes, 1/2 Inch x 60 Yard per Roll
- DAYTON Lifting Chains
- REIKU System Support Top
- MARTIN SPROCKET Bored To Size C Type Flame Cut Sprockets, 78 Chain Number
- FEIN POWER TOOLS Scraping Blades for Oscillating Tools
- RUKO Bi Metal Hole Saw Kits
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

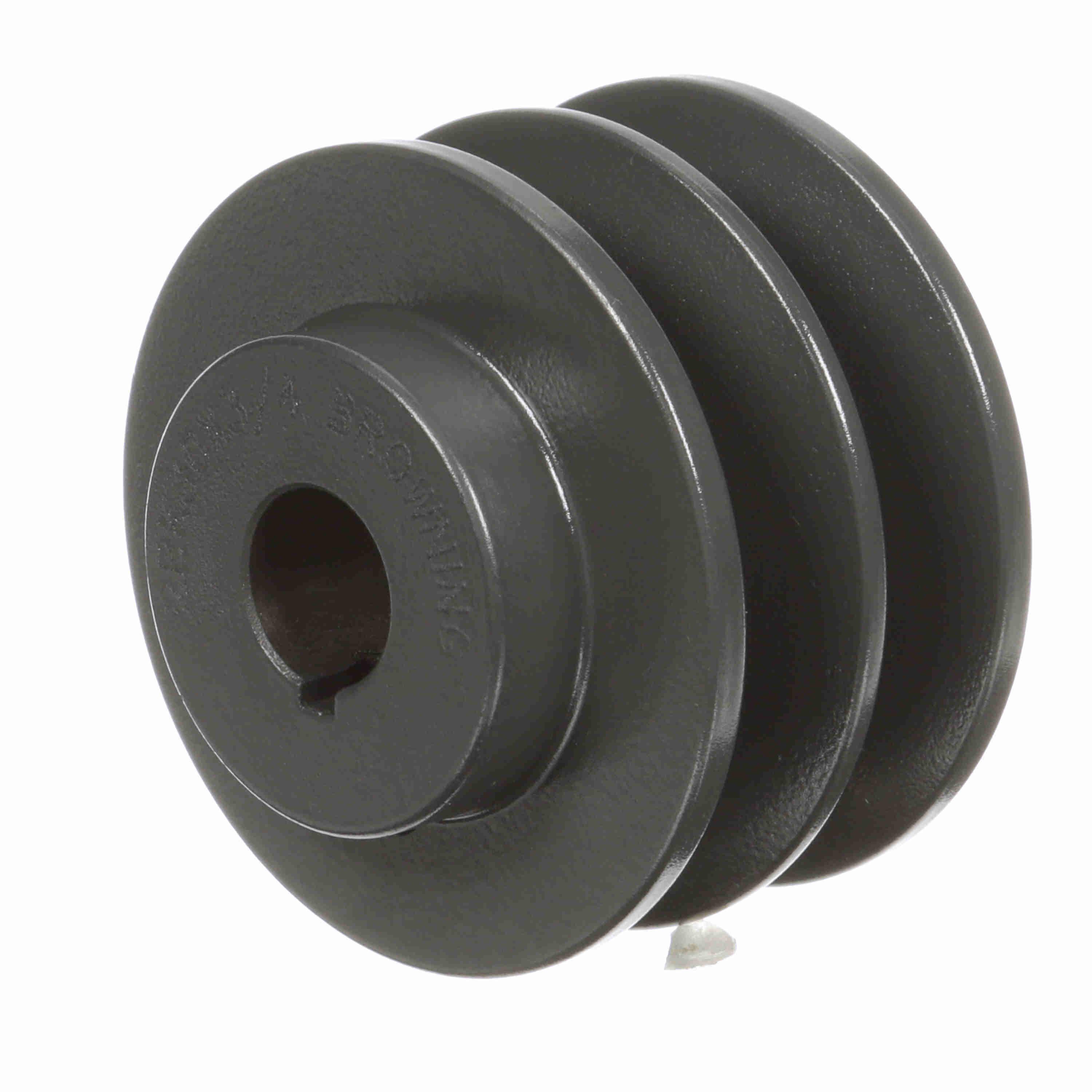

BROWNING 1033182 2BK30X3/4 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron
