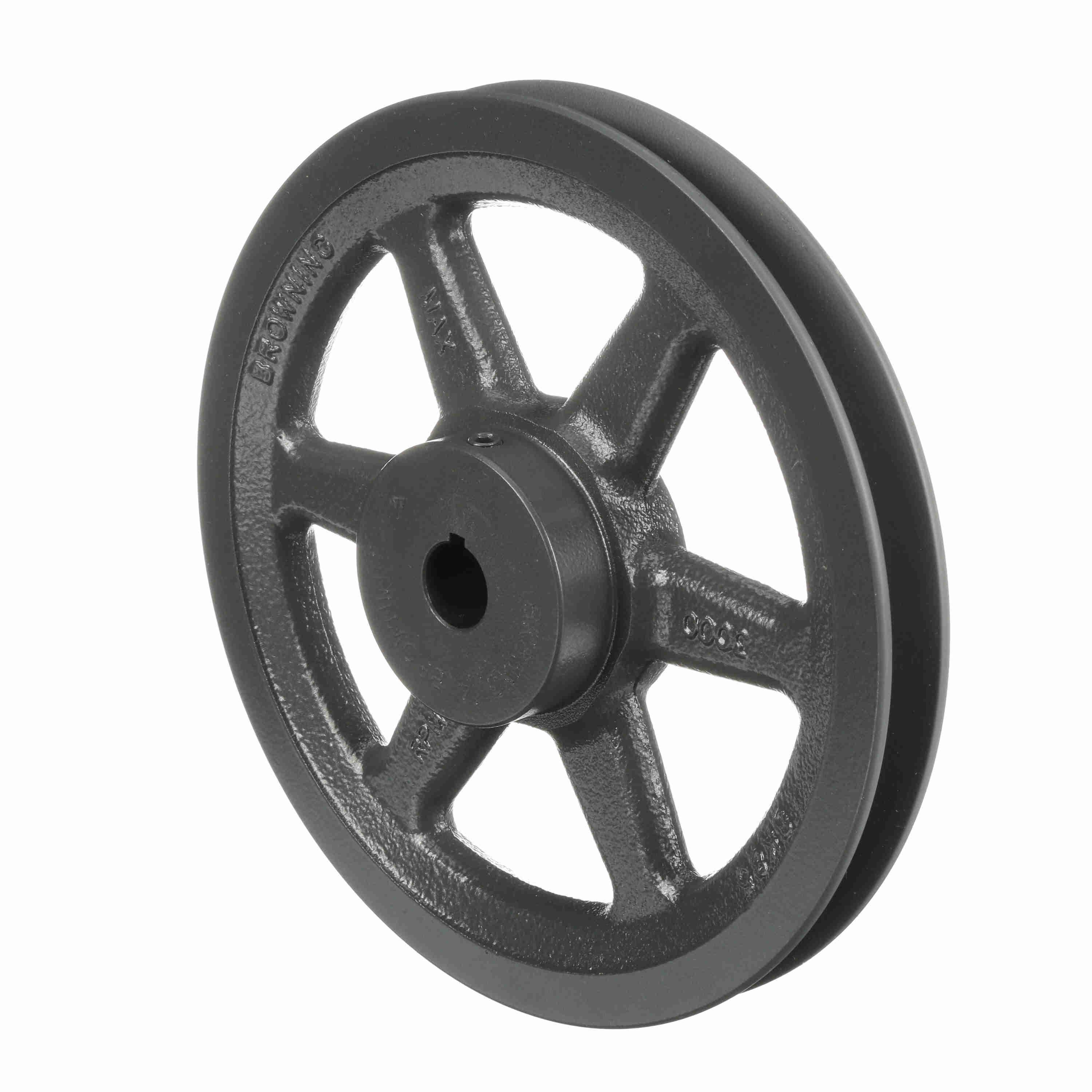

BROWNING 1029107 BK85X3/4 V-Belt Sheave, Finish Bore, 1 Groove, Cast Iron
Item: AZ9NFWModel: 1029107Cross Ref: BK85X3/4
7 In Stock
8 1/4"
3/4"
Ships within 2 days via
€307.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 3/4" |
| Bushing Type | No Bushing |
| Face Width | 7/8" |
| Hub Projection | 21/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7.9" |
| Min. Pitch Dia. | 7 1/2" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 8 1/4" |
| Overall Length | 1 17/32" |
| Pitch Dia. (a) | 7.7" |
| Pitch Dia. (b) | 8 1/5" |
| Series | BK Series |
| Suitable For Use With | 4L/A And 5L/B Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 3 |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 20.96 |
| Ship length (cm) | 3.89 |
| Ship width (cm) | 20.96 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Bore Type | Overall Length | Face Width | Type | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1028026 | 3.15" | 7/8" | Finished | 1 7/32" | 13/16" | Type 2 | Cast Iron | - | €56.01 | |
 |
1028000 | 3.15" | 5/8" | Finished | 1 7/32" | 13/16" | Type 2 | Cast Iron | - | €56.01 | |
 |
1027853 | 2 1/2" | 7/8" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | €57.02 | |
 |
1027838 | 2 1/2" | 5/8" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | €57.02 | |
 |
1027796 | 2 2/5" | 1/2" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | €70.41 | |
 |
1027820 | 2 1/2" | 1/2" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | €67.22 | |
 |
1027960 | 2.95" | 5/8" | Finished | 1 7/32" | 13/16" | Type 2 | Cast Iron | - | €62.74 |
