BROWNING 1023118 3MV5V118R V-Belt Sheave, Multiple, Variable Pitch, Bushed Bore, 3 Groove, Cast Iron
Get it by Friday, Dec 19
€1,957.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Type | R1 |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 5/8" |
| Max. Face Width | 3 1/4" |
| Min. Belt Width | 5/8" |
| Min. Face Width | 3 1/4" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 11 4/5" |
| Overall Length | 3 25/32" |
| Pitch Dia. | 11.7" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
| Weight | 17.475 Kg |
Shipping Info:
| Ship weight (kg) | 17.06 |
| Ship height (cm) | 29.97 |
| Ship length (cm) | 9.6 |
| Ship width (cm) | 29.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1022771 | 8 1/2" | 1 1/8" to 3 3/4" | 3 25/32" | Type 13 Web | Bushed | Cast Iron | 3 1/4" | €1,219.08 | |
 |
1022995 | 10.3" | 1 1/8" to 3 3/4" | 3 25/32" | Type 13 Web | Bushed | Cast Iron | 3 1/4" | €1,775.34 | |
 |
1023415 | 16" | 1 1/8" to 3 3/4" | 3 25/32" | Type 13 Arm | Bushed | Cast Iron | 3 1/4" | €2,488.15 | |
 |

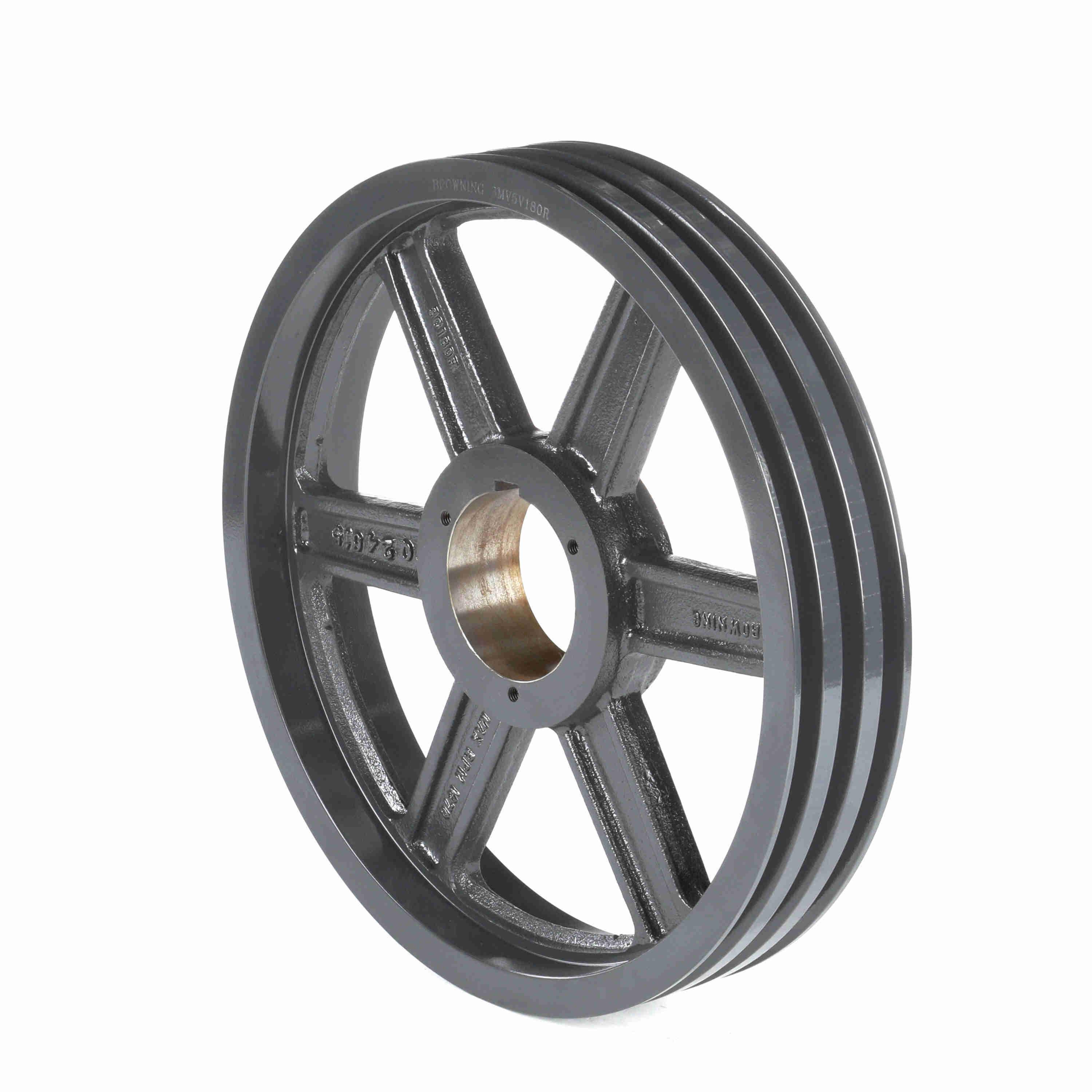

1023472 | 18" | 1 1/8" to 3 3/4" | 3 25/32" | Type 13 Arm | Bushed | Cast Iron | 3 1/4" | €4,933.61 | |
 |
1023597 | 21 1/5" | 1 11/16" to 4 1/4" | 4 3/4" | Type 13 Arm | Bushed | Cast Iron | 3 1/4" | €2,615.37 | |
 |

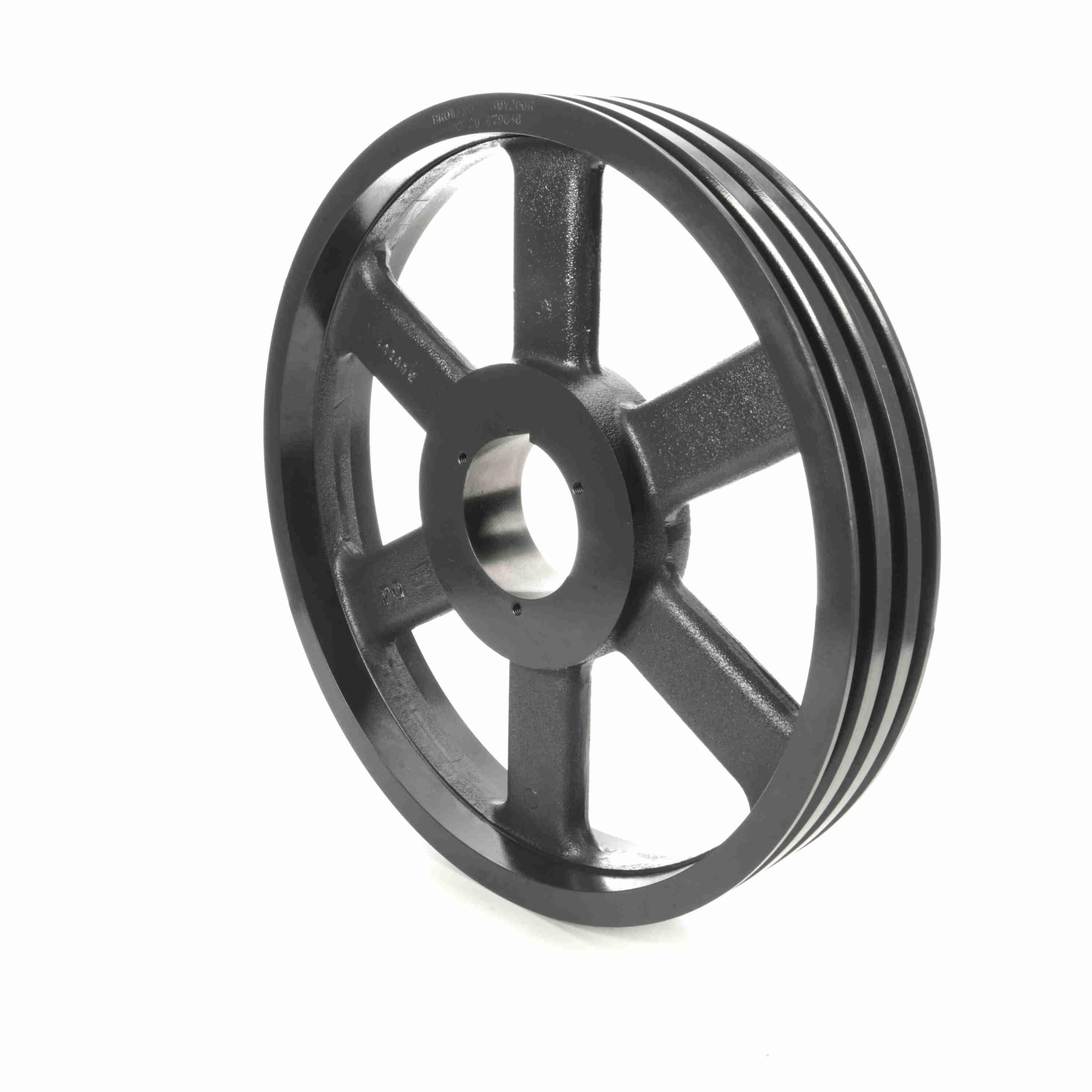

1023530 | 20" | 1 1/8" to 3 3/4" | 3 25/32" | Type 13 Arm | Bushed | Cast Iron | 3 1/4" | €5,808.82 | |
 |

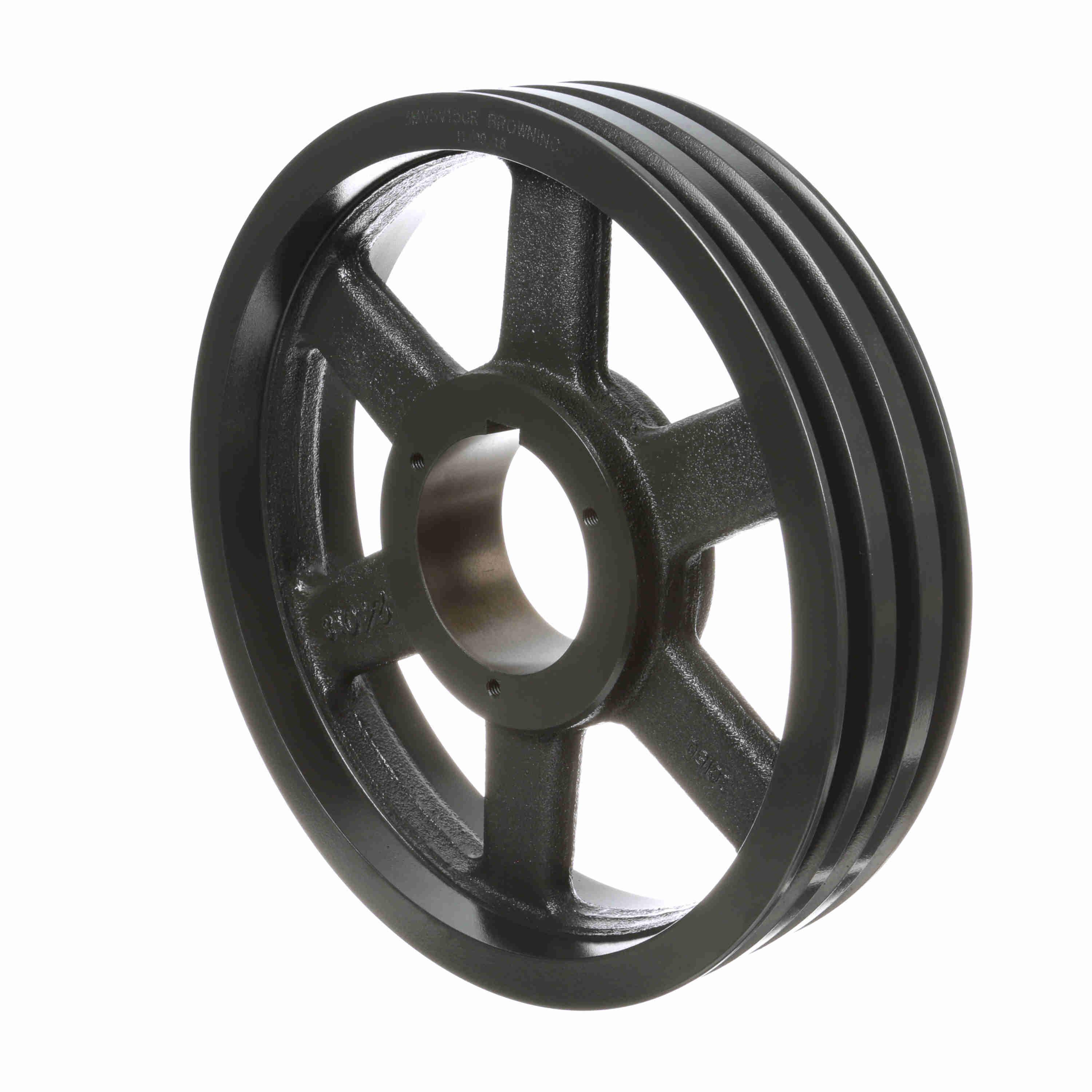

1023357 | 15" | 1 1/8" to 3 3/4" | 3 25/32" | Type 13 Arm | Bushed | Cast Iron | 3 1/4" | €2,689.49 |
