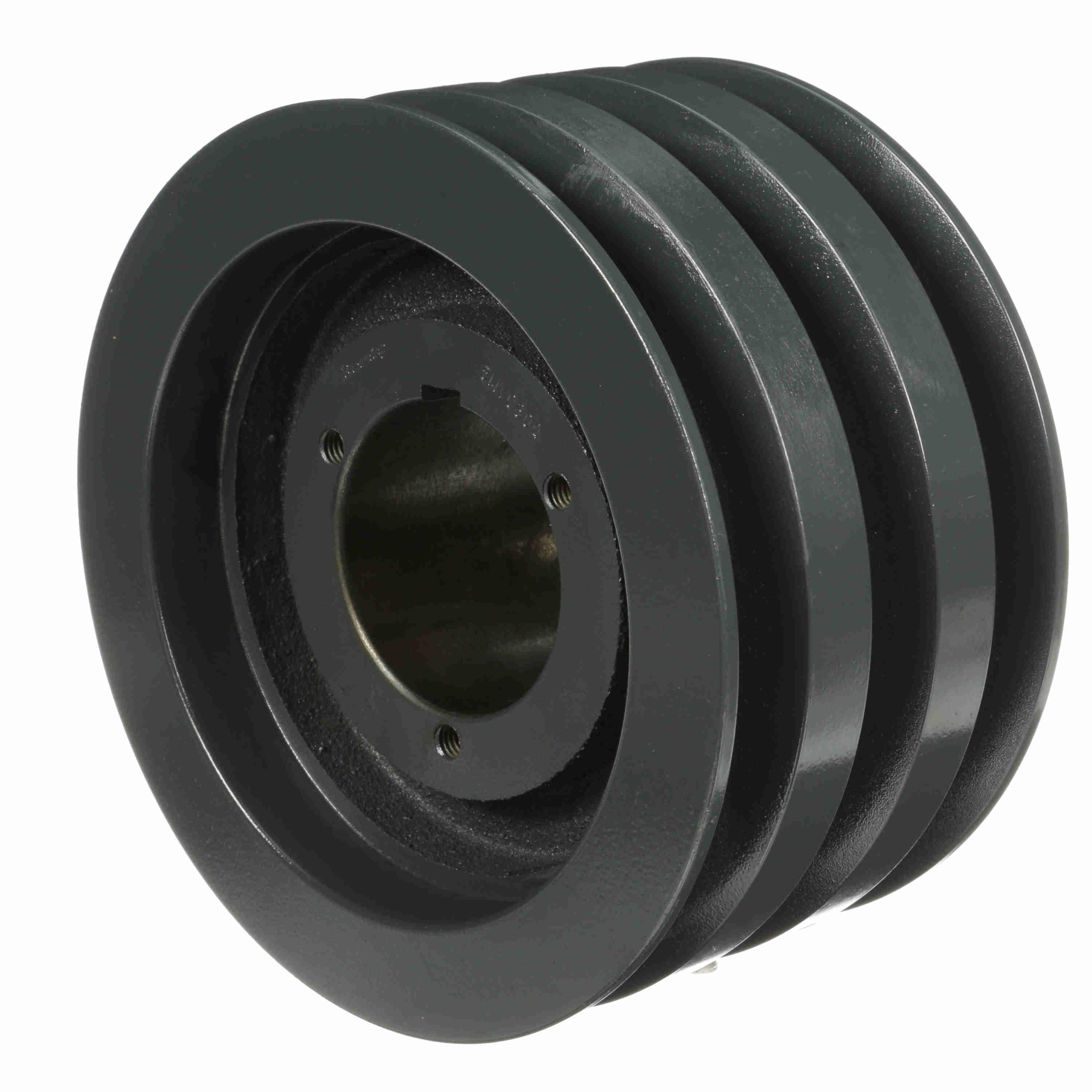

BROWNING 1022045 3MVC80Q V-Belt Sheave, Multiple, Variable Pitch, Bushed Bore, 3 Groove, Cast Iron, 8.4 in OD, 1 to 2-5/8 in Bore Dia, 8.4 in Pitch Dia
Get it by Monday, May 18
€2,771.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Bushed |
| Bushing Type | Q2 |
| Face Width | 4 9/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 7/8" |
| Max. Face Width | 4.563" |
| Max. Pitch Dia. | 8" |
| Min. Belt Width | 7/8" |
| Min. Face Width | 4.563" |
| Min. Pitch Dia. | 8" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 8 2/5" |
| Overall Length | 4 11/16" |
| Pitch Dia. | 8 2/5" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
Shipping Info:
| Ship weight (kg) | 15.24 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 23.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1020684 | Split Taper | 10.06" | 1" | 4 7/16" to 5 1/32" | 6 9/32" | - | Cast Iron | €3,311.00 | |
 |
1020866 | Bushed | 10 14/25" | 1" to 2 5/8" | 4 7/16" to 5 1/32" | 6 9/32" | - | Cast Iron | €3,783.38 | |
 |
1021039 | Bushed | 12.03" | 1" to 2 5/8" | 4 7/16" to 5 1/32" | 6 9/32" | - | Cast Iron | €3,644.06 | |
|
1021161 | Bushed | 13.06" | 1" to 2 5/8" | 4 7/16" to 5 1/32" | 6 9/32" | - | Cast Iron | €8,423.78 | |
 |
1022284 | Bushed | 12 2/5" | 1" to 2 5/8" | 4 9/16" | 4 11/16" | Type 15 Arm | Cast Iron | €3,423.03 | |
 |
1022433 | Bushed | 18 2/5" | 1 1/8" to 3 3/4" | 4.563" | 4 9/16" | - | Cast Iron | €3,444.62 | |
|
1022581 | Bushed | 30 2/5" | 1 3/8" to 3 5/8" | 4 9/16" | 4 9/16" | Type 13 Arm | Cast Iron | €9,236.54 |
