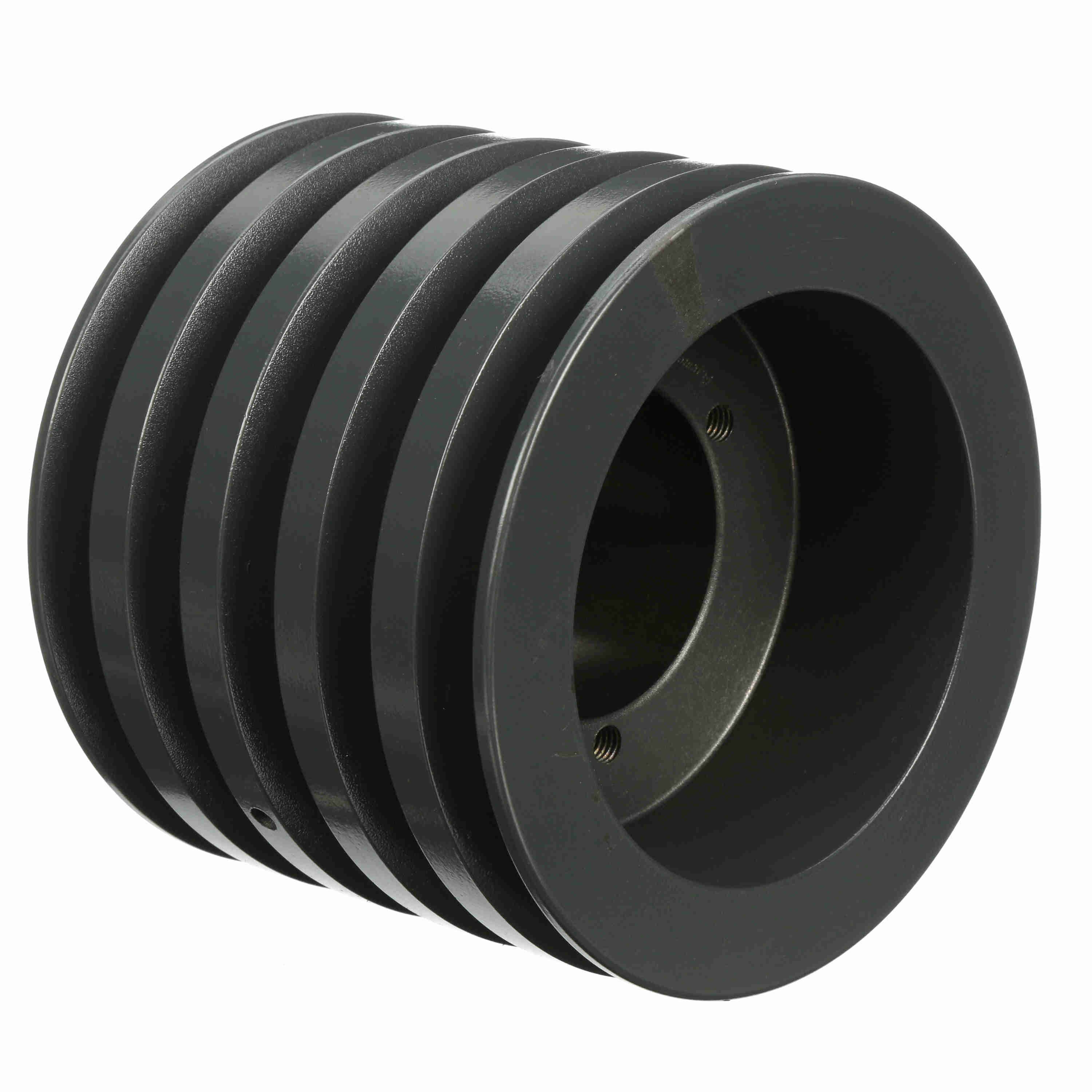

BROWNING 1021450 5MVB64Q V-Belt Sheave, Multiple, Variable Pitch, Bushed Bore, 5 Groove, Cast Iron
6 3/4"
Get it by Monday, Dec 22
€2,235.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Bushed |
| Bushing Type | Q2 |
| Face Width | 5 1/2" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 5 1/2" |
| Max. Pitch Dia. | 6 2/5" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 5 1/2" |
| Min. Pitch Dia. | 6" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 6 3/4" |
| Overall Length | 5 1/2" |
| Pitch Dia. (a) | 6 1/5" |
| Pitch Dia. (b) | 6.7" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
| Weight | 11.991 Kg |
Shipping Info:
| Ship weight (kg) | 12.02 |
| Ship height (cm) | 16 |
| Ship length (cm) | 19.56 |
| Ship width (cm) | 19.56 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1021344 | 5.35" | 1" to 2 5/8" | 6 17/32" | Type 5 | Bushed | Cast Iron | 5 1/2" | €930.89 | |
 |
1021377 | 5 3/4" | 1" to 2 5/8" | 6 17/32" | Type 5 | Bushed | Cast Iron | 5 1/2" | €998.20 | |
|
1021484 | 7.35" | 1 3/8" to 3 5/8" | 5 29/32" | Type 13 Web | Bushed | Cast Iron | 5 1/2" | €1,657.96 | |
 |
1021583 | 8.95" | 1 3/8" to 3 5/8" | 5 29/32" | Type 13 Web | Bushed | Cast Iron | 5 1/2" | €2,598.82 | |
 |
1021641 | 9 3/4" | 1 3/8" to 3 5/8" | 5 29/32" | Type 13 Arm | Bushed | Cast Iron | 5 1/2" | €2,107.81 | |
 |
1021682 | 11.35" | 1 3/8" to 3 5/8" | 5 29/32" | Type 13 Arm | Bushed | Cast Iron | 5 1/2" | €2,560.55 | |
|
1021765 | 13.95" | 1 3/8" to 3 5/8" | 5 29/32" | Type 13 Arm | Bushed | Cast Iron | 5 1/2" | €4,024.82 |
