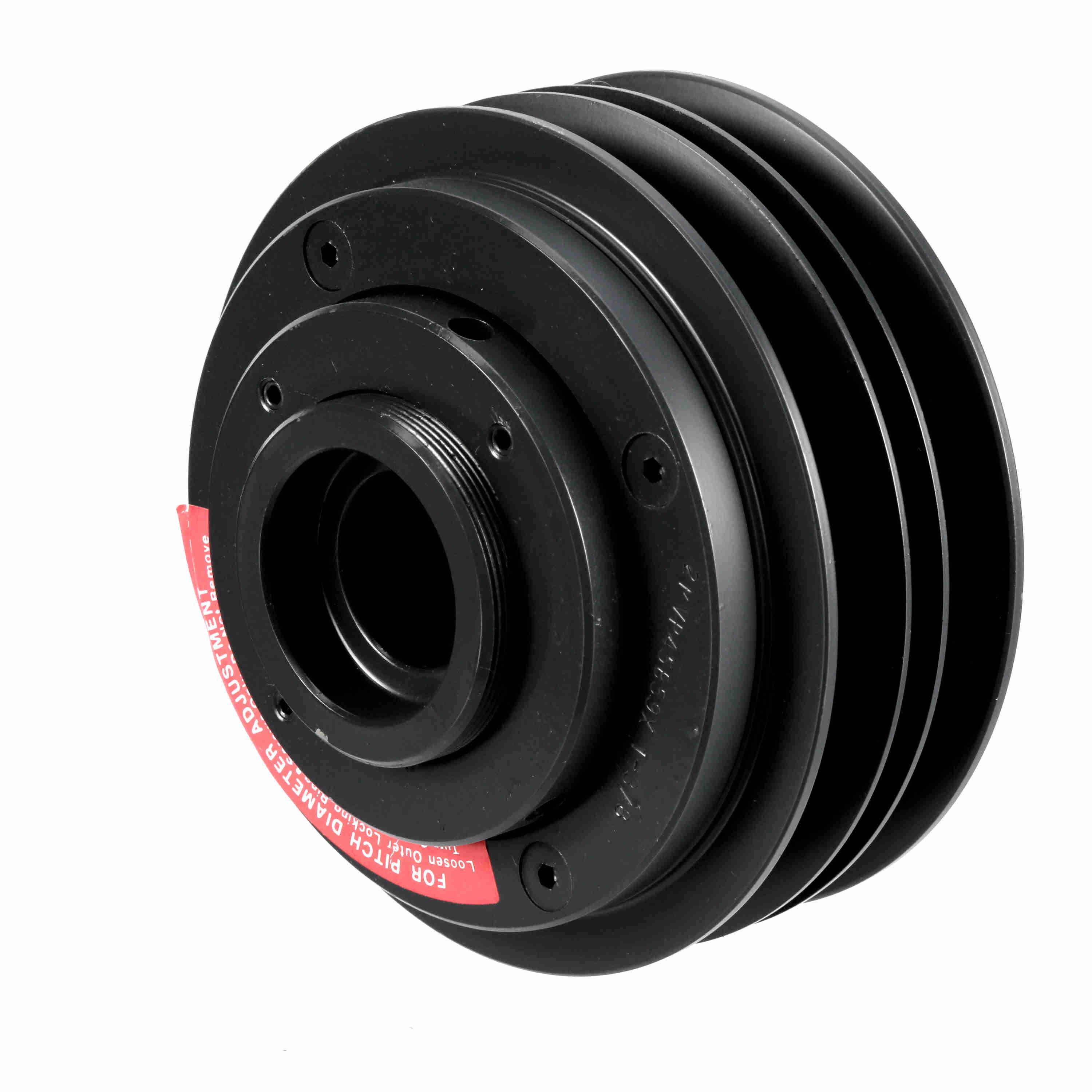

BROWNING 1020015 2MVP45B59X 1 3/8 V-Belt Sheave, Multiple, Variable Pitch, Finish Bore, 2 Groove, Cast Iron
Get it by Tuesday, Dec 23
€1,409.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 1 3/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 1/16" to 1 15/16" |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 2.313" |
| Max. Pitch Dia. | 5.9" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 1.938" |
| Min. Pitch Dia. | 4 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 6.18" |
| Overall Length | 3 5/8" |
| Pitch Dia. (a) | 4.6" to 5.7" |
| Pitch Dia. (b) | 4 4/5" to 6 1/5" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Weight | 14.3 lbs. |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 15.7 |
| Ship length (cm) | 9.22 |
| Ship width (cm) | 15.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Face Width | Overall Length | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
1020007 | Finished | 6.18" | 1 1/8" | 1 1/16" to 1 15/16" | 3 5/8" | Cast Iron | €2,015.60 | |
 |
1020171 | Finished | 6 17/25" | 1 5/8" | 1 1/16" to 1 15/16" | 3 5/8" | Cast Iron | €1,485.10 | |
 |
1020296 | Finished | 7.18" | 1 1/8" | 1 1/16" to 1 15/16" | 3 5/8" | Cast Iron | €2,269.61 | |
 |
1021153 | Bushed | 13.06" | 1" to 2 5/8" | 2 25/32" to 3 3/8" | 4 5/8" | Cast Iron | €3,521.95 | |
 |
1020817 | Bushed | 9 17/25" | 1" to 2 5/8" | 1 1/16" to 1 15/16" | 3 5/8" | Cast Iron | €1,550.18 | |
 |
1020437 | Bushed | 7 17/25" | 3/4" to 1 3/4" | 1 1/16" to 1 15/16" | 3 5/8" | Cast Iron | €1,273.89 | |
 |
1020676 | Split Taper | 10.06" | 1" | 2 25/32" to 3 3/8" | 4 5/8" | Cast Iron | €2,390.36 |
