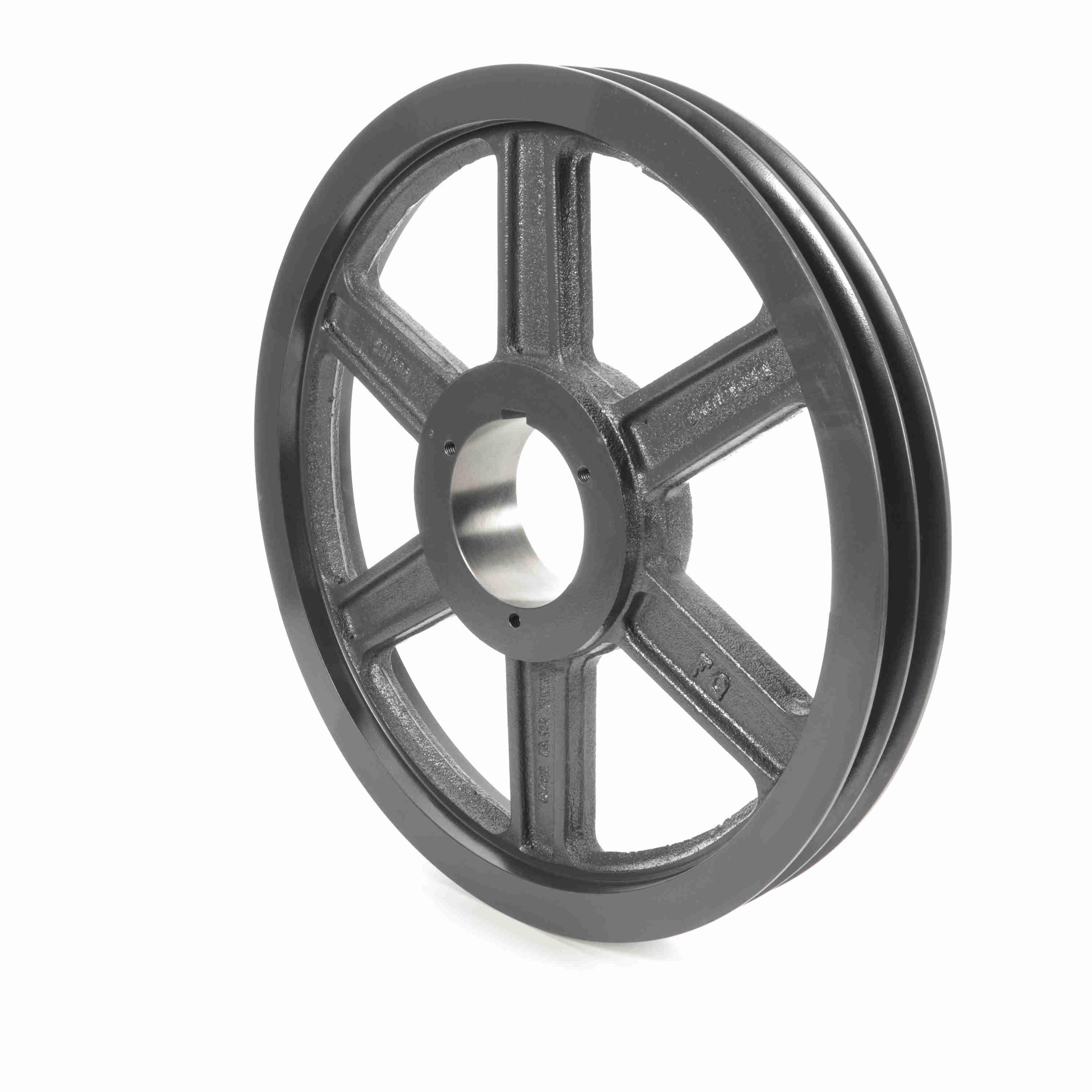

BROWNING 1013226 2C180R V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron
Get it by Tuesday, Dec 23
€1,423.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 2 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 18" |
| Min. Pitch Dia. | 18" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 18 2/5" |
| Overall Length | 3 9/32" |
| Pitch Dia. | 18 2/5" |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Arm |
| Weight | 20.875 Kg |
Shipping Info:
| Ship weight (kg) | 20.69 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 47.63 |
| Ship width (cm) | 47.63 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1012962 | 14 2/5" | - | 3 9/32" | Type 13 Arm | Split Taper | Cast Iron | 2 1/4" | €1,119.65 | |
 |
1013648 | 27 2/5" | 1.13" to 3.75" | 3 9/32" | Type 13 Arm | Split Taper | Cast Iron | 2 1/4" | €2,052.16 | |
 |
1011949 | 6" | 1/2" to 1 3/4" | 2 1/2" | Type 13 Web | Split Taper | Cast Iron | 2 1/4" | €626.49 | |
 |
1011980 | 6 2/5" | 3/4" to 2 11/16" | 2 25/32" | Type 13 Web | Split Taper | Cast Iron | 2 1/4" | €645.98 | |
|
1013903 | 36 2/5" | 1.13" to 3.75" | 3 9/32" | Type 13 Arm | Split Taper | Cast Iron | 2 1/4" | €2,482.70 |
