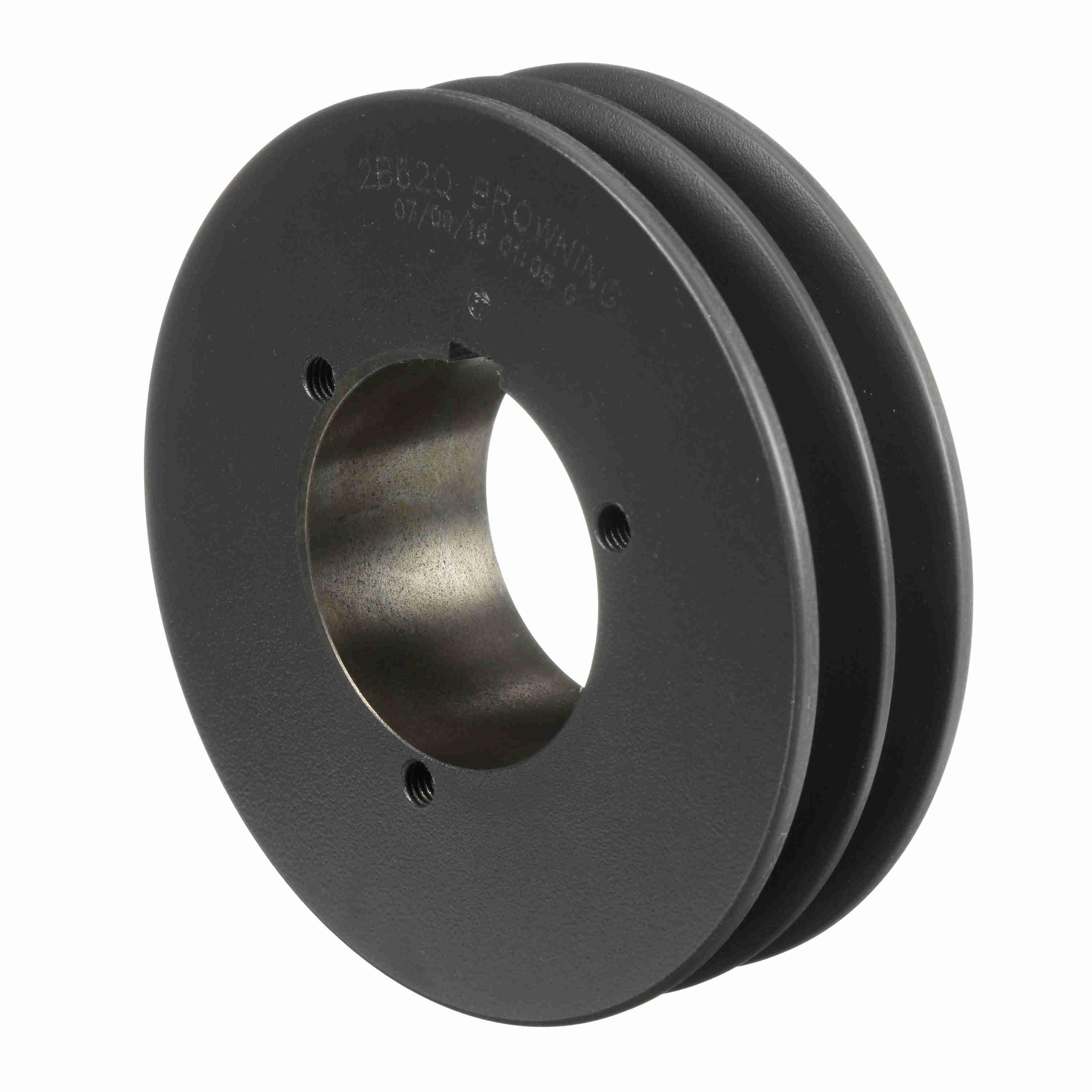

BROWNING 1010610 2B62Q V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron, 6.55 in OD, 3/4 to 2-11/16 in Bore Dia, 6 in A/6-1/2 in B Pitch Dia, Q1 Bushing Type
Item: BA3TBJModel: 1010610Cross Ref: 2B62Q
7 In Stock
Ships within 2 days via
€277.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 1 3/4" |
| Hub Projection | 27/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 6 1/5" |
| Min. Pitch Dia. | 5 4/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 6.55" |
| Overall Length | 2 53/64" |
| Pitch Dia. | 6" |
| Pitch Dia. (b) | 6 1/2" |
| Product Datasheet | browning-1097849.pdf |
| Series | B Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type 5 |
Shipping Info:
| Ship weight (kg) | 4.39 |
| Ship height (cm) | 16.64 |
| Ship length (cm) | 7.19 |
| Ship width (cm) | 16.64 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Min. Pitch Dia. | Max. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1010446 | 5 2/5" | 3/4" to 2 11/16" | Type 5 | 5 1/5" | 5 3/5" | 5.9" | Q1 | 27/32" | €249.41 | |
 |
1011337 | 15 4/5" | 1 1/8" to 3 3/4" | Arm Type 16 | 15 3/5" | 16" | 16.3" | R1 | 1/16" | €498.50 | |
 |
1011386 | 18 1/5" | 1 1/8" to 3 3/4" | Arm Type 16 | 18" | 18 2/5" | 18.7" | R1 | 1/16" | €608.42 | |
 |
1011485 | 19 4/5" | 1 1/8" to 3 3/4" | Arm Type 16 | 19 1/2" | 20" | 20.3" | R1 | 1/16" | €791.17 | |
 |
1010396 | 5 1/5" | 3/4" to 2 11/16" | Type 5 | 5" | - | 5.7" | Q1 | 27/32" | €236.73 | |
 |
1011717 | 29 4/5" | 1 1/8" to 3 3/4" | Arm Type 16 | 29 1/2" | 30" | 30.3" | R1 | 1/16" | €1,956.03 | |
 |
1011600 | 24 4/5" | 1 1/8" to 3 3/4" | Arm Type 16 | 24 1/2" | 25" | 25.3" | R1 | 1/16" | €1,249.59 |
