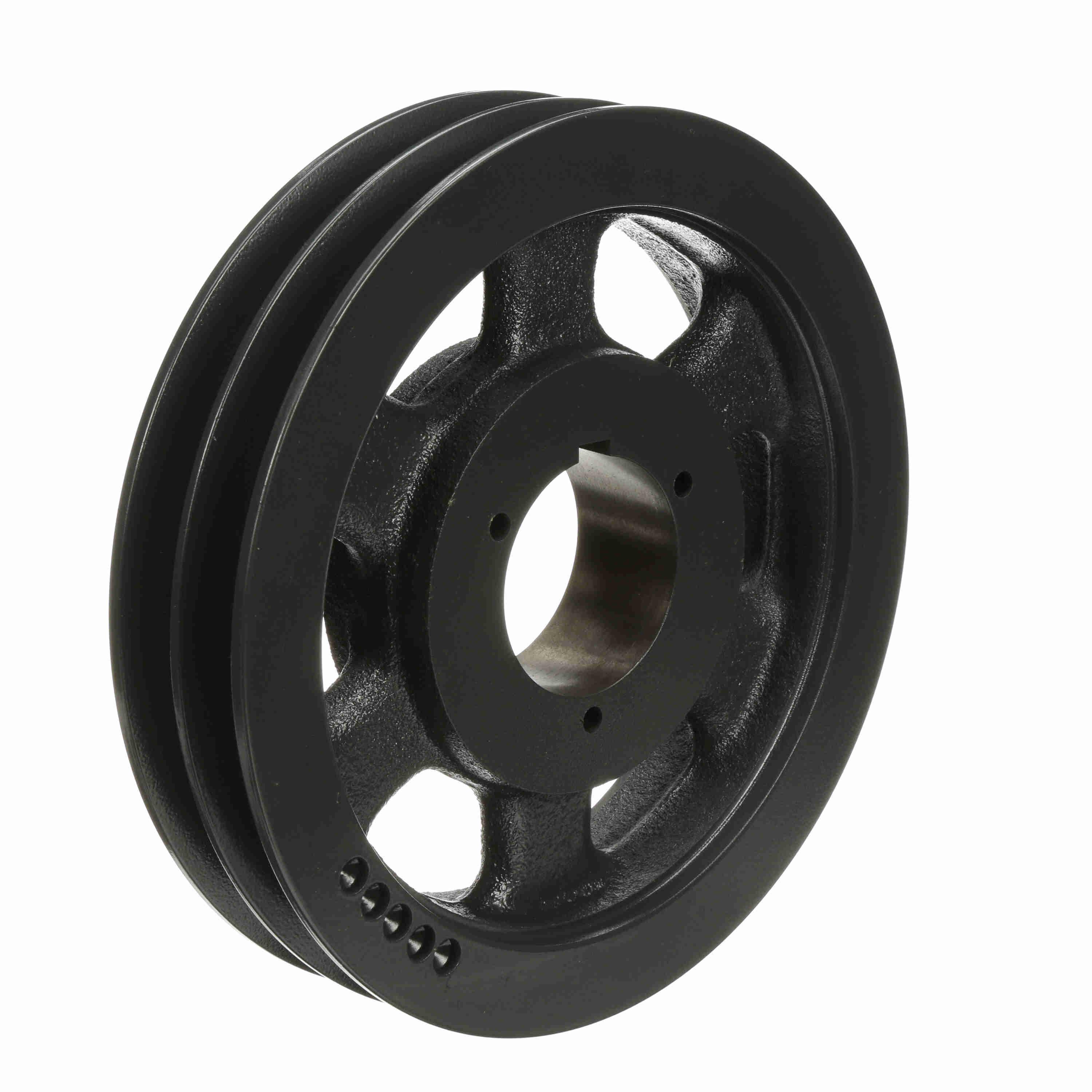

BROWNING 1009869 2TC102 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron
10 3/5"
Get it by Tuesday, Dec 23
€831.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 2 1/4" |
| Hub Projection | 19/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 10 1/5" |
| Min. Pitch Dia. | 10 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 10 3/5" |
| Overall Length | 3 5/64" |
| Pitch Dia. | 10 3/5" |
| Suitable For Use With | Gripbelt C Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Arm Type 13 |
| Weight | 21.3 lbs. |
Shipping Info:
| Ship weight (kg) | 9.41 |
| Ship height (cm) | 26.92 |
| Ship length (cm) | 7.82 |
| Ship width (cm) | 26.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Overall Length | Bore Type | Material | Bore Dia. | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1009984 | 11 2/5" | Type 13 Arm | 3 1/32" | Split Taper | Cast Iron | 3/4" to 2 11/16" | 2 1/4" | €835.13 | |
 |
1009752 | 10 1/5" | Type 13 Arm | 3 1/32" | Split Taper | Cast Iron | 3/4" to 2 11/16" | 2 1/4" | €1,152.42 | |
 |
1009489 | 9 1/5" | Type 13 Web | 3 1/32" | Split Taper | Cast Iron | 3/4" to 2 11/16" | 2 1/4" | €545.16 | |
 |
1010339 | 24 2/5" | Type 13 Arm | 3 1/32" | Split Taper | Cast Iron | 3/4" to 2 11/16" | 2 1/4" | €2,534.23 | |
 |
1009430 | 9" | Type 13 Web | 3 1/32" | Split Taper | Cast Iron | 3/4" to 2 11/16" | 2 1/4" | €548.63 | |
 |
1009596 | 9 3/5" | Type 13 Web | 3 1/32" | Split Taper | Cast Iron | 3/4" to 2 11/16" | 2 1/4" | €736.55 | |
 |
1009265 | 8 2/5" | Type 13 Web | 3 1/32" | Split Taper | Cast Iron | 3/4" to 2 11/16" | 2 1/4" | €524.85 |
