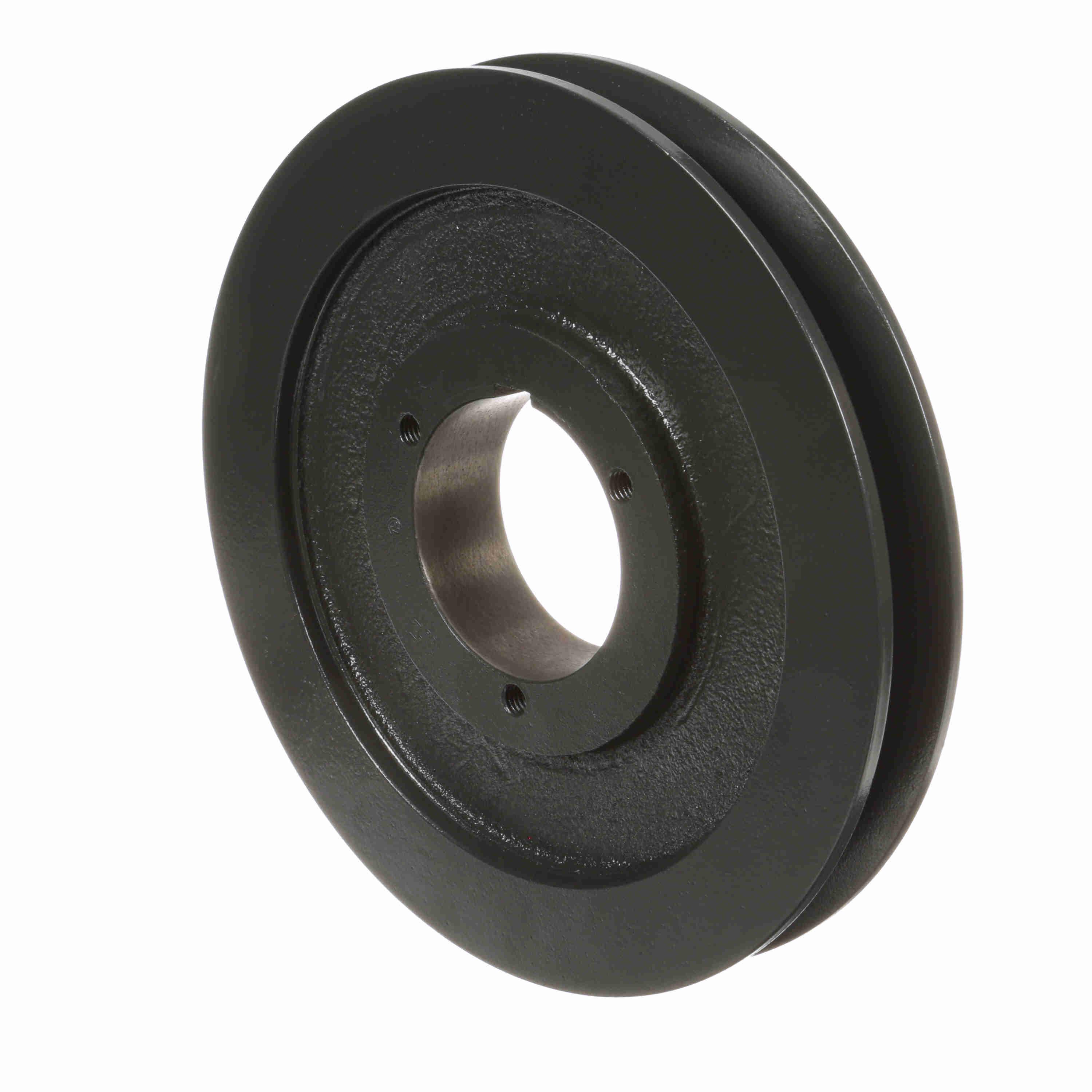

BROWNING 1009539 1TC90 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
9 2/5"
Get it by Tuesday, Dec 23
€624.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 1 1/4" |
| Hub Dia. | 4 1/8" |
| Hub Projection | 27/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9" |
| Min. Pitch Dia. | 9" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 9 2/5" |
| Overall Length | 2 47/64" |
| Pitch Dia. | 9 2/5" |
| Series | TC Series |
| Suitable For Use With | C Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type 10 Web |
| Weight | 11.4 lbs. |
Shipping Info:
| Ship weight (kg) | 5.37 |
| Ship height (cm) | 23.88 |
| Ship length (cm) | 6.93 |
| Ship width (cm) | 23.88 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Overall Length | Type | Bore Type | Material | Bore Dia. | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3465069 | 9 1/5" | 2 47/64" | - | Split Taper | Cast Iron | 3/4" to 2 11/16" | 1 1/4" | €500.42 | |
 |
3465085 | 9 4/5" | 2 53/64" | - | Split Taper | Cast Iron | 3/4" to 2 11/16" | 1 1/4" | €1,078.14 | |
 |
1010263 | 20 2/5" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 3/4" to 2 11/16" | 1 1/4" | €2,377.43 | |
 |
1009257 | 8 2/5" | 2 47/64" | Type 10 Web | Split Taper | Cast Iron | 3/4" to 2 11/16" | 1 1/4" | €592.05 | |
 |
1010149 | 13 2/5" | 2 53/64" | Arm Type 16 | Split Taper | Cast Iron | 3/4" to 2 11/16" | 1 1/4" | €1,091.68 | |
 |
1009315 | 8 3/5" | 2 47/64" | Type 10 Web | Split Taper | Cast Iron | 3/4" to 2 11/16" | 1 1/4" | €576.96 | |
 |
3465044 | 8 1/5" | 2 47/64" | - | Split Taper | Cast Iron | 3/4" to 2 11/16" | 1 1/4" | €712.16 |
