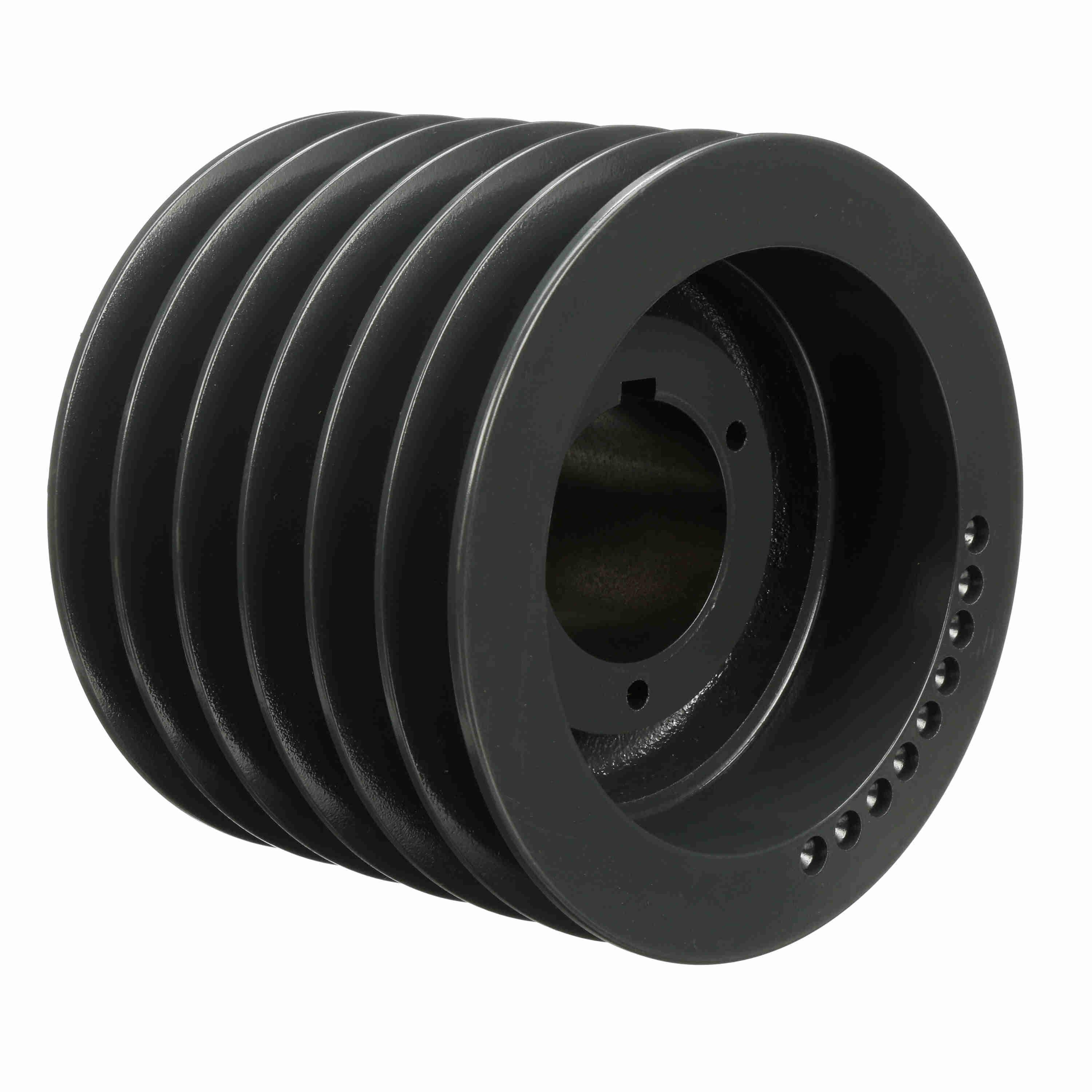

BROWNING 1009034 6TC70 V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron, 7.4 in OD, 1 to 2-5/8 in Bore Dia, 7.4 in Pitch Dia, Q2 Bushing Type
Get it by Friday, Aug 14
€1,391.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Split Taper |
| Bushing Type | Q2 |
| Face Width | 6 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7" |
| Min. Pitch Dia. | 7" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 7 2/5" |
| Overall Length | 6 1/4" |
| Pitch Dia. | 7 2/5" |
| Series | TC Series |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
Shipping Info:
| Ship weight (kg) | 13.38 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 20.02 |
| Ship width (cm) | 20.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Material | Face Width | Bore Dia. | Belt Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1009307 | 8 2/5" | Type 15 Web | - | - | Cast Iron | 6 1/4" | 1" to 2 5/8" | - | €1,245.48 | |
 |
1009638 | 9 3/5" | Type 15 Web | - | - | Cast Iron | 6 1/4" | 1" to 2 5/8" | - | €1,730.93 | |
 |
1009588 | 9 2/5" | Type 15 Web | 9" | 9" | Cast Iron | 6 1/4" | 1" to 2 5/8" | C Series | €1,587.95 | |
 |
1009471 | 9" | Type 15 Web | 8 3/5" | 8 3/5" | Cast Iron | 6 1/4" | 1" to 2 5/8" | C Series | €1,470.71 | |
 |
1009521 | 9 1/5" | Type 15 Web | 8 4/5" | 8 4/5" | Cast Iron | 6 1/4" | 1" to 2 5/8" | C Series | €1,658.38 | |
 |
1010198 | 13 2/5" | Type 15 Arm | 13" | 13" | Cast Iron | 6 1/4" | 1" to 2 5/8" | C Series | €3,496.37 | |
 |
1009364 | 8 3/5" | Type 15 Web | - | - | Cast Iron | 6 1/4" | 1" to 2 5/8" | - | €2,393.98 |
