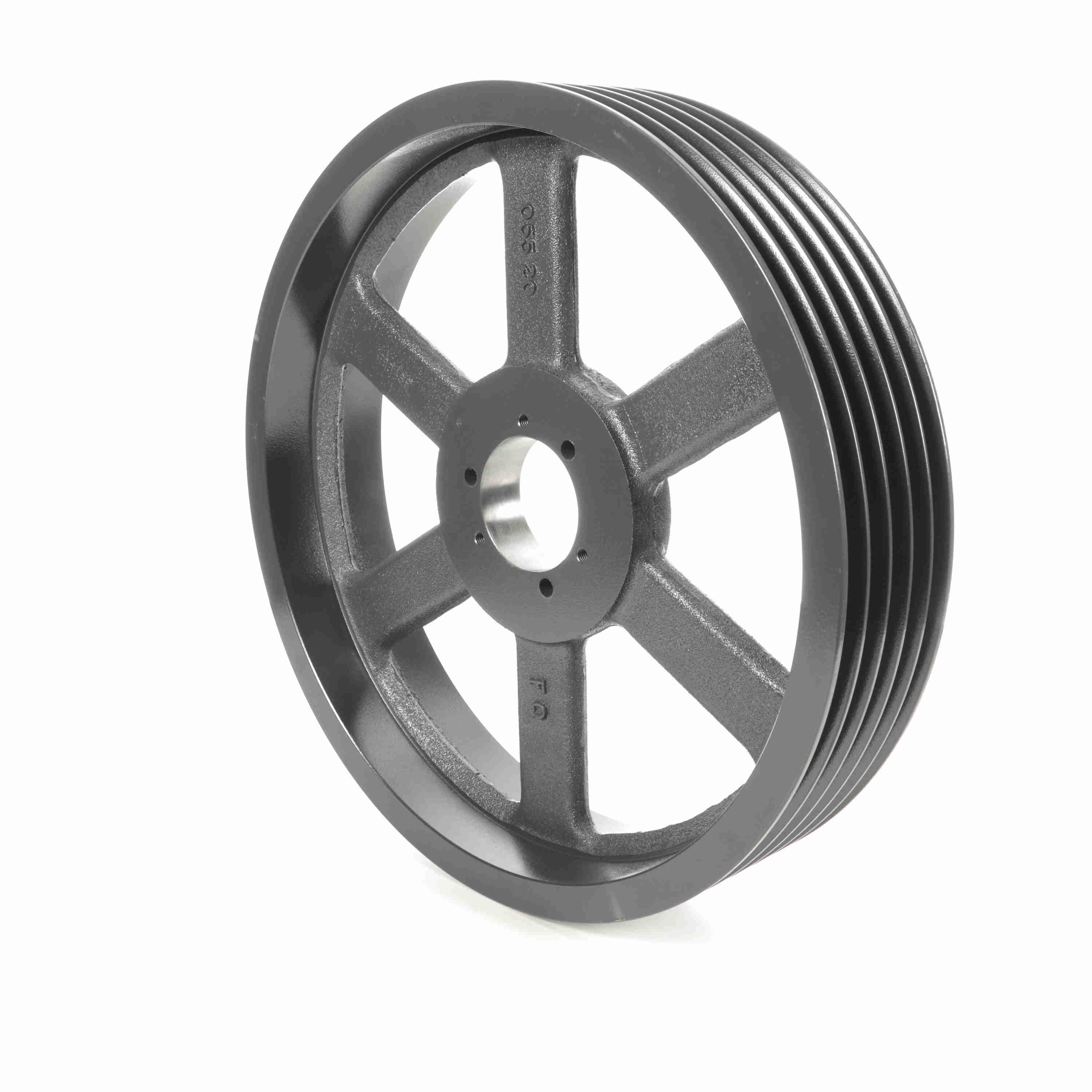

BROWNING 1005404 5B184SF V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron, 18-3/4 in OD, 1/2 to 2-15/16 in Bore Dia, SF Bushing Type, Type A Arm
18 3/4"
Get it by Friday, Aug 14
€1,469.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 18 2/5" |
| Min. Pitch Dia. | 18" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 18 3/4" |
| Overall Length | 18 3/4" |
| Pitch Dia. | 18 1/5" |
| Pitch Dia. (b) | 18.7" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Arm |
Shipping Info:
| Ship weight (kg) | 26.43 |
| Ship height (cm) | 47.63 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 47.63 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1005420 | 24 4/5" | 22/25" to 3 1/2" | Type A Arm | - | - | 25.3" | E | Cast Iron | €1,341.54 | |
 |
1005123 | 3 1/5" | 1/2" to 2" | Type E Solid | 3 2/5" | 3" | 3.7" | SD | Cast Iron | €464.28 | |
|
1005446 | 37 4/5" | 22/25" to 3 1/2" | Type A Arm | - | - | 38.3" | E | Cast Iron | €4,281.66 | |
 |
1005362 | 12 1/5" | 1/2" to 2 15/16" | Type A Arm | 12 2/5" | 12" | 12.7" | SF | Cast Iron | €1,087.78 | |
|
1005412 | 19 4/5" | 22/25" to 3 1/2" | Type A Arm | 20" | 19 3/5" | 20.3" | E | Cast Iron | €1,952.27 | |
 |
1005321 | 7 4/5" | 1/2" to 2 15/16" | Type A Web | 8" | 7 3/5" | 8.3" | SF | Cast Iron | €888.95 | |
 |
1005305 | 6 4/5" | 1/2" to 2 15/16" | Type A Solid | - | - | 7.3" | SF | Cast Iron | €597.00 |
