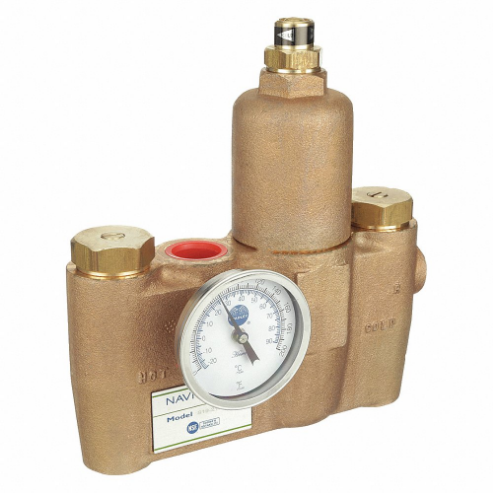

BRADLEY S19-2100 Thermostatic Mixing Valve
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,061.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mixing Valve |
| Body Material | Bronze |
| Cold Inlet Temp. | +120°F to +140°F |
| Flow Coefficient (cv) | 4.75 |
| Flow Rate | 26 GPM |
| For Media | Water |
| For Use With | Emergency Fixtures |
| Hot Inlet Temp. | 180°F |
| Includes Temperature Gauge | Yes |
| Inlet (cold) Connection Gender | Female |
| Inlet (cold) Connection Size | 3/4" |
| Inlet (cold) Connection Type | NPT |
| Inlet (hot) Connection Gender | Female |
| Inlet Connection Size | 3/4" |
| Inlet Connection Type | NPT |
| Inlet Temperature (cold) | 120 Degrees to 140 Degrees F |
| Inlet Temperature (hot) | 180 Degrees F |
| Inlet Type | FNPT |
| Max. Inlet (cold) Temperature | 140°F |
| Max. Inlet (hot) Temperature | 180°F |
| Max. Operating Pressure | 125 psi |
| Max. Outlet Operating Temperature | 95°F |
| Max. Pressure | 125 psi |
| Min. Inlet (cold) Temperature | 120°F |
| Min. Inlet (hot) Temperature | 120°F |
| Min. Operating Pressure | 45 psi |
| Min. Outlet Operating Temperature | 65°F |
| Outlet Connection Type | NPT |
| Outlet Size | 1" |
| Outlet Type | FNPT |
| Overall Height | 9 5/8" |
| Overall Width | 2 3/4" |
| Temp. Range | +65°F to +95°F |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 9.65 |
| Ship length (cm) | 28.45 |
| Ship width (cm) | 25.91 |
| HS code | 8481809015 |
| Country of Origin | US |
Product Details:
Bradley S19-2100 thermostatic mixing valve maintains water temperature by blending hot and cold water together, ensuring safety while taking a shower or washing hands.
Features:
- This mixing valve features an in-built cold water bypass to deliver cold flow and positive shut-off of hot flow when cold supply is lost.
- It is equipped with strainer check stops on inlets for removing unwanted suspended particles.
- This thermostatic mixing valve provides temperature control precision up to +/-3 degrees F.
- It comes with a cabinet having inlet / outlet knock-out holes to offer mounting flexibility and a cylinder lock for added safety.
- This mixing valve is lime and dirt-resistant.
- It is capable of withstanding pressures up to 125 PSI.
- This valve includes a dial thermometer.
Standards and Approvals:
- ANSI Z358.1
Frequently Asked Questions:
Q. What is the standard operating temperature range of Bradley S19-2100 thermostatic mixing valve?
A. This mixing valve can be operated at temperatures ranging from 65 to 90 degrees F.
Q. What is the advantage of a dial thermometer?
A. A dial thermometer measures and indicates the temperature of fluids passing through the valve.
Product Variants
| Product | Model | Flow Rate | Outlet Size | Outlet Type | Inlet Size | Overall Width | Overall Height | Temp. Range | Inlet Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

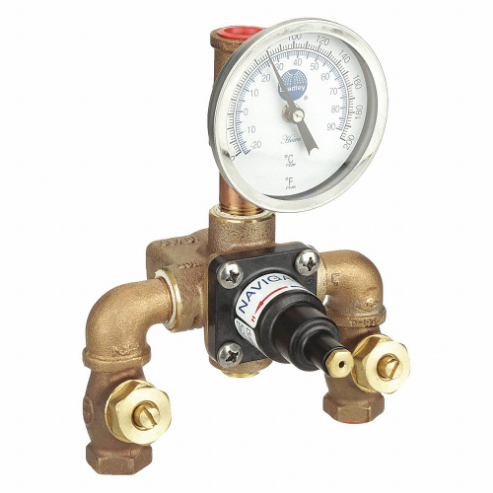

S19-2000 | 7 GPM | 1/2" | NPT | 1/2" | 5 1/2" | 8 3/8" | +65°F to +95°F | - | €1,283.28 | |
 |
S19-2200 | 54 GPM | 1 1/4" | FNPT | 1" | 3 1/2" | 12 1/4" | +65°F to +95°F | FNPT | €2,812.96 | |
 |
S19-2150 | - | - | - | - | - | - | - | - | €1,641.20 | |
 |
S19-2250 | - | - | - | - | - | - | - | - | €2,264.37 | |
 |
S19-2300 | - | - | - | - | - | - | - | - | €3,140.50 | |
 |
S19-2350 | - | - | - | - | - | - | - | - | €3,001.23 |
