BRADLEY S19-2000 Thermostatic Mixing Valve
Item: AE2MGYModel: S19-2000Cross Ref: 4YF93
7 In Stock
Ships within 2 days via
10.00% off
€1,154.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mixing Valve |
| Body Material | Bronze |
| Cold Inlet Temp. | +120°F to +140°F |
| Color | Yellow |
| Compatible With Brand | Bradley |
| Depth | 6 1/4" |
| Features | Adjustable Set Point Within Temperature Range, Checkstops On Inlets, Dial Thermometer, Dirt And Lime Resistant, Universal Mounting Capability |
| Flow Rate | 7 GPM |
| For Use With | Eyewashes |
| Height | 8 3/8" |
| Hot Inlet Temp. | 180°F |
| Inlet Pipe Gender | Female |
| Inlet Pipe Size | 1/2" |
| Inlet Pipe Thread Type | NPT |
| Inlet Size | 1/2" |
| Inlet Temperature (cold) | 120 Degrees to 140 Degrees F |
| Inlet Temperature (hot) | 180 Degrees F |
| Material | Brass |
| Max Flow Rate | 7 GPM |
| Max Inlet Pressure | 125 psi |
| Max Inlet Temp | 180°F |
| Max Water Output Temp | 95°F |
| Max. Pressure | 125 psi |
| Minimum Water Output Temperature | 65°F |
| Outlet Pipe Gender | Female |
| Outlet Pipe Size | 1/2" |
| Outlet Pipe Thread Type | NPT |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Overall Height | 8 3/8" |
| Overall Width | 5 1/2" |
| Products By Industry | General Approach |
| Series | EFX8 Series |
| Temp. Range | +65°F to +95°F |
| Valve Features | Cold Water Bypass, Emergency Shutoff |
| Width | 5 1/2" |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 18.29 |
| HS code | 8481803070 |
| Country of Origin | US |
Product Details:

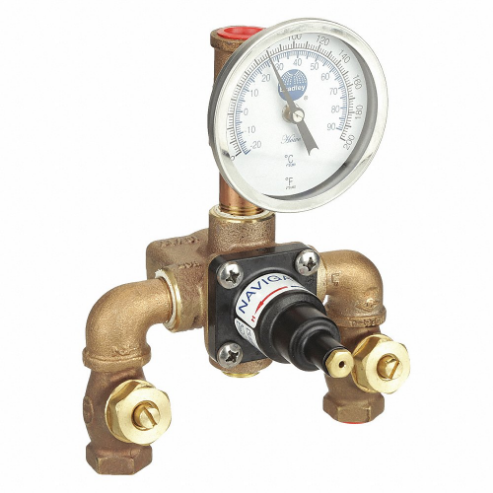

BRADLEYS19-2000 thermostatic mixing valve mixes hot and cold water to achieve a suitable flushing temperature. It is beneficial in showers, sinks, faucets, spigots and other plumbing fixtures.
Features:
- Bradley S19-2000 thermostat mixing valve has a built-in strainer check to prevent the exchange of cold and hot water supply.
- It has a dial thermometer for accurate temperature representation in both Celcius and Fahrenheit.
- This valve's universal mounting capability allows it to install in all the Bradley eyewash units.
- It can accommodate up to 3 eye washes or one eye / face wash unit.
Compatible Accessories:
- Bradley Wash Fountains: Bradley thermostatic mixing valve performs best when equipped with these wash fountains for perfect thermal flushing.
Standards and Approvals:
- ASSE 1071
- UPC
Frequently Asked Questions:
Q. What is the accuracy of temperature control of this valve?
A. It has a liquid-filled thermostat that maintains water temperature within +/-3 degrees Fahrenheit of the desired temperature.
Q. What is the maximum operating pressure of this thermostatic mixing valve?
A. 125 psi.
Q. What is the maximum flow rate this valve can regulate?
A. 7 GPM.
Product Variants
| Product | Model | Flow Rate | Outlet Size | Outlet Type | Inlet Size | Overall Width | Overall Height | Temp. Range | Inlet Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

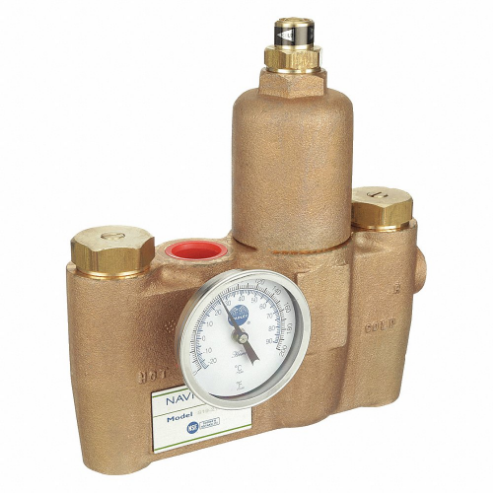

S19-2100 | 26 GPM | 1" | FNPT | - | 2 3/4" | 9 5/8" | +65°F to +95°F | FNPT | €2,290.23 | |
 |

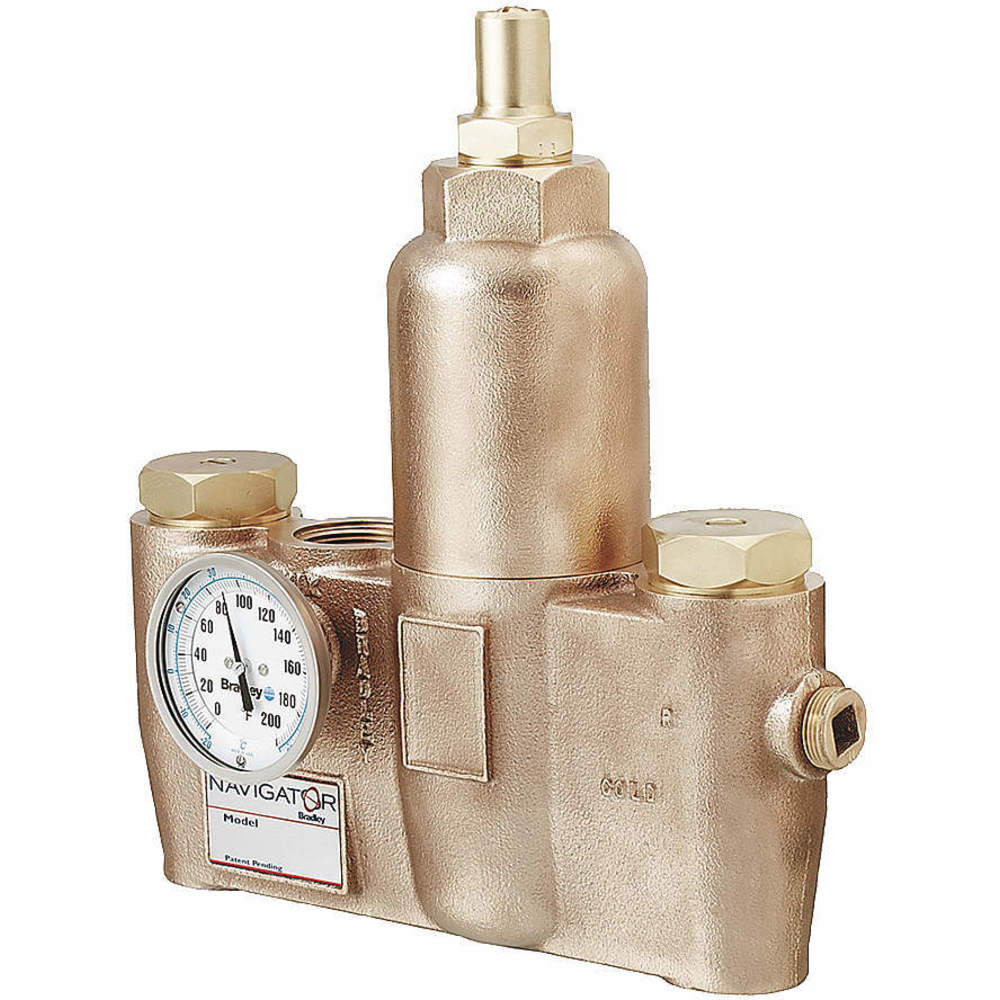

S19-2200 | 54 GPM | 1 1/4" | FNPT | 1" | 3 1/2" | 12 1/4" | +65°F to +95°F | FNPT | €2,812.96 | |
 |

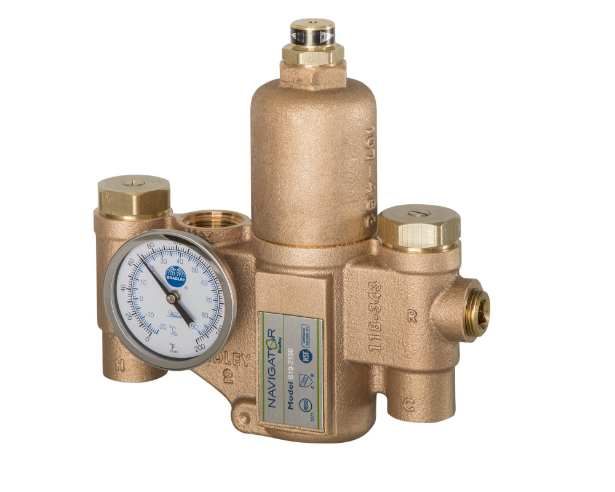

S19-2150 | - | - | - | - | - | - | - | - | €1,641.20 | |
 |

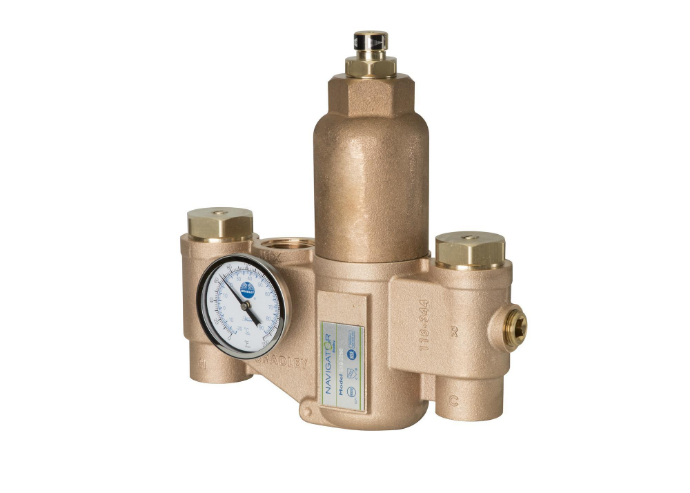

S19-2250 | - | - | - | - | - | - | - | - | €2,264.37 | |
 |

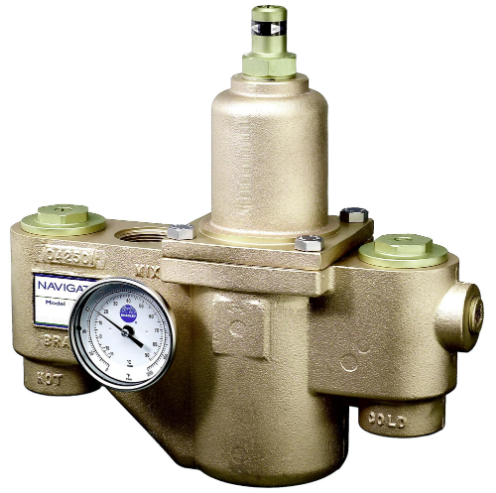

S19-2300 | - | - | - | - | - | - | - | - | €3,140.50 | |
 |

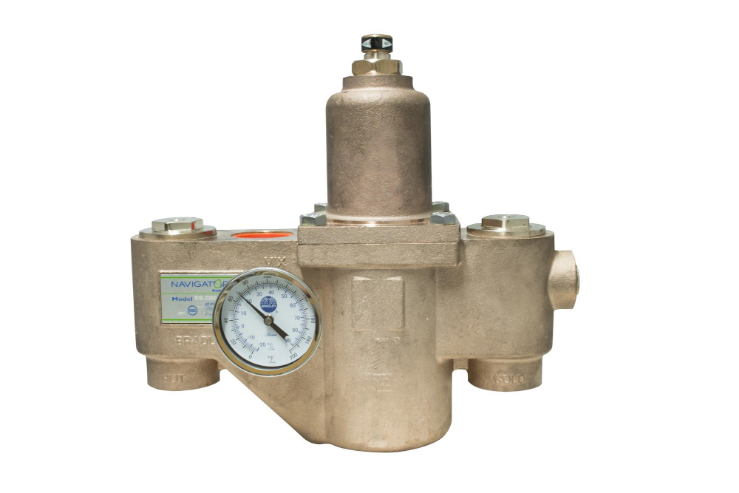

S19-2350 | - | - | - | - | - | - | - | - | €3,001.23 |
