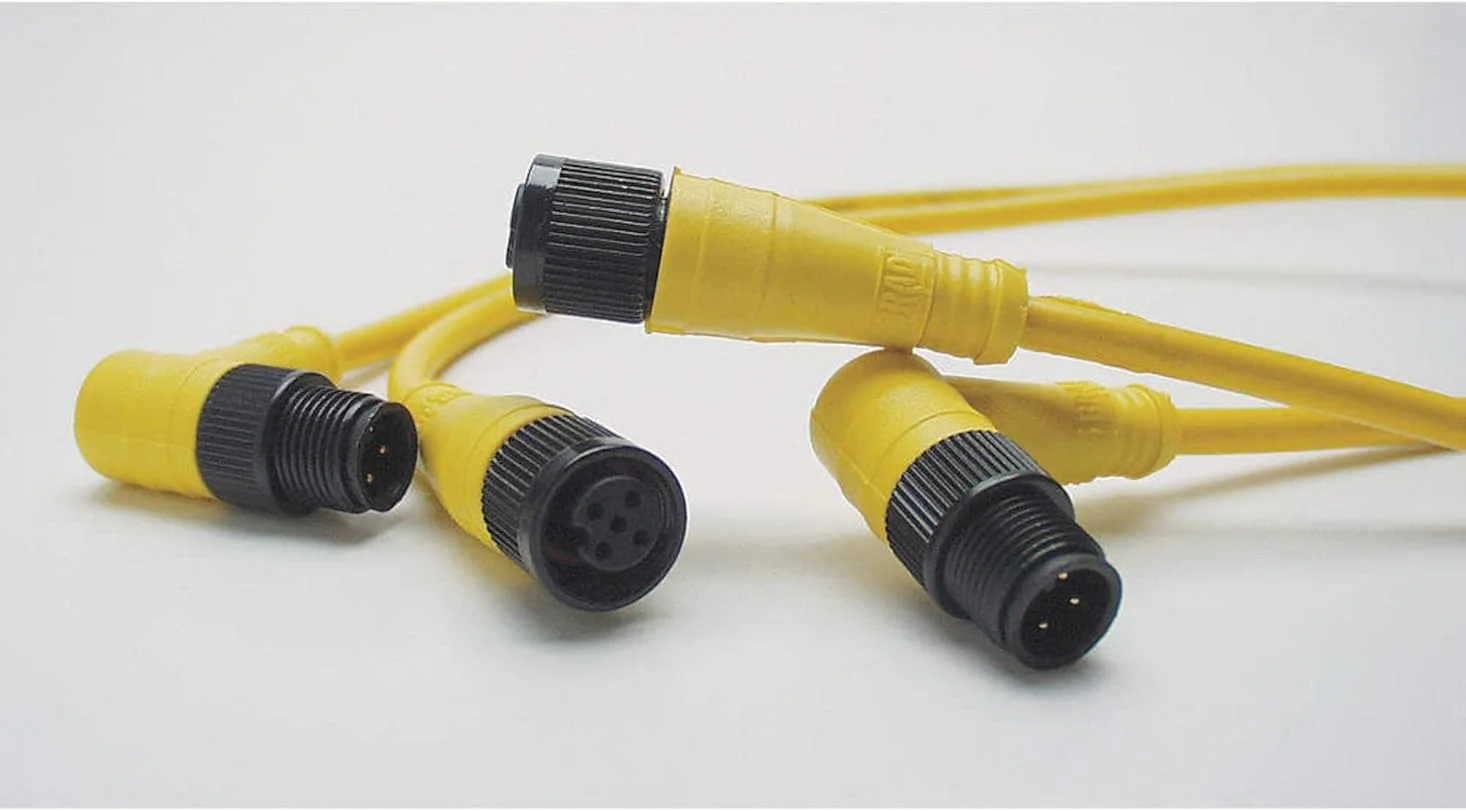

BRAD HARRISON 885030A09M020 Extension Cordset, M12 Thread, Male Straight X M12 Thread, Female Straight, 5 Pin, Yellow, PVC, 2 m Cable Length
Item: CP2AUPModel: 885030A09M020Cross Ref: 2EPJ8
7 In Stock
Ships within 2 days via
13.00% off
€48.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Extension Cordset |
| Application/rating - Nema | NEMA 6P |
| Assembly Type | Double End Cordset |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| Cable Length | 2m |
| Color | Yellow |
| Connector Body Material | PVC |
| Connector Type | Female Straight To Male Straight |
| Cordset Type | Double-Ended |
| Coupling Style | Threaded |
| End 1 Connection | M12 Male |
| End 1 Gender | Male |
| End 1 Gender And Plug End | Female Straight |
| End 1 Keyway | Single |
| End 1 Mounting Orientation | Straight |
| End 1 No. Of Pins | 5 |
| End 2 Connection | M12 Female |
| End 2 Connection Type | M12 |
| End 2 Gender | Female |
| End 2 Gender And Plug End | Male Straight |
| End 2 Keyway | Single |
| End 2 Mounting Orientation | Straight |
| End 2 No. Of Pins | 5 |
| End Connection Size 2 | M12 |
| End Connection Type 1 | M12 |
| Family Series | Brad Harrison Miscellaneous |
| Features | Highly Reliable Low Resistance Contact Design With Gold Over Nickel Plating |
| For Use With | Heavy Duty Industrial Environments |
| Gender | Female-Male |
| Gross Weight | 0 lbs. |
| Ip Rating | IP67, IP68 |
| Jacket Color | Yellow |
| Jacket Material | PVC |
| Keyway | Single |
| Keyway Type | Single |
| Led Indicator | No |
| Length | 2m |
| Max. Amps | 4A |
| Max. Amps Per Contact | 4A |
| Max. Operating Temp. | 221°F |
| Max. Voltage | 250/250V DC , 250V AC/DC |
| Min. Operating Temp. | -4°F |
| Nema Rating | NEMA 6P |
| No. Of Wires | 5 |
| Operating Temp. | -20°C to +105°C |
| Orientation | Straight To Straight |
| Plating Mating Material | Gold |
| Sub-brand | Micro-Change(R) |
| Wire/cable Type | UL 2661 |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Cable Length | End 1 Mounting Orientation | End Connection Type 2 | Wire Size | End 2 Connection | End 1 Connection | End 1 No. Of Pins | End 1 Gender | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 803006A09M020 | 2m | Straight | Bare Wire | 24 AWG | Bare Wire | M12 Male | 3 | Male | €28.61 | |
| 803006A09M050 | 5m | Straight | Bare Wire | 22 AWG | Bare Wire | M12 Male | 3 | Male | €37.63 | |
| 804006A09M020 | 2m | Straight | Bare Wire | 24 AWG | Bare Wire | M12 Male | 4 | Male | €29.60 | |
| 804006A09M050 | 5m | Straight | Bare Wire | 22 AWG | Bare Wire | M12 Male | 4 | Male | €41.85 | |
| 803007A09M050 | 5m | Right Angle | Bare Wire | 22 AWG | Bare Wire | M12 Male | 3 | Male | €38.08 | |
| 804007A09M020 | 2m | Right Angle | Bare Wire | 22 AWG | Bare Wire | - | 4 | Male | €26.63 | |
| 804007A09M050 | 5m | Right Angle | Bare Wire | 22 AWG | Bare Wire | M12 Male | 4 | Male | €37.28 |
