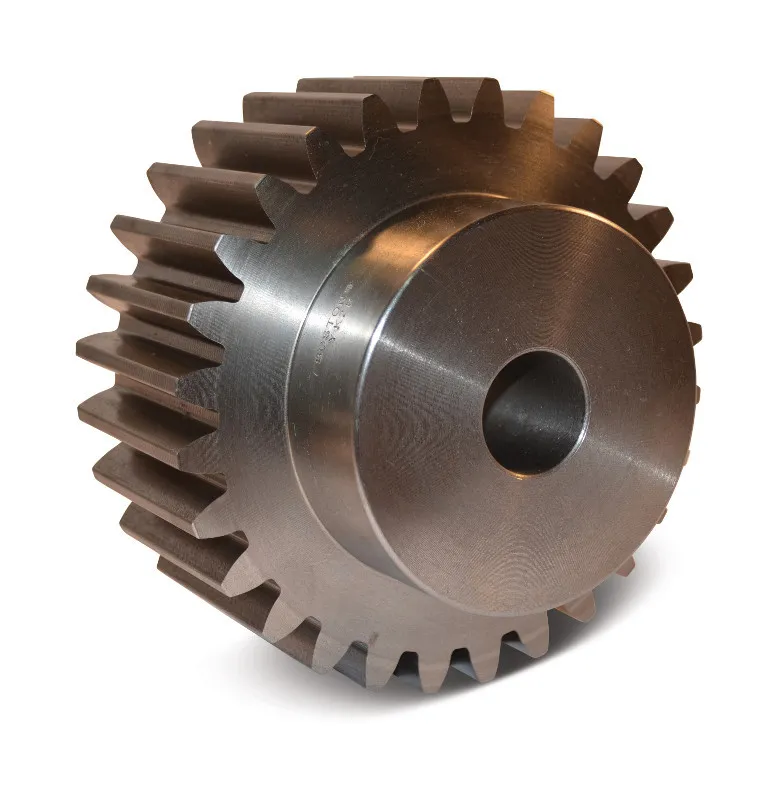

BOSTON GEAR YK50B Spur Gear, 5 Diamteral Pitch, 20 Deg. Pressure Angle, 50 Teeth, Cast Iron
€990.83 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1 1/4" |
| Bore Type | Minimum Plain Bore |
| Diametral Pitch | 5 |
| Face Width | 2 1/2" |
| Hardened Teeth | Without Hardened Teeth |
| Hub Dia. | 4" |
| Hub Projection | 1 1/4" |
| Key Way Size | No Keyway Or Set Screw |
| Keyway | No Kwy, Setscrew |
| Length Through Bore | 3 3/4" |
| Material | Cast Iron |
| Max. Rated Torque | 5304 N-m @ 300 RPM |
| Max. Torque | 5304 lbs.-in. @ 300 RPM |
| No. Of Teeth | 50 |
| Origin | Reborable |
| Outside Dia. | 10.4" |
| Pitch Dia. | 10" |
| Pressure Angle | 20° |
| Product Datasheet | boston-gear-g101.pdf |
| Set Screw | No Setscrew |
| Torque @ 200 Rpm | 6540 lbs.-in. |
| Torque @ 300 Rpm | 5304 lbs.-in. |
| Torque @ 600 Rpm | 3384 lbs.-in. |
| Type | C |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Hub Dia. | Bore Dia. | Type | Length Through Bore | Max. Torque | Torque @ 200 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YK25B | 5" | 25 | 3 3/4" | 1 1/8" | A | 3 3/4" | 2203 lbs.-in. @ 600 RPM | 3542 lbs.-in. | €433.18 | |
 |
YK28 | 5.6" | 28 | 3 3/4" | 1 1/8" | A | 3 3/4" | 2396 lbs.-in. @ 600 RPM | 3970 lbs.-in. | €470.29 | |
 |
YK30B | 6" | 30 | 3 3/4" | 1 1/8" | A | 3 3/4" | 2506 lbs.-in. @ 600 RPM | 4230 lbs.-in. | €513.72 | |
 |
YK35B | 7" | 35 | 3 3/4" | 1 1/4" | B | 3 3/4" | 4199 lbs.-in. @ 300 RPM | 4995 lbs.-in. | €657.40 | |
 |
YK40B | 8" | 40 | 3 3/4" | 1 1/4" | B | 3 3/4" | 4639 lbs.-in. @ 300 RPM | 5593 lbs.-in. | €716.24 | |
|
YK60B | 12" | 60 | 4.38" | 1 3/8" | C | 4" | 5892 lbs.-in. @ 300 RPM | 7400 lbs.-in. | €1,105.16 | RFQ
|
 |
YK80B | 16" | 80 | 4.38" | 1 3/8" | D | 4" | 8932 lbs.-in. @ 200 RPM | 8932 lbs.-in. | €1,863.18 |
