BOSTON GEAR YB80A Spur Gear, 16 Diametral Pitch, 20 Deg. Pressure Angle, 80 Teeth, Steel
Item: AK3ADUModel: YB80A
7 In Stock
80
Ships within 2 days via
€245.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 3/4" |
| Diametral Pitch | 16" |
| Face Width | 3/4" |
| Hub Dia. | 3 22/25" |
| Hub Projection | 3/4" |
| Material | Steel |
| No. Of Teeth | 80 |
| Output Dia. | 5.13" |
| Overall Length | 1 1/2" |
| Pitch Dia. | 5" |
| Pressure Angle | 20° |
| Product Datasheet | boston-gear-g101.pdf |
| Type | Plain |
Shipping Info:
| Ship weight (kg) | 2.99 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Diametral Pitch | Pressure Angle | Pitch Dia. | Hub Dia. | Bore Dia. | Hub Projection | Type | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

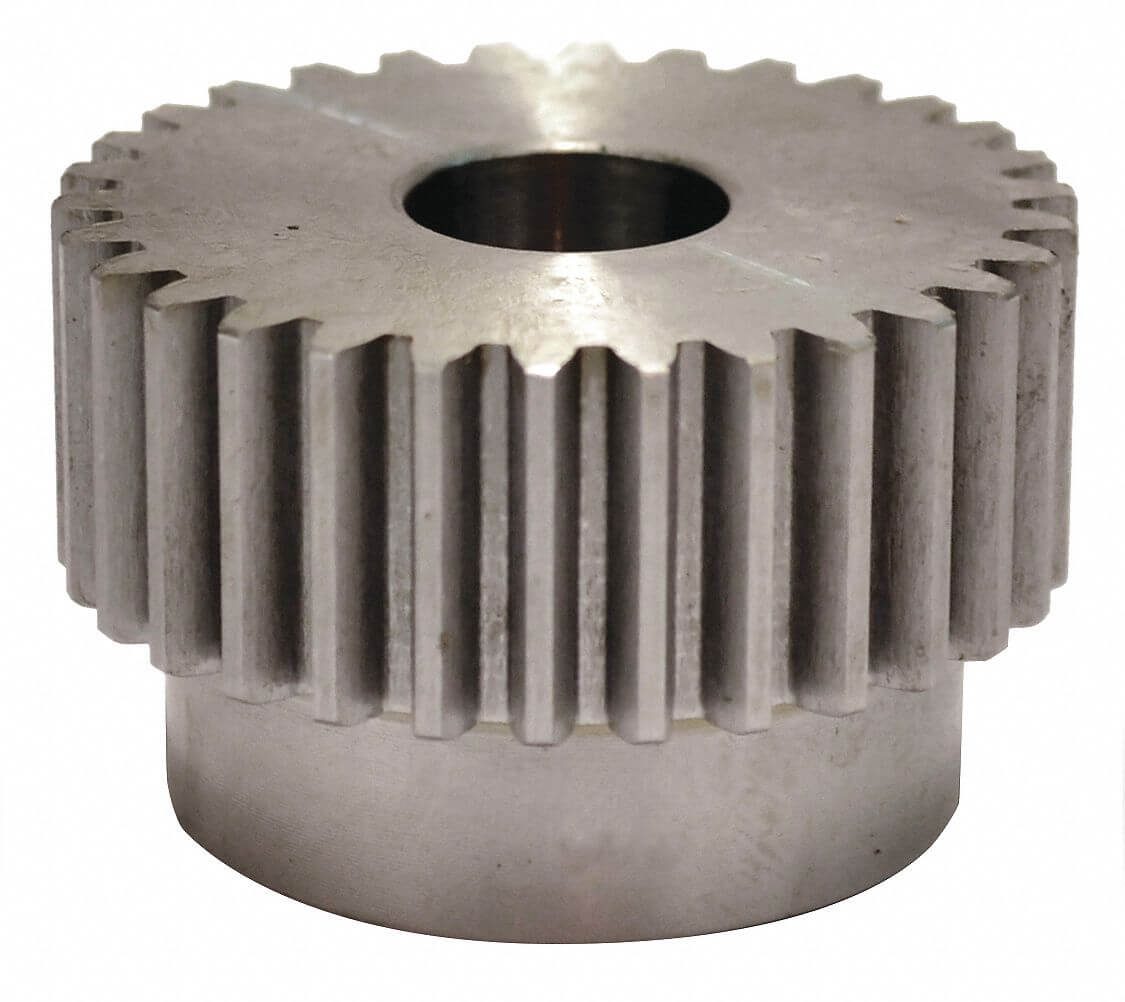

YB1834 | 16 | 20 | 1 1/8" | 0.94" | 3/4" | 0.5" | - | 1 1/4" | €156.55 | |
 |
YB20-5/8 | 16 | 20° | 1 1/4" | 1.05" | - | - | A | - | €93.54 | |
 |
YB16-1/2 | 16 | 20° | 1" | 0.81" | - | - | A | - | €75.42 | |
 |
YB12 | 16" | 20° | 3/4" | 14/25" | 3/8" | 1/2" | Plain | 1 1/4" | €59.70 | |
 |
YB14 | 16" | 20° | 7/8" | 0.69" | 3/8" | 1/2" | Plain | 1 1/4" | €72.30 | |
 |
YB15 | 16" | 20° | 0.938" | 3/4" | 3/8" | 1/2" | Plain | 1 1/4" | €65.07 | |
 |
YB16 | 16" | 20° | 1" | 0.81" | 1/2" | 1/2" | Plain | 1 1/4" | €63.69 |
