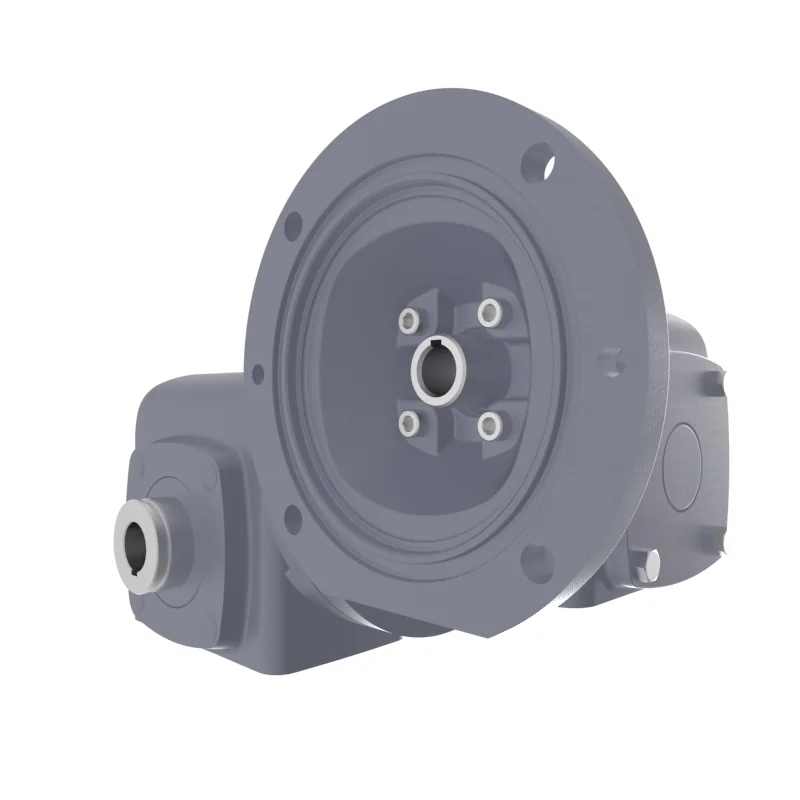

BOSTON GEAR SF726-10-B7-G Reducer, 140TC Size, 1.125 Inch Dia., Left Side
Get it by Tuesday, Sep 1
€2,272.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Center Distance | 2.63" |
| Frame Size | 140TC, 180C |
| Housing Dimensions | 7.38" x 4.44" x 8" |
| Housing Height | 8" |
| Housing Length | 7.38" |
| Housing Material | Cast Iron |
| Housing Width | 4 11/25" |
| Input Hp | 3.940 HP @ 1750 RPM |
| Input Size | 7/8" |
| Input Type | C Face Quill |
| Max. Output Speed | 175 @ 1750 RPM |
| Nema/iec Frame Size | 140tc/180c |
| Output Size | 1 7/16" |
| Output Torque | 1960 lbs.-in. @ 100 RPM |
| Output Type | Hollow |
| Overhung Load Capacity | 1000 lbs. |
| Reduction | Single |
Shipping Info:
| Ship weight (kg) | 20.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Output Torque | Housing Height | Housing Width | Housing Length | Max. Output Speed | Overhung Load Capacity | Input Size | Output Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SF718-10-B5-G | 610 lbs.-in. @ 100 RPM | 5 3/4" | 3.69" | 5" | 175 @ 1750 RPM | 500 lbs. | 5/8" | 1" | €1,473.59 | |
 |
SF718-25-B5-G | - | - | - | - | - | - | - | - | €1,368.88 | |
 |
SF718-30-B5-G | 710 lbs.-in. @ 100 RPM | 5 3/4" | 3.69" | 5" | 58.3 @ 1750 RPM | 500 lbs. | 5/8" | 1" | €1,473.59 | |
 |
SF718-50-B5-G | - | - | - | - | - | - | - | - | €1,473.59 | |
 |
SF721-10-B5-G | - | - | - | - | - | - | - | - | €1,604.32 | |
 |
SF721-15-B5-G | 968 lbs.-in. @ 100 RPM | 6.38" | 3.81" | 6" | 116.7 @ 1750 RPM | 700 lbs. | 5/8" | 1 1/8" | €1,604.32 | |
 |
SF721-20-B5-G | - | - | - | - | - | - | - | - | €1,727.81 |
