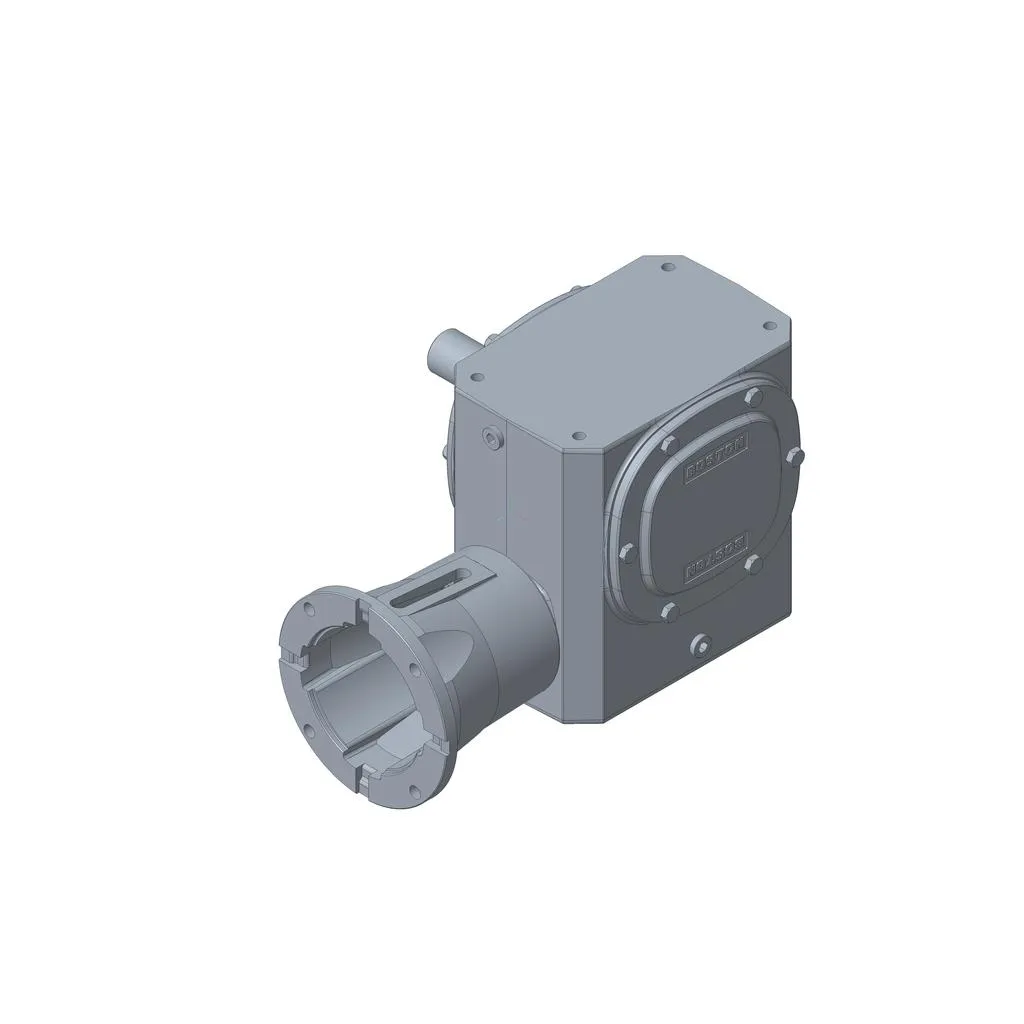

BOSTON GEAR RF732-40-B7-J Reducer, Single Reduction, 40:1 Ratio, No Base, J Assembly
B7
3.2"
40:1
J
€7,007.30 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | No Base |
| Center Distance | 3 1/4" |
| Fan Cooled | No |
| Finish | Standard Paint |
| Input Style | RF Coupled Flange |
| Lubrication | Klubersynth UH1 6-460 |
| Output Shaft Dia. | 1 3/8" |
| Pre-lubricated | No |
| Reducer Material | Cast Iron |
| Reduction Type | Single Reduction Right Angle |
Product Variants
| Model | Gear Ratio | Max. Input Hp | Motor Frame Designation | Worm Center Distance | Base To Shaft Center | Overhung Load | Finish | Output Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RF752-10E-B11-G | 101 | 17 3/10 hp | 210Tc/250Uc | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 | |
| RF752-10E-B13-G | 101 | 17 3/10 hp | 250TC | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 | |
| RF752-15E-B11-G | 151 | 13 1/10 hp | 210Tc/250Uc | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 | |
| RF752-20E-B11-G | 201 | 10 1/5 hp | 210Tc/250Uc | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 | |
| RF752-30E-B9-G | 301 | 7 3/10 hp | 180Tc/210C | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,531.37 | |
| RF752-30E-B11-G | 301 | 7 3/10 hp | 210Tc/250Uc | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,928.62 | |
| RF752-40E-B9-G | 401 | 5 3/5 hp | 180Tc/210C | 5.15" | 5.31" | 2200 lbs. | Epoxy Paint | 2" | €8,554.10 |
