BOSTON GEAR ND42A Spur Gear, 12 Diametral Pitch, 14 1/2 Deg. Pressure Angle, 42 Teeth, Steel
Item: AK2YPDModel: ND42A
7 In Stock
Ships within 2 days via
€159.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 5/8" |
| Diametral Pitch | 12" |
| Face Width | 3/4" |
| Hub Dia. | 2 1/2" |
| Hub Projection | 0.62" |
| Material | Steel |
| No. Of Teeth | 42 |
| Output Dia. | 3.67" |
| Overall Length | 1.37" |
| Pitch Dia. | 3 1/2" |
| Pressure Angle | 14.5° |
| Product Datasheet | boston-gear-g101.pdf |
| Type | Plain |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.48 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Diametral Pitch | Bore Dia. | Pitch Dia. | Hub Dia. | Hub Projection | Number Of Teeth | Outside Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ND12 B | 12 | 1/2" | 1" | 3/4" | 0.5" | 12 | - | 1 1/4" | €75.97 | |
| ND18 B | 12 | 5/8" | 1 1/2" | 1.14" | 0.5" | 18 | 1.667" | 1 1/4" | €95.72 | |
| ND20 B | 12 | 5/8" | 1.667" | 1.31" | 0.5" | 20 | 1.834" | 1 1/4" | €102.46 | |
| ND24 B | 12 | 5/8" | 2" | 1 16/25" | 0.5" | 24 | 2.167" | 1 1/4" | €135.69 | |
| ND30 | 12 | 5/8" | 2 1/2" | 2.14" | 0.63" | 30 | 2.667" | 1.38" | €141.41 | |
| ND32A | 12 | 5/8" | 2.667" | 1 23/25" | 0.63" | 32 | 2.834" | 1.38" | €163.79 | |

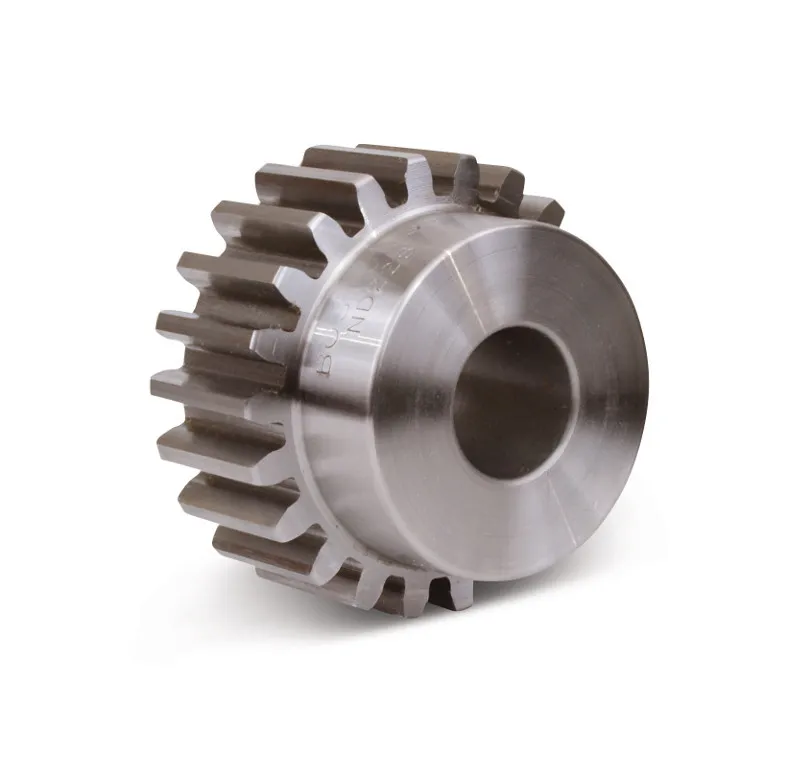

| ND11B | 12" | 1/2" | 1" | 3/4" | 1/2" | - | - | 1 1/4" | €67.84 |
