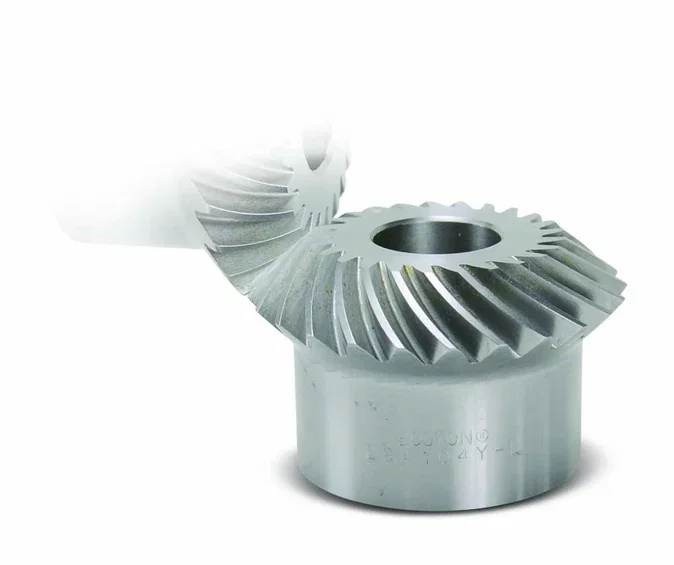

BOSTON GEAR LSA105Y-AL Miter Gear
Item: AK2YDWModel: LSA105Y-AL
7 In Stock
Ships within 2 days via
€423.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miter Gears |
| Bore Size | 1" |
| Diametral Pitch | 7 |
| Finish | Unardened |
| Hardened Teeth | Without Hardened Teeth |
| Hub Dia. | 2 1/2" |
| Kwy/setscrew/other | With Kwy, Setscrew |
| Length Through Bore | 1.786" |
| Material | Steel |
| Mounting Distance | 2 3/4" |
| No. Of Teeth | 21 |
| Pitch Dia. | 3" |
| Pressure Angle | 20° |
| Ratio | 1:1 |
| Spiral Angle | 20° |
| Spiral Direction | Left Hand |
| Spiral Tooth | Pressure Angle |
| Straight/spiral Tooth | Spiral Tooth |
| Torque @ 1200 Rpm | 158 lbs.-ft. |
| Torque @ 1800 Rpm | 119 lbs.-ft. |
| Torque @ 200 Rpm | 315 lbs.-ft. |
| Torque @ 300 Rpm | 294 lbs.-ft. |
| Torque @ 600 Rpm | 221 lbs.-ft. |
| Torque @ 900 Rpm | 182 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Material | No. Of Teeth | Hub Dia. | Diametral Pitch | Length Through Bore | Mounting Distance | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LSA105Y-AR | 3" | Steel | 21 | 2 1/2" | 7 | 1.786" | 2 3/4" | 1" | €423.23 | |
 |
LSA110Y-R | 1" | Steel | 18 | 3/4" | 18" | - | - | - | €95.20 | |
 |
OA424 Y | 6" | Cast Iron | 24 | 4" | 4 | 3 9/16" , 3.5625" | 5 1/2" | 1 3/4" , 1.75" | €618.47 | |
 |
XR137-2YL | - | - | - | - | - | - | - | - | €1,053.27 | |
 |
XR137-2YR | - | - | - | - | - | - | - | - | €1,053.27 | |
 |
21594 | - | - | - | - | - | - | - | - | €565.67 | RFQ
|
