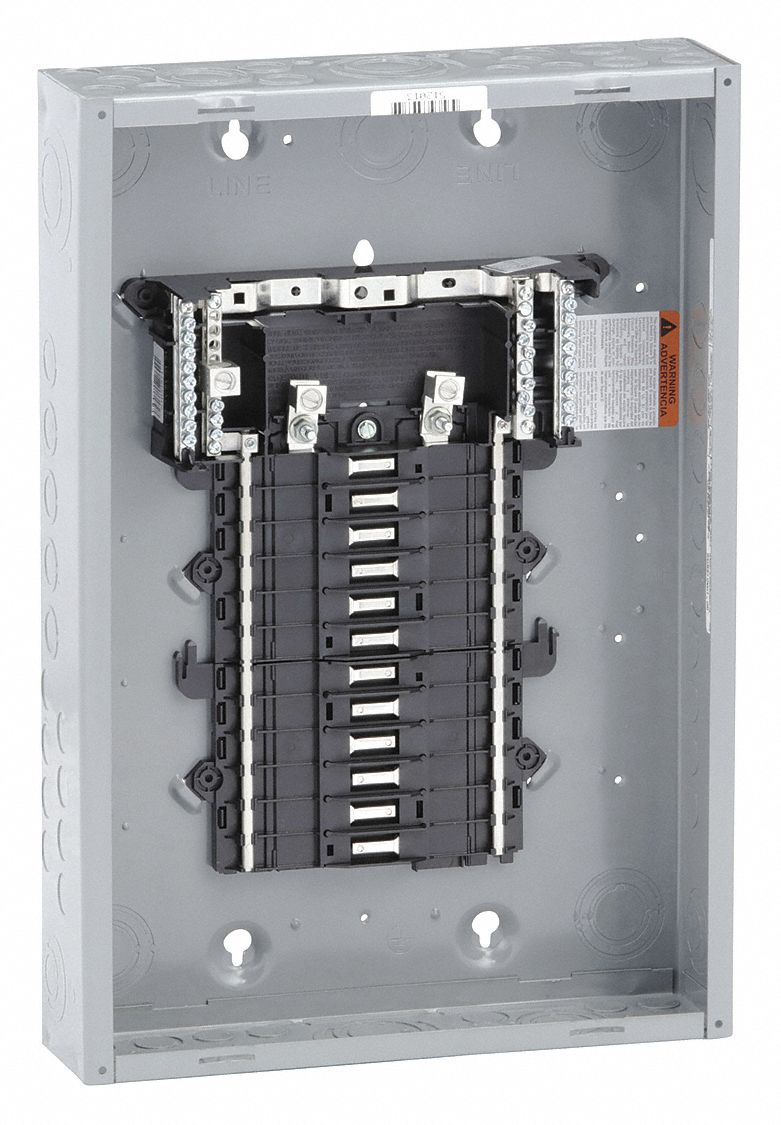

SQUARE D QO124L125PG Load Center, 24 Spaces, 125A, Qo Circuit Breaker, 120/240VAC
Get it by Wednesday, Apr 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€418.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps | 125A |
| Amps Rating | 125A |
| Box No. | 7 |
| Bus Material | Tin Plated Copper |
| Busbar Material | Copper |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | QO |
| Color | Gray |
| Cover Type | Order Separately |
| Depth | 4 1/4" |
| Electrical Connection | Lugs |
| Enclosure Material | Steel , Welded Sheet Steel |
| Enclosure Nema Rating | 1 |
| Enclosure Rating | NEMA 1 Indoor Enclosure |
| Enclosure Surface Finish | Enamel |
| Features | Mercury Free |
| Feed Location | Bottom/Top |
| Finish | Enamel Powder Coat |
| For Use With | Square D QO Circuit Breakers |
| Ground Bar | Grounding Bar Included (Not Installed) |
| Height | 20.9" , 20.91" |
| Included Enclosure Cover | Order Separately |
| Location | Indoor |
| Main Circuit Breaker Or Main Lug | Convertible, Main Lug |
| Max. No. Of Single Pole Circuits | 34 |
| Max. No. Of Tandem Breakers | 0 , 10 |
| Max. Operating Temp. | 104 Deg. F |
| Max. Operating Temp. | 104°F |
| Max. Short Circuit Amps Rating | 65 kA |
| Min. Operating Temp. | 23°F |
| No. Of Spaces | 24 |
| Number Of Phases | 1 |
| Number Of Spaces | 24 |
| Phase | 1 |
| Pon Convertible Mains (lugs) | PoN Convertible Mains (Lugs) |
| Recommended Flush Cover | 1D433 |
| Recommended Ground Bar Kit | Included |
| Recommended Surface Cover | 1D434 |
| Returnability | Yes |
| Short Circuit Amps Rating | 65 kA |
| Short Circuit Current Rating | 65kA |
| Special Features | Mercury Free |
| Standards | Rohs Compliant, Ul Listed |
| Surface Finish | Baked Enamel Gray |
| Tightening Torque | Main Lugs 50 lbs.-in., 6 AWG to 2/0, Aluminium, Copper, Cover 20 lbs.-in. |
| Voltage | 120/240V AC |
| Voltage Rating | 120/240V AC |
| Width | 14.3" |
| Wire Size | 6 AWG to 2/0 AWG |
Shipping Info:
| Ship weight (kg) | 5.67 |
| Ship height (cm) | 53.11 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 36.2 |
| Country of Origin | USA |
