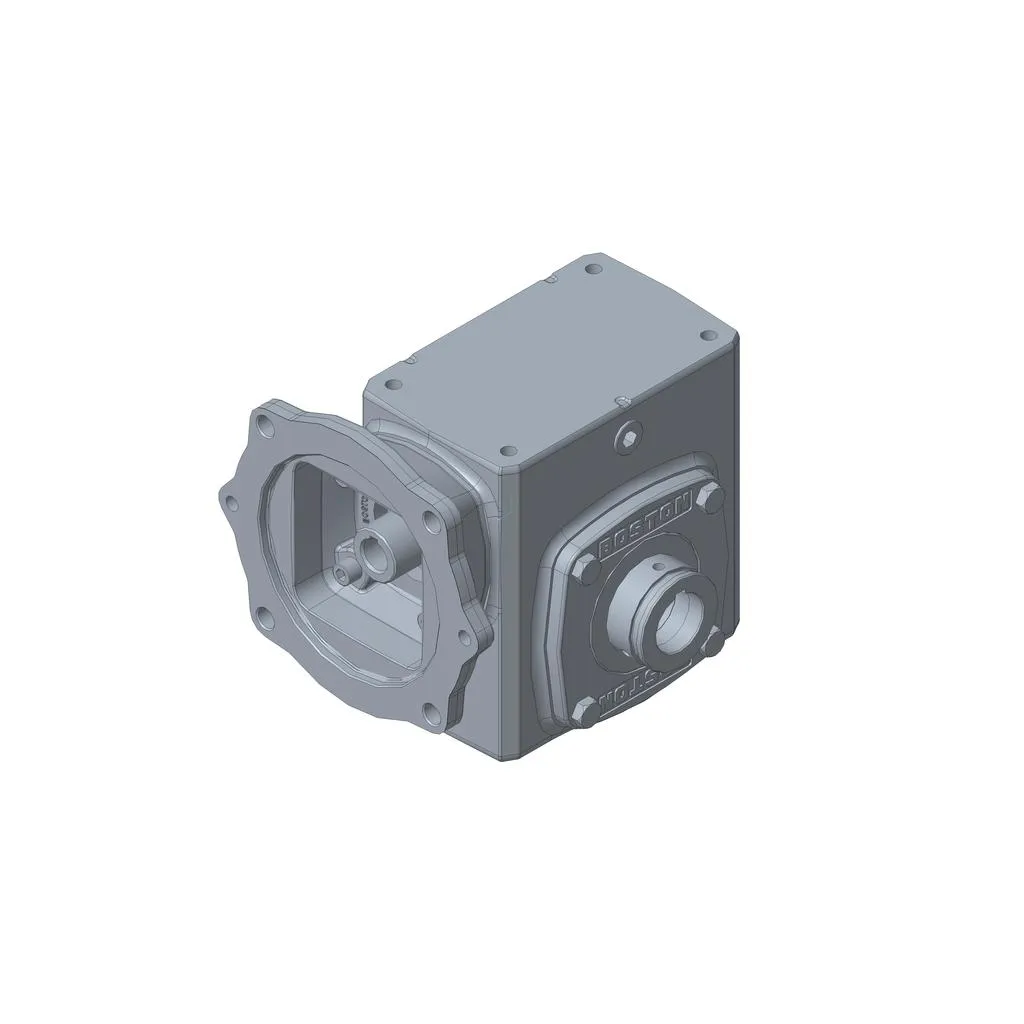

BOSTON GEAR HF721-10-B5-H-P19 Worm Gear Reducer, Input Flange
2.1"
10:1
1 3/16"
Get it by Tuesday, Sep 1
€1,463.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | No Base |
| Center Distance | 2.06" |
| Color | Gray |
| Efficiency | 0.94% |
| Fan Cooled | No |
| Finish | Standard Paint |
| Gear Ratio | 10:1 |
| Height | 6.38" |
| Input Dia. | 5/8" |
| Input Speed | 175 RPM |
| Input Style | Quill Flange |
| Key Way Size | 3/16" x 3/32" |
| Length | 6" |
| Lubrication | Klubersynth UH1 6-460 |
| Material | Cast Iron |
| Max. Input Hp | 2 17/50 hp |
| Motor Hp | 2 hp |
| Mounting Type | No Base |
| Output Dia. | 1 3/16" |
| Output Hp | 2.19 hp |
| Output Shaft | Hollow Bore |
| Output Type | Hollow Shaft |
| Pre-lubricated | No |
| Product Series | 700 Series |
| Reduction Type | Single Reduction Right Angle |
| Torque | 789 lbs.-in. |
| Type | Single Reduction |
| Width | 6 11/25" |
Shipping Info:
| Ship weight (kg) | 11.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Input Style | Output Shaft | Reduction Type | Output Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HF713-30-B5-H-P10 | - | - | - | - | RF Coupled Flange | Hollow Bore | Single | Hollow | €1,039.87 | |
 |
HF724-30-B5-H-P23 | - | - | - | - | RF Coupled Flange | Hollow Bore | Single Reduction Right Angle | - | €1,779.55 | |
 |
HF724-60-B5-H-P20 | - | - | - | - | RF Coupled Flange | Hollow Bore | Single Reduction Right Angle | - | €1,779.55 | |
 |
HF726-60-B5-H-P20 | 1 1/4" | 5/8" | 16/25 hp | 0.89 hp | Quill Flange | Hollow Bore | Single | Hollow | €2,149.99 | |
 |
HF718-15-B5-H-P16 | - | - | - | - | RF Coupled Flange | Hollow Bore | Single | Hollow | €1,326.50 | |
 |
HF718-20-B5-H-P16 | 1" | 5/8" | 41/50 hp | 0.97 hp | Quill Flange | Hollow Bore | Single | Hollow | €1,326.50 | |
 |
HF718-30-B5-H-P16 | 1" | 5/8" | 0.53 hp | 13/20 hp | Quill Flange | Hollow Bore | Single | Hollow | €1,326.50 |
