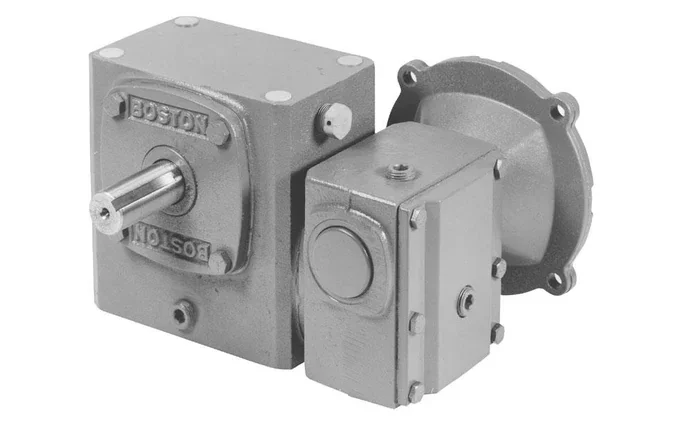

BOSTON GEAR FWC752-1800E-B5-G Reducer, 56C Size, 2 Inch Dia., Left Side
B5
5.2"
1800:1
G
Get it by Tuesday, Aug 18
€8,003.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Centerline Of Output Shaft | 5 5/16" |
| Base To Shaft Center Height With High Vert. Base Kit | 8.63" |
| Base To Shaft Center Height With Low Vert. Base Kit | 6.38" |
| Base To Shaft Center Height With Std. Base Kit | 6.44" |
| Bolt Center | 11" x 5 13/16" |
| Bolt Centers With Std. Base Kit | 14 1/8" x 8 3/8" |
| Bolt Centers With Vertical Base Kits | 18" x 10" |
| Bore Code | B5 |
| Box Height | 13 3/4" |
| Box Length | 9 51/64" |
| Box Width | 18 35/64" |
| Center Distance | 5 5/32" |
| Family Name | Fwc |
| Fan Cooled | No |
| Frame Size | 56C |
| Housing Material | Cast Iron |
| Hp @ Speed | 1/2 hp @ 1800 RPM |
| Input (shaft Or Bore) Size | 5/8" |
| Input Configuration | C Face Quilled |
| Key Way Size | 3/16" x 3/32" |
| Max. Overhung Load @ 1750 Rpm | 2200 lbs.-in. |
| Max. Thrust Load @ 1150 Rpm | 1900 lbs.-in. |
| Motor Application | General Purpose |
| Output (shaft Or Bore) Size | 2" |
| Output Configuration | Left Output |
| Output Speed @ 1750 Rpm Input | 0.97 RPM |
| Ratio | 1800:1 |
| Reduction Type | Double Reduction |
| Shaft Assembly Code | G |
| Torque Out @ 1750 Rpm | 11750 lbs.-in. |
| Washdown Duty | No |
| Worm Position | Universal, Right Angle |
Shipping Info:
| Ship weight (kg) | 107.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Input Hp | Output Dia. | Output Hp | Input Dia. | Reduction Type | Output Shaft Dia. | Input Style | Input Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FWC713-100-B5-G | - | - | - | - | Double Reduction Right Angle (Wc/Wd) | 5/8" | F Standard Quill Flange | - | €1,871.99 | |
 |
FWC713-1200-B5-G | - | - | - | - | Double Reduction Right Angle (Wc/Wd) | 5/8" | F Standard Quill Flange | - | €1,871.99 | |
 |
FWC713-150-B5-G | 0.13 hp | 5/8" | 0.052 hp | 5/8" | Double Reduction Right Angle (Wc/Wd) | 5/8" | Quill Flange | 11.7 RPM | €1,871.99 | |
 |
FWC713-200-B5-G | 3/25 hp | 5/8" | 0.045 hp | 5/8" | Double Reduction Right Angle (Wc/Wd) | 5/8" | Quill Flange | 8.8 RPM | €1,871.99 | |
 |
FWC713-400-B5-G | - | - | - | - | Double Reduction Right Angle (Wc/Wd) | 5/8" | F Standard Quill Flange | - | €1,871.99 | |
 |
FWC718-300-B5-G | 4/25 hp | 7/8" | 0.063 hp | 5/8" | Double Reduction Right Angle (Wc/Wd) | 7/8" | Quill Flange | 5.8 RPM | €2,234.43 | |
 |
FWC721-300-B5-G | - | - | - | - | Double Reduction Right Angle (Wc/Wd) | 1" | F Standard Quill Flange | - | €2,389.69 |
