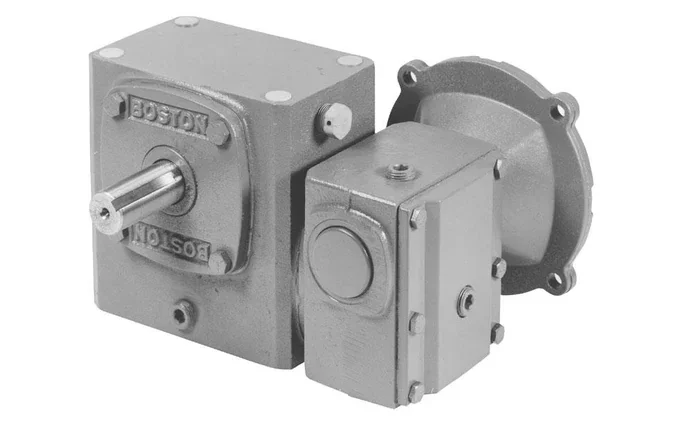

BOSTON GEAR FWA738-900E-B5-G Reducer, 56C Size, 1.625 Inch Dia., Left Side
B5
3.8"
900:1
G
Get it by Tuesday, Aug 18
€4,834.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Centerline Of Input Shaft | 4 7/8" |
| Base To Centerline Of Output Shaft | 6 9/16" |
| Base To Shaft Center Height With High Vert. Base Kit | 7" |
| Base To Shaft Center Height With Low Vert. Base Kit | 5 1/4" |
| Base To Shaft Center Height With Std. Base Kit | 7 1/2" |
| Bolt Center | 8 1/2" x 4 3/4" |
| Bolt Centers With Std. Base Kit | 10 3/8" x 7" |
| Bolt Centers With Vertical Base Kits | 13.94" x 8" |
| Bore Code | B5 |
| Box Height | 10 7/16" |
| Box Length | 8 1/2" |
| Box Width | 14 35/64" |
| Center Distance | 3 3/4" |
| Family Name | FWA |
| Fan Cooled | No |
| Frame Size | 56C |
| Housing Material | Cast Iron |
| Hp @ Speed | 1/2 hp @ 1800 RPM |
| Input (shaft Or Bore) Size | 5/8" |
| Input Configuration | C Face Quilled |
| Key Way Size | 3/16" x 3/32" |
| Max. Overhung Load @ 1750 Rpm | 2000 lbs.-in. |
| Max. Thrust Load @ 1150 Rpm | 1300 lbs.-in. |
| Motor Application | General Purpose |
| Output (shaft Or Bore) Size | 1 5/8" |
| Output Configuration | Left Output |
| Output Speed @ 1750 Rpm Input | 1.94 RPM |
| Ratio | 900:1 |
| Reduction Type | Double Reduction |
| Shaft Assembly Code | G |
| Torque Out @ 1750 Rpm | 5900 lbs.-in. |
| Washdown Duty | No |
| Worm Position | Universal, Parallel |
Shipping Info:
| Ship weight (kg) | 45.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Reduction Type | Output Shaft Dia. | Input Style | Output Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FWA713-100-B4-G | - | - | - | - | Double Reduction Parallel Shaft (Wa/Wb) | 5/8" | F Standard Quill Flange | - | €2,241.27 | |
 |
FWA713-1200-B4-G | - | - | - | - | Double Reduction Parallel Shaft (Wa/Wb) | 5/8" | F Standard Quill Flange | - | €1,871.99 | |
 |
FWA713-1200-B5-G | - | - | - | - | Double Reduction Parallel Shaft (Wa/Wb) | 5/8" | F Standard Quill Flange | - | €1,871.99 | |
 |
FWA713-150-B5-G | 5/8" | 5/8" | 0.052 hp | 0.13 hp | Double Reduction Parallel Shaft (Wa/Wb) | 5/8" | Quill Flange | Solid Projecting Shaft | €1,871.99 | |
 |
FWA713-200-B4-G | - | - | - | - | Double Reduction Parallel Shaft (Wa/Wb) | 5/8" | F Standard Quill Flange | - | €1,871.99 | |
 |
FWA713-200-B5-G | - | - | - | - | Double Reduction Parallel Shaft (Wa/Wb) | 5/8" | F Standard Quill Flange | Solid | €1,871.99 | |
 |
FWA713-300-B5-G | 5/8" | 5/8" | 0.031 hp | 1/10 hp | Double Reduction Parallel Shaft (Wa/Wb) | 5/8" | Quill Flange | Solid Projecting Shaft | €1,871.99 |
