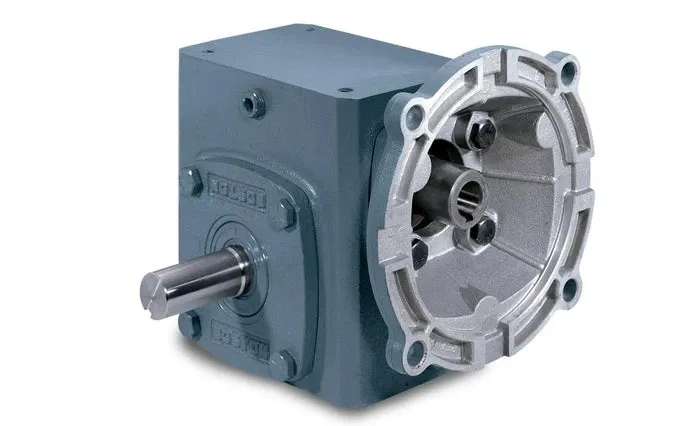

BOSTON GEAR F718-80-B5-G Reducer, Quill Input Solid Output Shaft Left Worm Gear
B5
1.75"
80:1
G
Get it by Tuesday, Dec 23
€1,039.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | No Base |
| Center Distance | 1 3/4" |
| Fan Cooled | No |
| Finish | Standard Paint |
| Input Style | F Standard Quill Flange |
| Lubrication | Klubersynth UH1 6-460 |
| Output Shaft Dia. | 7/8" |
| Pre-lubricated | No |
| Reducer Material | Cast Iron |
| Reduction Type | Single Reduction Right Angle |
Shipping Info:
| Ship weight (kg) | 8.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Max. Input Hp | Gear Ratio | Output Shaft Type | Motor Frame Designation | Base To Shaft Center | Overhung Load | Mounting Orientation | Worm Center Distance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| F710-50-B4-G | 4/25 hp | 501 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €956.54 | |
| F710-40-B4-G | 4/25 hp | 401 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €1,062.86 | |
| F710-30-B4-G | 4/25 hp | 301 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €1,013.06 | |
| F710-20-B4-G | 1/4 hp | 201 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €956.54 | |
| F710-15-B4-G | 1/4 hp | 151 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €956.54 | |
| F710-10-B4-G | 3/10 hp | 101 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €956.54 | |
| F710-5-B4-G | 3/10 hp | 51 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €1,013.06 |
