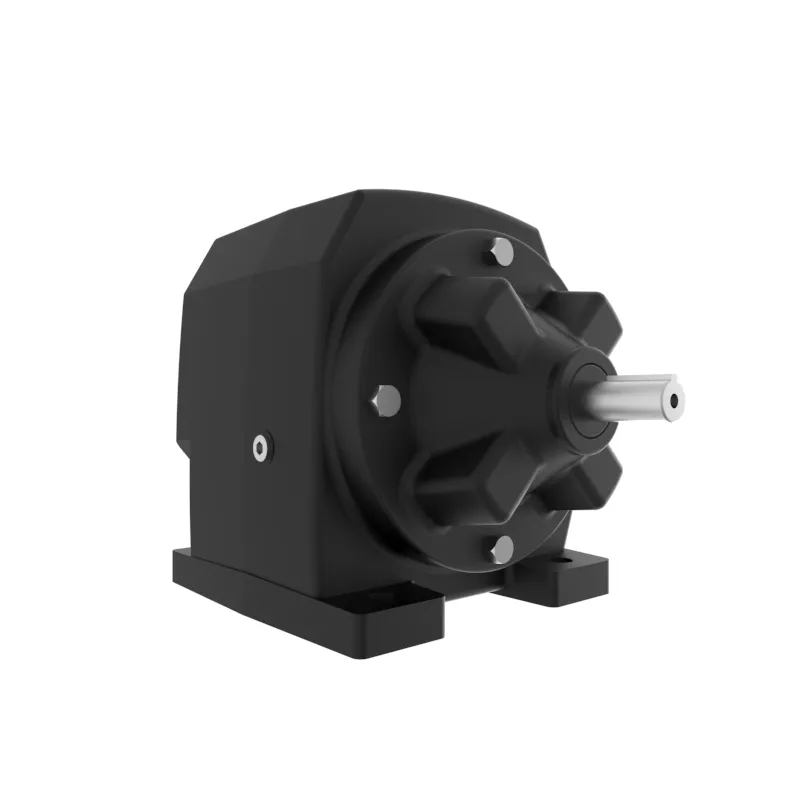

BOSTON GEAR 862B-3.5K-M1 Reducer, Double Reduction, 3.5 Ratio, Base Mount
6
3.5:1
M1
Foot Mounted
Get it by Wednesday, Aug 26
€2,275.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Helical Gear Drive |
| Base Mounting Attachment | Horizontal Base Mounted |
| Efficiency Rating | 96% |
| Exact Gear Ratio | 3.758 |
| Fan Cooled | No |
| Input Motor Hp | 10 hp At AGMA Service Class I |
| Input Power | 12.7 hp |
| Input Style | No Flange (Projecting Shaft) |
| Max. Output Torque Capacity | 1665 lbs.-in. |
| Motor Hp | 10 hp |
| Output Bore/shaft Dia. | 1.25" |
| Output Speed | 500 RPM |
| Pre-lubricated | Yes |
| Product Datasheet | boston-gear-832b-10k-m1.pdf |
| Ratio | 3.51 |
| Recommended Lubrication | Klubersynth UH1 6-460 |
| Reduction Stages | Double |
| Reduction Type | 800 Series Inline Helical |
Shipping Info:
| Ship weight (kg) | 21.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Output Speed | Output Dia. | Max. Input Hp | Motor Hp | Input Style | Base Mounting Attachment | Output Bore/shaft Dia. | Max. Output Torque Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
832B-10K-M1 | - | 3/4" | 1.63 hp | 1 1/2 hp | Projecting Shaft | - | - | - | €1,379.16 | |
 |
832B-20K-M1 | 87 RPM | - | - | 3/4 hp | No Flange (Projecting Shaft) | Horizontal Base Mounted | 0.75" | 590 lbs.-in. | €1,379.16 | |
 |
832B-25K-M1 | 70 RPM | - | - | 1/2 hp | No Flange (Projecting Shaft) | Horizontal Base Mounted | 0.75" | 580 lbs.-in. | €1,379.16 | |
 |
832B-5.1K-M1 | 340 RPM | - | - | 3 hp | No Flange (Projecting Shaft) | Horizontal Base Mounted | 0.75" | 592 lbs.-in. | €1,379.16 | |
 |
832B-63K-M1 | 27 RPM | - | - | 1/4 hp | No Flange (Projecting Shaft) | Horizontal Base Mounted | 0.75" | 500 lbs.-in. | €1,379.16 | |
 |
842B-5.1K-M1 | - | 1" | 5 24/25 hp | 5 hp | Projecting Shaft | - | - | - | €1,546.62 | |
 |
842B-63K-M1 | 27 RPM | - | - | 1/2 hp | No Flange (Projecting Shaft) | Horizontal Base Mounted | 1" | 1475 lbs.-in. | €1,546.62 |
