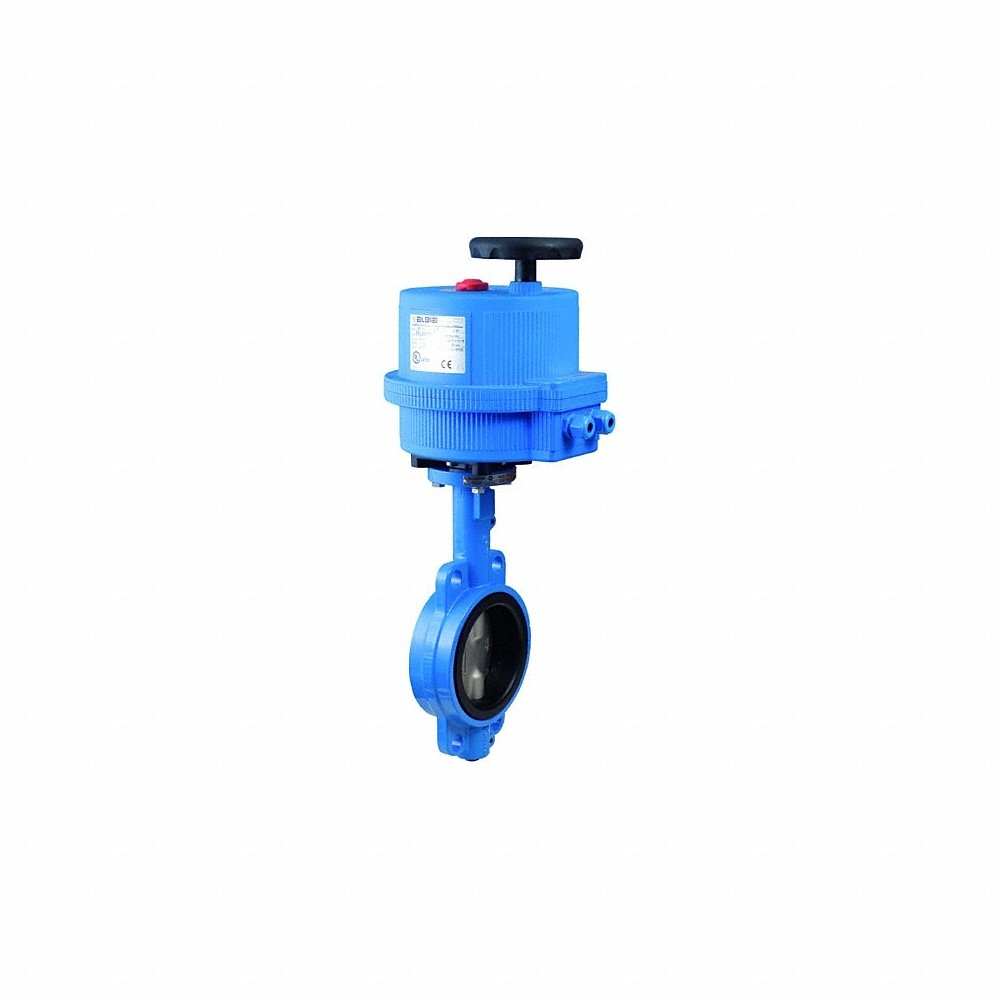

BONOMI E540S0035 Electrically Actuated Butterfly Valve
Get it by Tuesday, Aug 25
13.00% off
€1,235.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Butterfly Valve |
| 3 A Certified | Not Rated |
| Actuator Input Control Signal | Manual |
| Body Material | Ductile Iron |
| Coefficient Of Volume(cv) | 1010 |
| Connection Type | Wafer |
| Disc Material | Stainless Steel |
| Fail Safe Position | Fail Closed |
| For Media | Air, Water |
| Liner Material | Buna-N |
| Max. Operating Pressure | 250 psi |
| Max. Pressure Steam | 15 psi |
| Media Temp. | 0°F to 250°F |
| Nominal Valve Size | 5" |
| Seal Material | EPDM |
| Valve Deactivated State | Normally Closed |
| Voltage | 100-240V AC |
Shipping Info:
| Ship weight (kg) | 12.71 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 40.64 |
