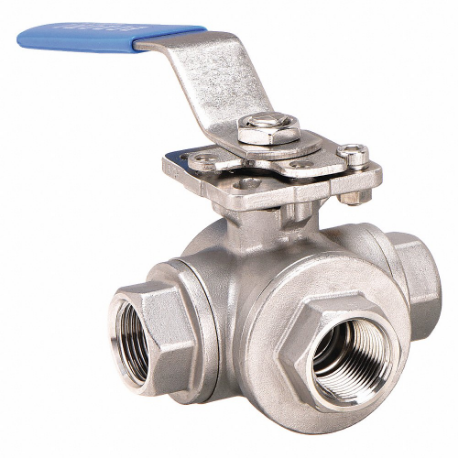

BONOMI 956N3/8 Ball Valve, 3/8 Inch Pipe T, 1000 PSI CWP, -20-450 Deg F
Item: CN9VHLModel: 956N3/8 Cross Ref: 46CE55
7 In Stock
Ships within 2 days via
13.00% off
€164.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 316 |
| Ball Port Style | Full Port |
| Body Material | Stainless Steel |
| Body Seal Material | RPTFE |
| Body Style | Three Way |
| Coefficient Of Volume | 7 |
| Connection Type | FNPT x FNPT x FNPT |
| Features | Valve Has 4 Ball Seats, Therefore, Any Port Can Be The Pressurized Inlet |
| Flow Pattern | T Flow |
| Grip Material | Vinyl |
| Handle | Locking Lever |
| Handle Color | Blue |
| Handle Height | 2.44" |
| Handle Material | Stainless Steel |
| Handle Material Grade | Grade 304 |
| Handle Material Grip | Vinyl |
| Handle Type | Locking Lever |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Inlet Connection | FNPT |
| Inlet Connection Entry | Side |
| Inlet Connection Size | 3/8" |
| Max. Pressure | 1000 psi |
| Max. Pressure (cwp) | 1000 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temp. | -20°F to +450°F |
| Nominal Valve Size | 3/8" |
| Outlet Connection 1 | FNPT |
| Outlet Connection 2 | FNPT |
| Outlet Connection Size-side 1 | 3/8" |
| Outlet Connection Size-side 2 | 3/8" |
| Overall Length | 2.83" |
| Pipe Size | 3/8" |
| Port | Full T |
| Seal Material | FKM, RPTFE |
| Seat Material | RPTFE |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant, Self Adjusting |
| Temp. | -20°F to +450°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Construction | Three-Piece |
| Valve Series | 956N Series |
| Valve Structure | Three Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Pressure | Stem Material | Ball Material | Seat Material | Temp. | Handle Type | Body Style | Valve Structure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
365N-11/2 | 400 psi | Brass | Brass | PTFE | -4°F to +366°F | Lever | Three Way | Four Piece | €334.58 | |
 |
966N-11/2 | 800 psi | Stainless Steel | Stainless Steel | RPTFE | -20°F to +450°F | Locking Lever | Three Way | Three Piece | €732.36 | |
 |
355N-11/2 | 400 psi | Brass | Brass | PTFE | -4°F to +366°F | Lever | Three Way | Four Piece | €343.45 | |
|
956N-11/2 | 800 psi | Stainless Steel | Stainless Steel | RPTFE | -20°F to +450°F | Locking Lever | Three Way | Three Piece | €695.74 | |
 |
720017-11/2 | 287 psi | Stainless Steel | Stainless Steel | RPTFE | -4°F to +366°F | Lever | Two Way | One Piece | €495.55 | |
|
966N-11/4 | 800 psi | Stainless Steel | Stainless Steel | RPTFE | -20°F to +450°F | Locking Lever | Three Way | Three Piece | €542.68 | |
|
355N-11/4 | 400 psi | Brass | Brass | PTFE | -4°F to +366°F | Lever | Three Way | Four Piece | €213.53 |
