BLICKLE LHD-GSPO 60K Dual Wheel Swivel Caster 1540 Lb 2-3/8 Inch Nyl
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€262.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Dual Wheel Swivel Caster |
| Antistatic | No |
| Bearing Type | Ball Bearing |
| Bolt Hole Diameter | 5/16" |
| Bolt Hole Spacing | 3 5/32" x 2 3/8" |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Nylon |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Core Color | Tan |
| Core Material | Nylon |
| Corrosion-resistant | No |
| Durometer | 80 Shore D |
| Electrically Conductive | No |
| Esd | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Heat-resistant | No |
| Hole Pattern | A |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 3/8" x 3 5/32" |
| Load Capacity (static) | 3470 lbs. |
| Load Capacity At 1.9 Mph | 1390 lbs. |
| Load Capacity At 2.5 Mph | 1390 lbs. |
| Load Capacity At 3 Km/h | 630 Kg |
| Load Capacity At 4 Km/h | 630 Kg |
| Load Rating | 1540 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 3 5/8" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 3 11/32" x 3 15/16" |
| Mounting Plate Size & Bolt Hole Pattern | 3 11/32" X 3 15/16" ( D ) |
| Mounting Type | Top Plate |
| Non-marking | Yes |
| Non-staining | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 2 |
| Offset (f) | 1 9/16" |
| Operating Noise / Floor Surface Preservation | Satisfactory |
| Outside Bolt Hole Spacing | 2 3/8" x 3 5/32" |
| Overall Height | 3 5/8" |
| Plate Size | 3 15/16" x 3 3/8" |
| Plate Thickness | 0.312" |
| Plate Type | C |
| Product Datasheet | blickle-lhd-gspo-60k.pdf |
| Raceway Type | Double Ball |
| Rolling Resistance | Excellent |
| Suitable For Autoclaves | No |
| Suitable For Machine Washing | No |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Temperature Resistance Max | 175°F |
| Temperature Resistance Min | -5°F |
| Total Height (h) | 3 5/8" |
| Tread And Tyre Hardness | 80 Shore D |
| Tread Hydrolysis-resistant | No |
| Tread Shape | Standard |
| Unit Weight | 3.7 lbs. |
| Wear Resistance | Very Good |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | White |
| Wheel Core Material | Nylon |
| Wheel Dia. | 2 3/8" |
| Wheel Material | Nylon |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | White |
| Wheel/tread Hardness | 80 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Nylon |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 20.32 |
| HS code | 8302200000 |
| Country of Origin | DE |
Documentation:
Product Variants
| Product | Model | Wheel Dia. | Wheel Width | Wheel Material | Caster Load Rating Range | Load Rating | Frame Finish | Wheel Color | Core Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LSD-GSPO 80K | 3 1/8" | 1 9/16" | Nylon | 3000 lbs. to 5999 lbs. | 3850 lbs. | Zinc Chromate | White | Tan | €247.18 | |
|
LSD-GSPO 100K | 3 7/8" | 1 9/16" | Nylon | 3000 lbs. to 5999 lbs. | 4850 lbs. | Zinc Chromate | White | Tan | €582.83 | |
 |

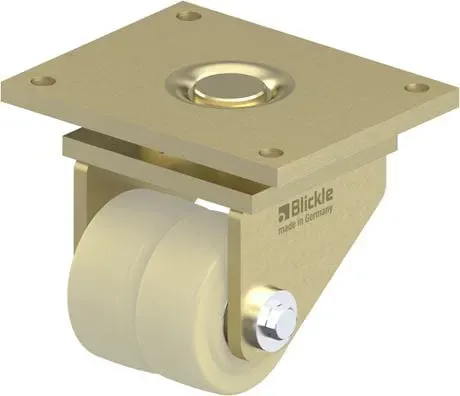

LSD-GSPO 125K | 4 7/8" | 2 3/16" | Nylon | Greater Than 6000 lbs. | 7925 lbs. | Zinc Chromate | White | Tan | €1,328.04 | |
 |
LHD-VSTH 60K | 2 3/8" | 1 3/8" | Polyurethane | 300 lbs. to 999 lbs. | 790 lbs. | Zinc Plated | Yellow | Silver | €349.65 | |
 |
LHD-SPO 75K | 3" | 1 1/4" | Nylon | 1000 lbs. to 2999 lbs. | 1320 lbs. | Zinc Plated | White | White | €197.75 | |
 |
LHD-VSTH 80K | 3 1/8" | 1 5/8" | Polyurethane | 1000 lbs. to 2999 lbs. | 1235 lbs. | Zinc Plated | Yellow | Silver | €324.60 |
