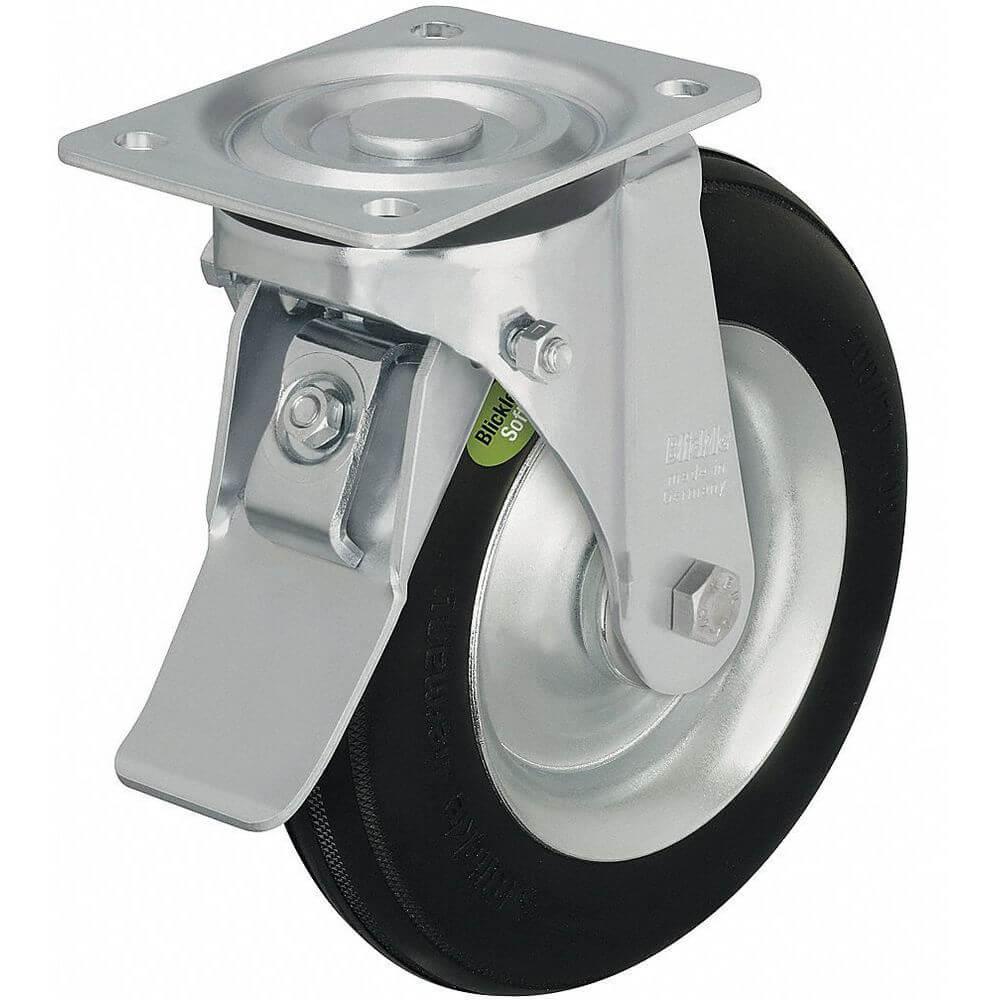

BLICKLE L-VW 260K-ST Swivel Plate Caster With Brake 440 Lb 10-1/4 Inch Diameter
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€518.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Solid Rubber Caster w/Brake |
| Antistatic | No |
| Bearing Type | Ball Bearing |
| Bolt Hole Diameter | 9/16" |
| Bolt Hole Spacing | 5 1/2" x 5 1/2" |
| Brake Type | Total Lock |
| Caster Brake Type | Total Lock Brake |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Sub-type | Swivel |
| Core Color | Gray |
| Corrosion-resistant | No |
| Electrically Conductive | No |
| Esd | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Heat-resistant | No |
| Hole Pattern | D |
| Hub Color | Gray |
| Includes | Top Grease Seal |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 5 1/2" x 5 1/2" |
| Load Capacity (static) | 1100 lbs. |
| Load Capacity At 2.5 Mph | 440 lbs. |
| Load Capacity At 4 Km/h | 200 Kg |
| Load Rating | 440 lbs. |
| Mounting Bolt Dia. | 9/16" |
| Mounting Height | 12 1/8" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 6 7/8" x 6 7/8" |
| Mounting Plate Size & Bolt Hole Pattern | 6 7/8" X 6 7/8" ( D ) |
| Mounting Type | Top Plate |
| Non-marking | No |
| Non-staining | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Offset (f) | 3 1/16" |
| Operating Noise/floor Surface Preservation | Excellent |
| Outside Bolt Hole Spacing | 5 1/2" x 5 1/2" |
| Overall Height | 12 1/8" |
| Plate Size | 6 7/8" x 6 7/8" |
| Plate Type | D |
| Profile | Round Profile |
| Raceway Type | Double Ball |
| Replacement Wheel | VW 260/20K |
| Rolling Resistance | Good |
| Suitable For Autoclaves | No |
| Suitable For Machine Washing | No |
| Swivel Construction | Kingpin |
| Swivel Raceway Type | Double Ball |
| Temperature Resistance Max | 160°F |
| Temperature Resistance Min | -5°F |
| Total Height (h) | 12 1/8" |
| Tread | Smooth |
| Tread And Tyre Hardness | 50 Shore A |
| Tread Hydrolysis-resistant | No |
| Unit Weight | 20.3 lbs. |
| Wear Resistance | Satisfactory |
| Wheel Bearing Type | Precision Ball |
| Wheel Dia. | 10 1/4" |
| Wheel Diameter | 10 1/4" |
| Wheel Width | 3 3/8" |
| Wheel/tread Hardness | 50 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Rubber |
Shipping Info:
| Ship weight (kg) | 9.09 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 37.85 |
| Ship width (cm) | 17.53 |
| HS code | 8302200000 |
| Country of Origin | DE |
Product Variants
| Product | Model | Wheel Dia. | Load Rating | Mounting Height | Wheel/tread Hardness | Tread | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L-VLE 250K-ST | 9 13/16" | 990 lbs. | 11 5/8" | 65 Shore A | Ribbed | Swivel | D | 5 1/2" x 5 1/2" | €643.30 |
