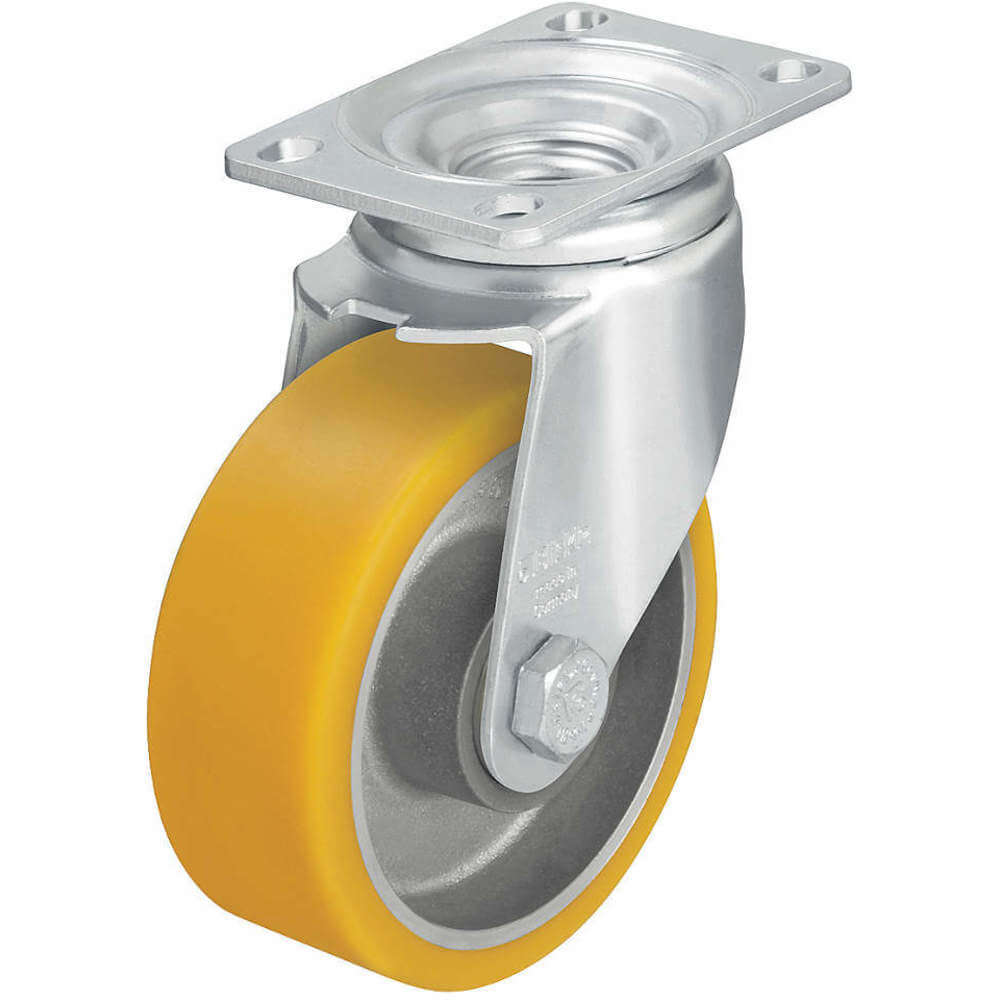

BLICKLE L-ALTH 100K-12 Swivel Plate Caster 400 Lb 4 Inch Diameter
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€65.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | General / Industrial / Commercial / Institutional purpose |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating | 300 lbs. to 999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Caster Wheel Material | Polyurethane |
| Core Color | Gray |
| Core Material | Aluminum |
| Durometer | 92 Shore A |
| Extended Lead | No |
| Features | American Standard Plate Size |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | C |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 1 3/4" x 2 13/16" |
| Load Rating | 400 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 4 15/16" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 2 1/2" x 3 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 1/2" X 3 5/8" ( D ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Outside Bolt Hole Spacing | 1 3/4" x 3 1/16" |
| Overall Height | 5 1/8" |
| Plate Caster Core Material | Aluminum |
| Plate Caster Core Material | Aluminium |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Polyurethane |
| Plate Size | 2 1/2" x 3 5/8" |
| Plate Thickness | 1/8" |
| Plate Type | C |
| Raceway Type | Double Ball |
| Replacement Wheel | ALTH 100/15K |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Yellow |
| Wheel Core Material | Aluminum |
| Wheel Dia. | 3 15/16" , 4" |
| Wheel Width | 1 5/8" |
| Wheel/tread Color | Yellow |
| Wheel/tread Hardness | 92 Shore A , Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 13.02 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 6.35 |
| HS code | 8302200000 |
| Country of Origin | DE |
Product Details:
- Plate Caster Brake (No)
- Thread Guard (No)
Product Variants
| Product | Model | Wheel Dia. | Wheel Width | Caster Brake Type | Mounting Height | Overall Height | Caster Brake Included | Lock Type | Plate Caster Lock | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

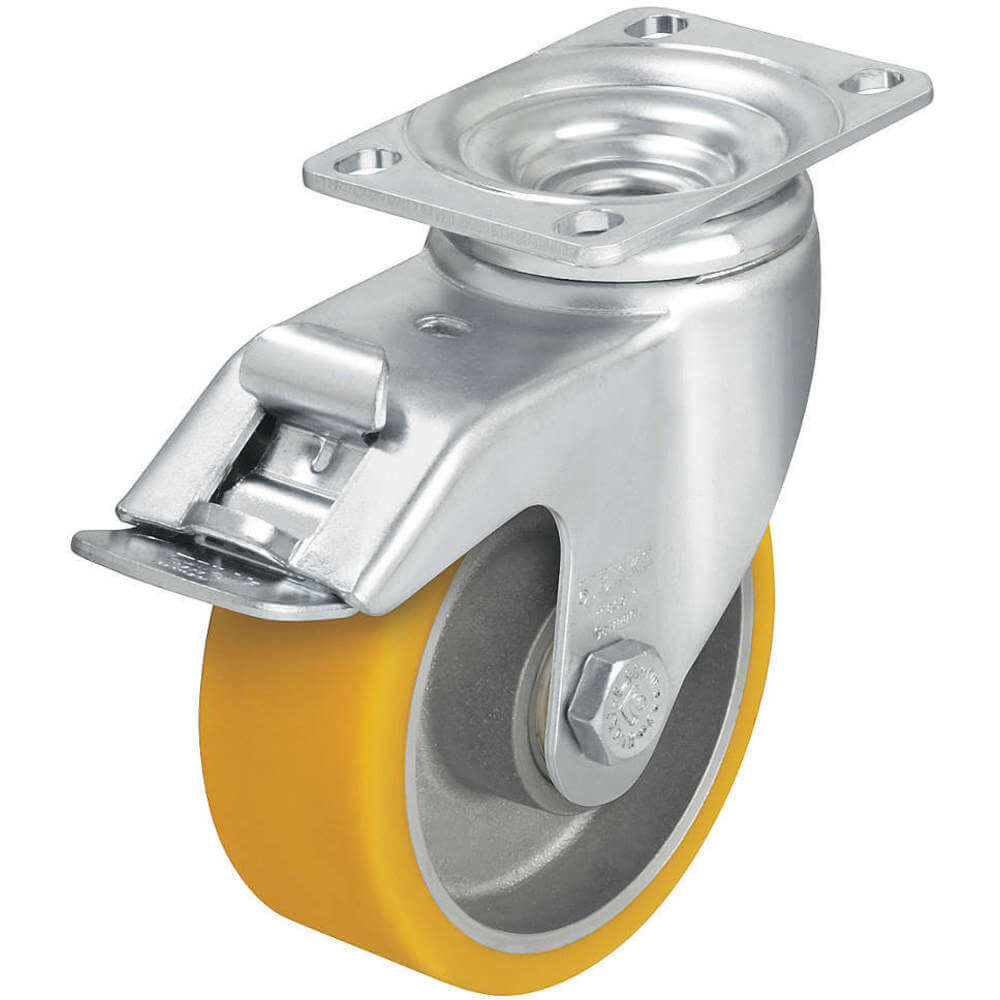

L-ALTH 100K-12-FI | 3 15/16" | 1 1/4" | Total Lock Brake | 4 15/16" | 5 1/8" | Yes | Total Lock | Total Lock | €75.20 | |
 |

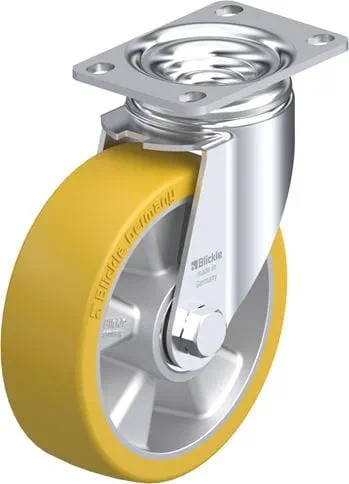

L-ALTH 125K-12 | 5" | 1.562" | - | - | 6 1/8" | No | No Lock Included | No Lock Included | €73.44 | |
 |

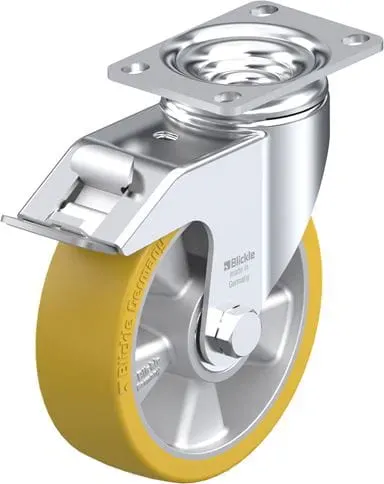

L-ALTH 125K-12-FI | 5" | 1 1/4" | Total Lock Brake | 5 7/8" | 6 1/8" | Yes | Total Lock | Total Lock | €86.83 |
