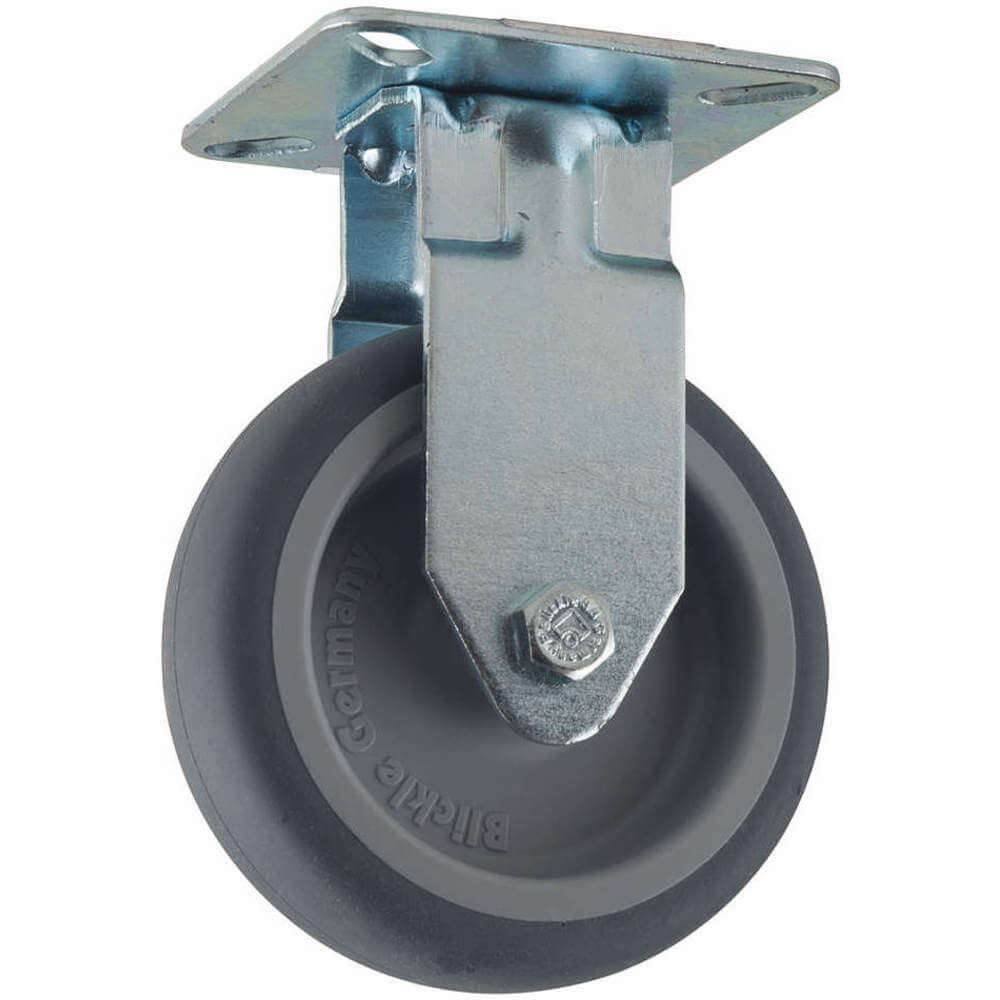

BLICKLE BPXA-TPA 75G Rigid Plate Caster 165 Lb 3 Inch Diameter
Get it by Thursday, Aug 27
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€32.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Anti Static | No |
| Application | Food Service, Medical And Institutional Equipment |
| Bearing Type | Plain Bore |
| Bolt Hole Dia. | 2/8" |
| Bolt Hole Spacing | 1 1/2" x 1 7/8" |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Stainless Steel |
| Caster Load Rating | 0 lbs. to 299 lbs. |
| Caster Material | Thermoplastic |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Type | Rigid |
| Caster Wheel Material | Thermoplastic Rubber |
| Core Color | Gray |
| Core Material | Polypropylene |
| Corrosion Resistant | Yes |
| Durometer | 85 Shore A |
| Electrically Conductive | No |
| Esd | No |
| Extended Lead | No |
| Frame Finish | Stainless Steel |
| Frame Material | Stainless Steel |
| Heat Resistant | No |
| Hole Pattern | A |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 1 1/2" x 1 1/2" |
| Load Capacity @ 1.9 Mph | 165 lbs. |
| Load Capacity @ 3 Km/h | 75 Kg |
| Load Capacity Static | 420 lbs. |
| Load Rating | 165 lbs. |
| Lock Type | No Lock Included |
| Max. Temp. Resistance | 140°F |
| Min. Temp. Resistance | -5°F |
| Mounting Height | 3 7/8" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 2 3/8" x 2 3/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 3/8" X 2 3/8" ( B ) |
| Mounting Type | Top Plate |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Non-staining | No |
| Operating Noise/floor Surface Preservation | Good |
| Outside Bolt Hole Spacing | 1 7/8" x 1 7/8" |
| Overall Height | 3.938" |
| Plate Size | 2 3/8" x 2 3/8" |
| Plate Thickness | 0.093" |
| Plate Type | A |
| Product Datasheet | blickle-bpxa-tpa-75g.pdf |
| Replacement Wheel | TPA 75/8G |
| Rolling Resistance | Very Good |
| Suitable For Autoclaves | No |
| Suitable For Machine Washing | No |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0.0" |
| Total Height H | 3 15/16" |
| Tread And Tyre Hardness | 85 Shore A |
| Tread Hydrolysis-resistant | No |
| Tread Shape | Standard |
| Wear Resistance | Satisfactory |
| Wheel Bearing Type | Plain |
| Wheel Bearings | Plain Bore |
| Wheel Color | Gray |
| Wheel Core Material | Plastic |
| Wheel Dia. | 3" |
| Wheel Material | Thermoplastic Rubber |
| Wheel Width | 1" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 85 Shore A , Soft |
| Wheel/tread Material | Thermoplastic Rubber |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 6.35 |
| HS code | 8302200000 |
| Country of Origin | DE |
Documentation:
Product Variants
| Model | Wheel Dia. | Wheel Width | Wheel/tread Material | Load Rating | Mounting Height | Non-marking | Wheel/tread Hardness | Wheel Core Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

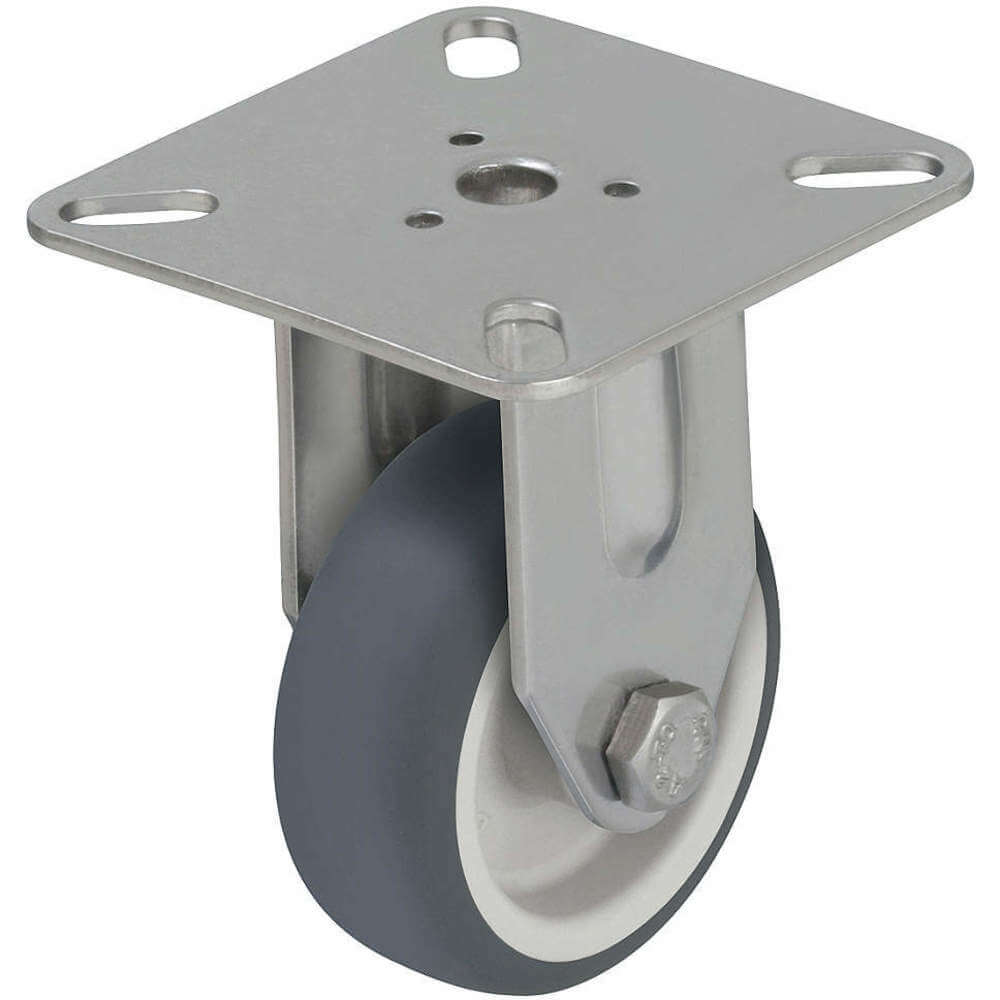

| BPXA-TPA 50G | 2" | 3/4" | Thermoplastic Rubber | 110 lbs. | 2 13/16" | Yes | 85 Shore A | Plastic | €35.02 | |

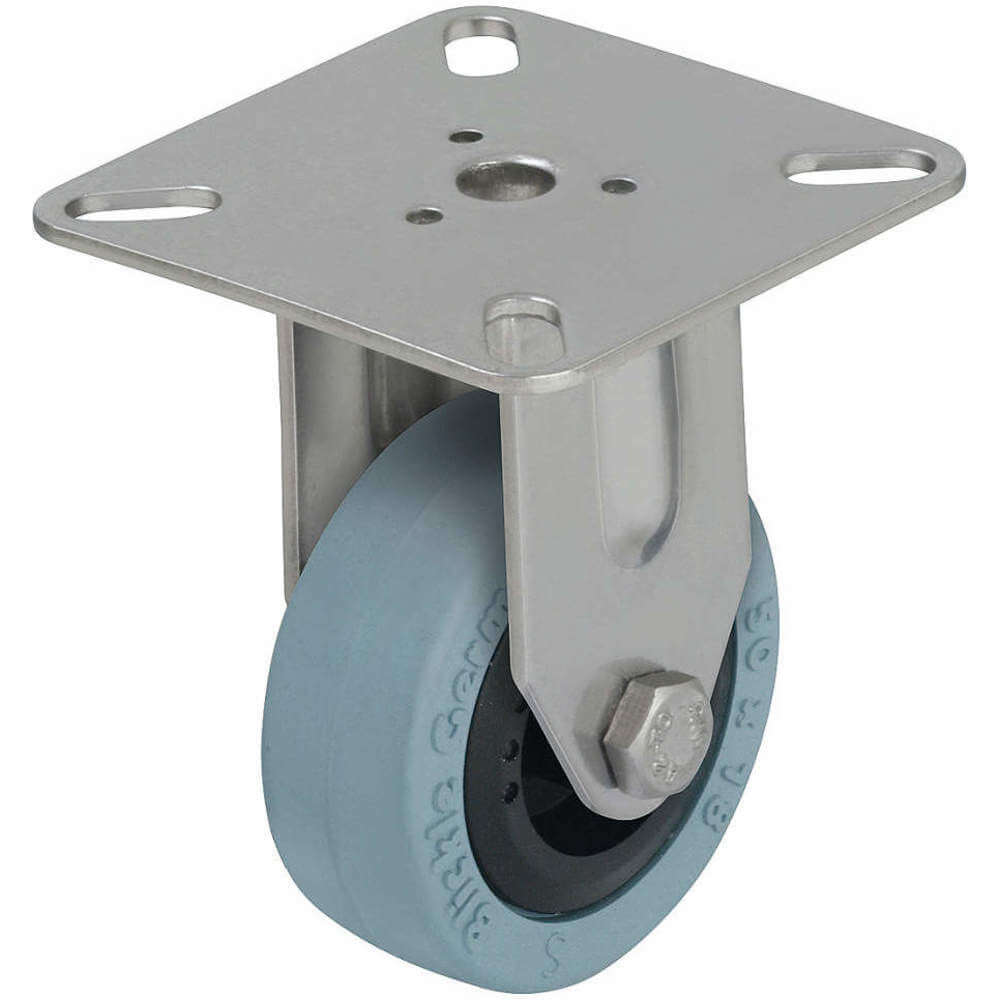

| BPXA-VPA 50G | 2" | 11/16" | Rubber | 85 lbs. | 2 13/16" | No, Yes | 80 Shore A | Nylon | €31.98 | |
| BPXA-VPA 75G | 3" | 1" | Rubber | 130 lbs. | 3 7/8" | No, Yes | 80 Shore A | Nylon | €39.07 |
