BLICKLE BH-GSPO 80K Rigid Plate Caster 1540 Lb 3-1/8 Inch Diameter
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€78.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Antistatic | No |
| Application | General / Industrial / Commercial / Institutional purpose |
| Bearing Type | Ball Bearing |
| Bolt Hole Diameter | 5/16" |
| Bolt Hole Spacing | 3 5/32" x 2 3/8" |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Nylon |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Type | Rigid |
| Caster Wheel Material | Nylon |
| Core Color | White |
| Core Material | Nylon |
| Corrosion-resistant | No |
| Durometer | 80 Shore D |
| Electrically Conductive | No |
| Esd | No |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Heat-resistant | No |
| Hole Pattern | A |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 3/8" x 3 5/32" |
| Load Capacity (static) | 3860 lbs. |
| Load Capacity At 1.9 Mph | 1545 lbs. |
| Load Capacity At 2.5 Mph | 1545 lbs. |
| Load Capacity At 3 Km/h | 700 Kg |
| Load Capacity At 4 Km/h | 700 Kg |
| Load Rating | 1540 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 4 11/16" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 3 3/8" x 3 15/16" |
| Mounting Plate Size & Bolt Hole Pattern | 3 3/8" X 3 15/16" ( D ) |
| Mounting Type | Top Plate |
| Non-marking | Yes |
| Non-staining | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Noise / Floor Surface Preservation | Satisfactory |
| Outside Bolt Hole Spacing | 2 3/8" x 3 5/32" |
| Plate Size | 3 15/16" x 3 3/8" |
| Plate Type | A |
| Product Datasheet | blickle-bh-gspo-80k.pdf |
| Replacement Wheel | GSPO 80/20K |
| Rolling Resistance | Excellent |
| Standards | Din En 12540, Iso 14001, Iso 5001, Iso 9001 |
| Suitable For Autoclaves | No |
| Suitable For Machine Washing | No |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0.0" |
| Temperature Resistance Max | 175°F |
| Temperature Resistance Min | -5°F |
| Total Height (h) | 4 3/4" |
| Tread And Tyre Hardness | 80 Shore D |
| Tread Hydrolysis-resistant | No |
| Tread Shape | Standard |
| Unit Weight | 2.2 lbs. |
| Wear Resistance | Very Good |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Beige |
| Wheel Core Material | Nylon |
| Wheel Dia. | 3 1/8" |
| Wheel Diameter | 3 1/8" |
| Wheel Material | Nylon |
| Wheel Width | 1 9/16" |
| Wheel/tread Color | Beige |
| Wheel/tread Hardness | 80 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Nylon |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 11.68 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 8.13 |
| HS code | 8302200000 |
| Country of Origin | DE |
Documentation:
Product Variants
| Product | Model | Wheel Dia. | Mounting Height | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Caster Brake Type | Wheel Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

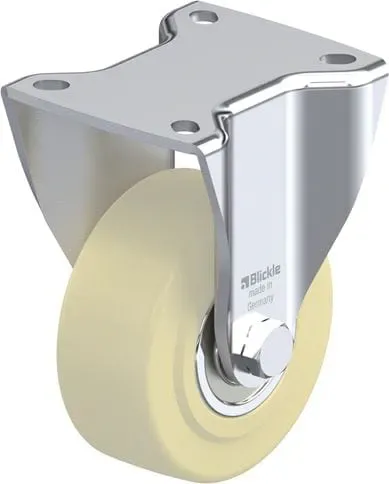

BH-GSPO 100K-1 | 3 7/8" | 5 1/2" | Rigid | D | 2 3/8" x 3 5/32" | 2 3/8" x 3 5/32" | No Brake Included | 1 9/16" | €111.73 |
