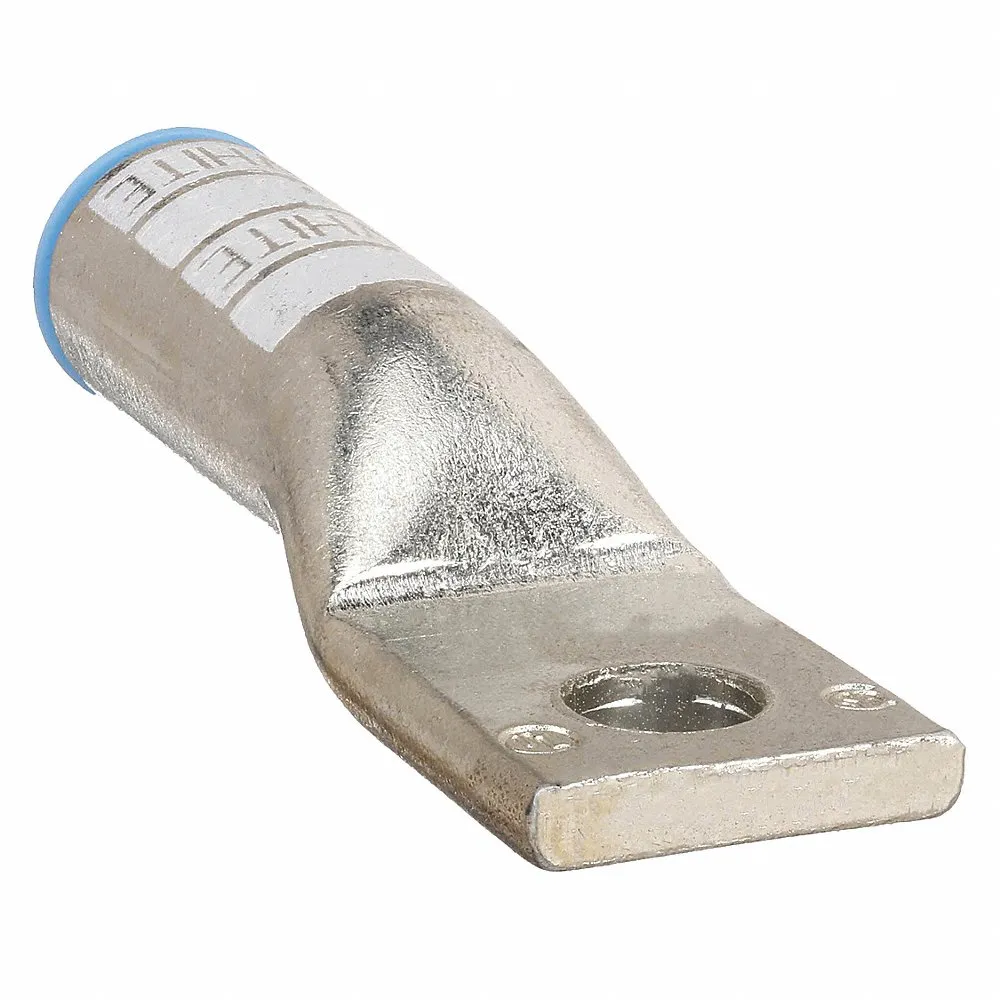

BLACKBURN (T&B) 60148 Aluminum One Hole Lug, Blind End, Max 35kV, 4/0 AWG Wire, 3/8 Inch Bolt Size
Item: BK9ANJModel: 60148Cross Ref: 3LM95
7 In Stock
Ships within 2 days via
5.00% off
€30.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One-Hole Lug Compression Connector |
| Barrel Outside Dia. | 0.857" |
| Barrel Size | Long |
| Cable Size | 4/0 AWG |
| Color | White |
| Color Code | White |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 66 |
| For Conductor Material | Copper |
| For Stranded Aluminum Wire Size-max. | 4/0 AWG |
| For Stud Size | 3/8" |
| For Wire Type | Solid, Stranded |
| Hole Center To End | 0.38" |
| Inspection Hole | No |
| Insulation | None |
| Material | Aluminum |
| Max. Voltage | 35 kV AC |
| Max. Wire Size | 4/0 AWG |
| No. Of Holes | 1 |
| Overall Length | 3.58" |
| Overall Width | 1 1/5" |
| Stud Size | 3/8" |
| Termination Style | Crimp |
| Tongue Style | Standard |
| Tongue Width | 1.2" |
| Voltage | 35 kV |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 8.42 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 10.8 |
| Country of Origin | MX |
