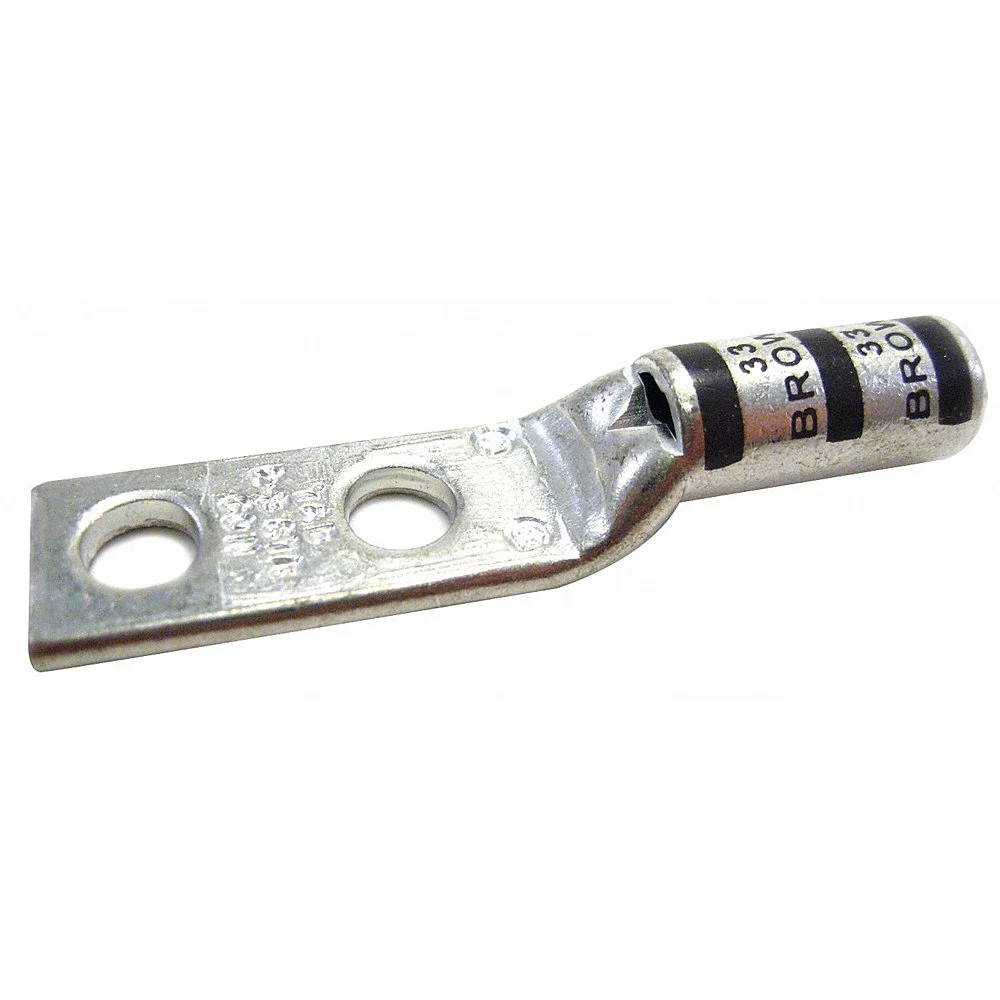

BLACKBURN (T&B) 54855BEPH Copper Two Hole Lug, Long Barrel, 1/4 Inch Bolt Size, 5/8 Inch Hole Spacing
Item: BK8ZLZModel: 54855BEPHCross Ref: 6MFV0
7 In Stock
Ships within 2 days via
5.00% off
€10.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Two-Hole Lug Compression Connector |
| Barrel Outside Dia. | 0.41" |
| Barrel Size | Long |
| Cable Size | 2 AWG |
| Color | Brown |
| Color Code | Brown |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 33 |
| For Conductor Material | Copper |
| For Stud Size | 1/4" |
| For Wire Size | 2 AWG |
| For Wire Type | Stranded |
| Hole Center To Center | 1 3/4" |
| Hole Center To End | 0.255" |
| Hole Size | 1/4" |
| Inspection Hole | Yes |
| Material | Copper |
| Max. Voltage | 35 kV AC |
| Max. Wire Size | 2 AWG |
| No. Of Holes | 2 |
| Overall Length | 1.28" |
| Overall Width | 0.1" |
| Stud Size | 1/4" |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.28" |
| Tongue Style | Standard |
| Tongue Width | 0.11" |
| Voltage | 35 kV |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Product Variants
| Product | Model | Cable Size | Stud Size | Connector Type | Color Code | Overall Length | Max. Wire Size | Color | Hole Center To End | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
54821BE | 400 kcmil | 3/8" | Straight Barrel | Blue | 4.43" | 400 kcmil | Blue | - | 1 | €68.38 | |
 |
256-30695-1049 | 2 AWG | 1/2" | Straight Barrel | Brown | 3.75" | 2 AWG | Brown | 0.313" | 1 | €38.92 | |
 |
256-30695-252 | 6 AWG | 1/4" | Straight Barrel | Blue | 2.38" | 6 AWG | Blue | 0.239" | 1 | €6.93 | |
 |
54216 | 400 kcmil | 3/8" | - | - | - | - | Blue | - | 6 | €156.18 | |
|
54265 | 3/0 AWG | 1/2" | Straight Barrel | Orange | 3.94" | 3/0 AWG | Orange | 1/2" | 1 | €84.42 | |
 |
54280 | 300 kcmil | 1/2" | Straight Barrel | White | 4.45" | 300 kcmil | White | 1/2" | 10 | €228.85 | |
|
54289 | 600 kcmil | 1/2" | Straight Barrel | Green | 5.23" | 600 kcmil | Green | 1/2" | 6 | €342.28 |
