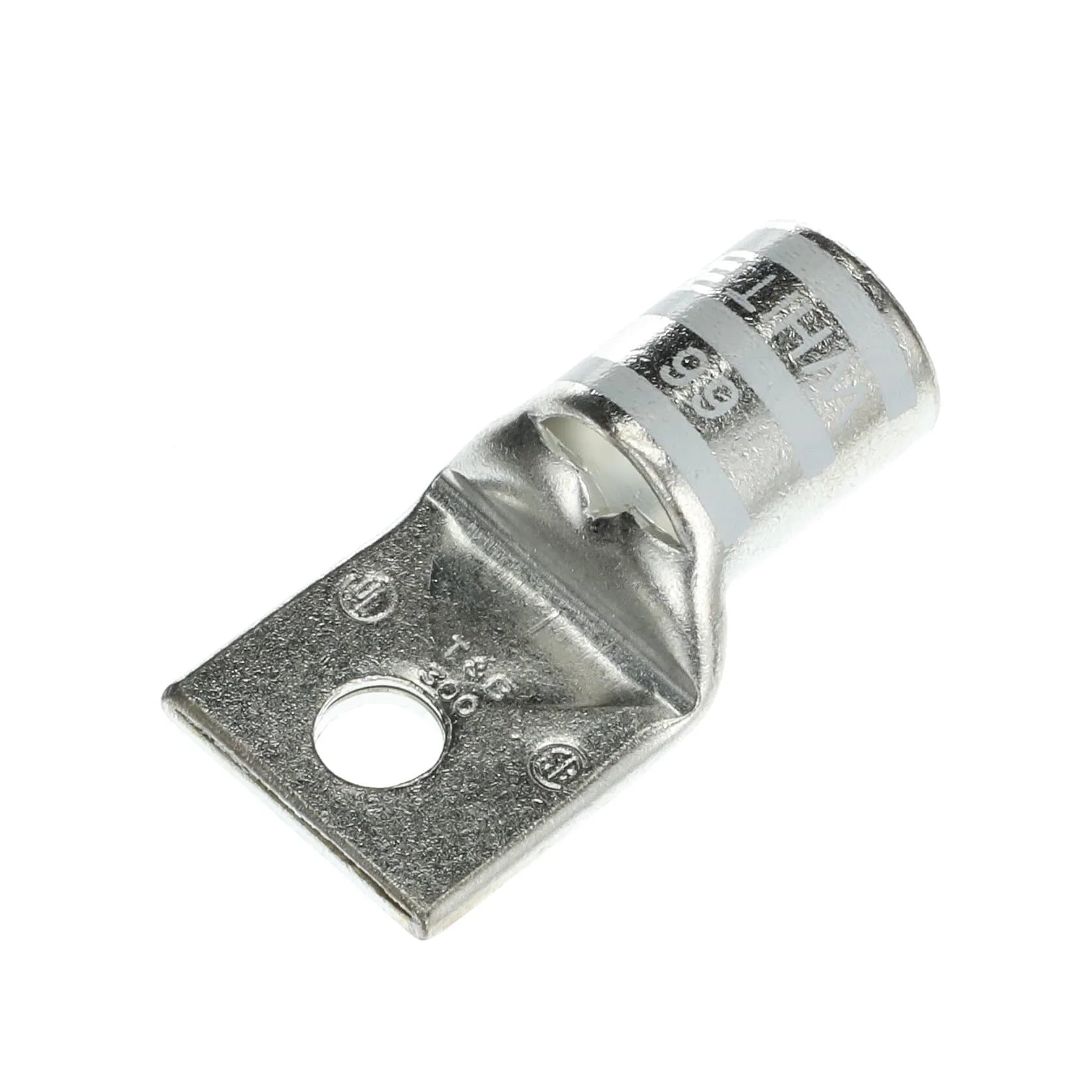

BLACKBURN (T&B) 54179 One-Hole Lug Compression Connector, 300 kcmil Cable Size, White
Item: CJ2YMHModel: 54179Cross Ref: 3LL85
7 In Stock
Ships within 2 days via
5.00% off
€147.82 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One-Hole Lug Compression Connector |
| Barrel Outside Dia. | 0.85" |
| Barrel Size | Standard |
| Cable Size | 300 kcmil |
| Color | White |
| Color Code | White |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 66 |
| For Conductor Material | Copper |
| For Stud Size | 3/8" |
| For Wire Type | Stranded |
| Hole Center To End | 3/8" |
| Inspection Hole | Yes |
| Insulation | None |
| Material | Copper |
| Max. Voltage | 35 kV AC |
| Max. Wire Size | 300 kcmil |
| No. Of Holes | 1 |
| Overall Length | 2.43" |
| Overall Width | 1 1/4" |
| Stud Size | 3/8" |
| Tongue Length | 0.93" |
| Tongue Style | Standard |
| Tongue Thickness | 0.15" |
| Tongue Width | 1 1/4" |
| Voltage | 35 kV |
Shipping Info:
| Ship weight (kg) | 0.69 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.17 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
