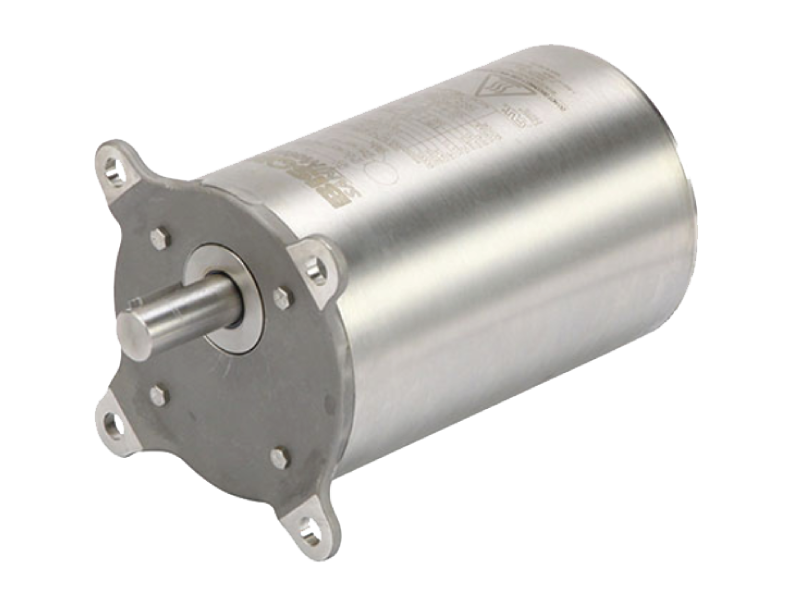

BISON GEAR & ENGINEERING 017-261-0140 Ac Gearmotor Inverter Rpm 12 Torque 500
Get it by Thursday, Jul 2
€1,945.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Application | Washdown |
| Base To Center Of Shaft | 2 1/2" |
| Bearing Type | Sealed Ball |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Finish | Unpainted |
| Full Load Amps | 0.5A |
| Gear Case Material | Stainless Steel |
| Gear Material | Steel |
| Gear Ratio | 140:1 |
| Gear Type | Right Angle |
| Gears | Steel |
| Grade | Grade 304 |
| Housing Material | Stainless Steel |
| Housing Material Finish | Unpainted |
| Included | 2M Straight Connector Power Cord |
| Input Hp | 1/8 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Key Way Size | 6 mm sq. x 25 mm |
| Keyway Depth | 3/16" |
| Keyway Type | Rounded |
| Keyway Width | 5 mm |
| Length Less Shaft | 223 mm |
| Lubrication | Food-Grade Grease |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Output Speed | 12 RPM |
| Max. Torque | 500 lbs.-in. |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Hole Center To Center Length | 3.14" |
| Mount Hole Center To Center Width | 3.14" |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Mounting Type | Any Position |
| Nameplate Speed | 12 RPM |
| No Load Speed | 12 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 230V AC |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 3 23/25" |
| Overall Length | 10.66" |
| Overall Width | 3 23/25" |
| Overhung Load | 165 lbs. |
| Overhung Load Capacity | 165 lbs.-ft. |
| Phase | 3 |
| Reversible Shaft Output | Yes |
| Rotation | CW, CCW |
| Rpm @ 50 Hz | 8 |
| Seal Type | Triple Lip Cartridge Seal With Stainless Slinger |
| Seals | Triple Lip Cartridge Seal With Stainless Slinger |
| Shaft | Single Output |
| Shaft Orientation | Parallel |
| Speed | 0-15 RPM |
| Speed @ 50 Hz | 8 RPM |
| Starting Torque | 800 lbs.-in. |
| Thermal Protection | No |
Shipping Info:
| Ship weight (kg) | 11 |
| Ship height (cm) | 9.96 |
| Ship length (cm) | 27.08 |
| Ship width (cm) | 9.96 |
| HS code | 8501404020 |
| Country of Origin | US |
Product Variants
| Model | Gear Ratio | Rotation | Max. Torque | Overhung Load Capacity | Output Shaft Dia. | Overhung Load | No Load Speed | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 017-261-0005 | 5:1 | CW, CCW | 20 lbs.-in. | 240 lbs.-ft. | 5/8" | 240 lbs. | 378 RPM | Grade 304 | €1,863.13 | |
| 017-261-0010 | 9.7:1 | CW, CCW | 39 lbs.-in. | 240 lbs.-ft. | 13/16" | 240 lbs. | 188 RPM | Grade 304 | €2,086.89 | |
| 017-261-0019 | 18.8:1 | CW, CCW | 76 lbs.-in. | 300 lbs.-ft. | 13/16" | 300 lbs. | 98 RPM | Grade 304 | €1,991.69 | |
| 017-261-0072 | 71.5:1 | Reversible | - | - | - | 200 lbs. | 25 RPM | 304 | €1,755.61 | |
| 017-261-0221 | 221:1 | CW, CCW | 500 lbs.-in. | 130 lbs.-ft. | 5/8" | 130 lbs. | 6 RPM | Grade 304 | €1,614.75 | |
| 017-261-0140 | 140:1 | - | - | - | - | - | - | - | €1,603.92 | |
| 017-261-1005 | 5:1 | - | - | - | - | - | - | - | €1,777.72 |
