BISON GEAR & ENGINEERING 011-348-4100 DC Gearmotor, 1/8 HP, 17 RPM, 90 V
Get it by Monday, Aug 31
5.00% off
€945.87 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Gearmotor |
| Bearing Type | Ball , Needle With Thrust Ball |
| Duty Condition Type | Continuous Duty |
| Enclosure Abbreviation | Tenv |
| Enclosure Type | Tenv , Tenv (Totally Enclosed Non Ventilated) |
| Family Series | Bison Gear, Engineering Gearmotors, 348 Series PMDC Series |
| Finish | Gloss Black Powder Coat |
| Full Load Torque | 350" |
| Gear Ratio | 102.4:1 , 102:1 |
| Gearing | Hardened Steel, AGMA Class 9 |
| Housing Material | Die Cast Aluminum |
| Input Hp | 1/8 hp |
| Input Power | DC |
| Insulation Class | Class F |
| Ip Rating | IP43 |
| Lubrication | Lifetime Oil Bath, Sealed And Gasketed |
| Motor Supply Voltage | 90V |
| Motor Type | Pmdc |
| Mounting | Face, Base, Any Angle |
| Mounting Footplate | Included |
| Nameplate Speed | 17 RPM |
| Nominal Ratio (1) | 102 |
| Nominal Voltage | 125/90V DC |
| Output Speed | 17 RPM |
| Output Style | Parallel Shaft |
| Overhung Load | 500 lbs. |
| Replacement Brushes | P158-200-9000 |
| Rotation | Reversible |
| Shaft Material | Hardened Steel |
| Shaft Type | Parallel |
| Stage | 3 |
| Torque | 350 lbs.-in. |
| Voltage | 90V |
| Voltage Dc | 130/90V DC |
Shipping Info:
| Ship weight (kg) | 6.3 |
Product Variants
| Model | Nameplate Speed | Voltage | Torque | Full Load Amps | Gear Ratio | Replacement Brushes | Motor Supply Voltage | Full Load Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

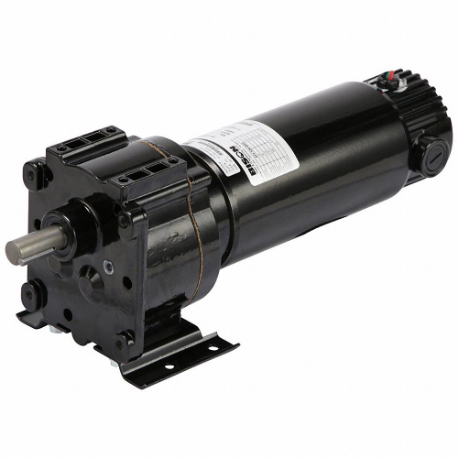

| 011-336-4005 | 360 RPM | 90V | 40 lbs.-in. | 2.5A | 5:1 | P158-200-9000 | - | - | €1,401.66 | |
| 011-348-4040 | 42 RPM | 90V | 300 lbs.-in. | 2.3A | 43:1 | P158-200-9000 | - | - | €1,129.50 | |
| 011-336-4011 | 170 RPM | 90V | 90 lbs.-in. | 2.5A | 11:1 | P158-200-9000 | - | - | €1,395.91 | |
| 011-336-1091 | 20 RPM | 90V | 140 lbs.-in. | - | 91:1 | P158-200-2600 | 90V | 140" | €695.27 | |
| 011-336-1208 | 9 RPM | 90V | 293 lbs.-in. | - | 208:1 | P158-200-2600 | - | - | €695.27 | |
| 011-336-1329 | 6 RPM | 90V | 183 lbs.-in. | - | 329:1 | P158-200-2600 | 90V | 183" | €695.27 | |
| 011-336-2005 | 360 RPM | 90V | 20 lbs.-in. | - | 5:1 | P158-200-9000 | 90V | 20" | €725.74 |
