BISHOP-WISECARVER UT2WPAP Carriage Assembly 27.7 x 38 x 144.2 Mm
Item: AC2VPNModel: UT2WPAPCross Ref: 2NDG7
7 In Stock
Ships within 2 days via
10.00% off
€263.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Linear Guide Carriage Assembly |
| Carriage Finish | Anodized |
| Carriage Height | 1.09" |
| Carriage Height | 27.7mm |
| Carriage Hole Size | M8 x 1.25 mm |
| Carriage Length | 144.2mm |
| Carriage Length | 5.677" |
| Carriage Material | Aluminium |
| Carriage Material | Aluminum |
| Carriage Type | Vee |
| Carriage Width | 38mm |
| Carriage Width | 1.496" |
| Dynamic Load Capacity | 32 lbf. |
| For Rail Size | Size 2 |
| For Rail Width | 1.574" |
| For Use With | Vee Profile |
| Lubrication | Lubricant Required |
| Max. Axial Load | 70 lbf. |
| Max. Radial Load | 37 lbf. |
| Max. Speed | 1.5 mps |
| Maximum Axial Static Load | 24 lbf. |
| Maximum Operating Temperature | 212°F |
| Maximum Radial Static Load | 14 lbf. |
| Minimum Operating Temperature | -67°F |
| Number Of Mounting Holes | 2 |
| Number Of Rollers | 3 |
| Overall Height | 35 mm |
| Product Type | Ball |
| Roller Finish | Anodized |
| Roller Material | Aluminum |
| Roller Type | Vee |
| Series | PW Series |
| Size | 2" |
| Slide Height | 35 mm |
| Slide Height (mm) | 35.0 |
| Slide Hole Size (mm) | 14.3x3 |
| Static Load Capacity | 32 lbf. |
| Temp. Range | -55°C to +100°C |
| Type | SW Series |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 19.3 |
| Ship width (cm) | 7.62 |
| HS code | 8482101080 |
| Country of Origin | US |
Product Details:
- Carriage Finish (Clear Anodized)
- Slide Width (mm) (40)
Product Variants
| Product | Model | Size | Roller Material | Carriage Height | Carriage Width | Carriage Length | Type | Carriage Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

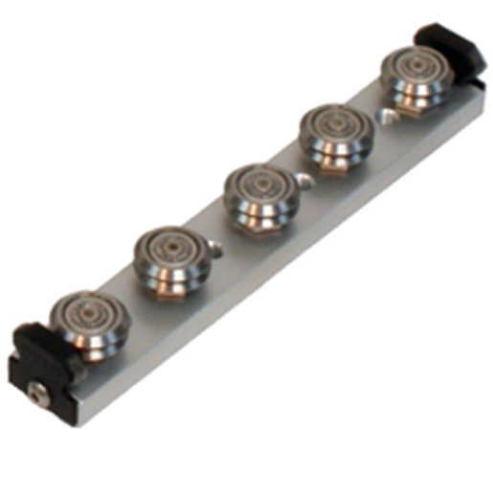

UT1WPA | 1" | Steel | 20.7 mm | 24 mm | 113.5 mm | SW Series | Aluminum | €333.96 | |
 |
UT1WPA-4A | 1" | Carbon Steel | 20.7 mm | 24 mm | 166.5 mm | SW Series | Aluminum | €524.30 | |
 |
UT1WPA-5A | 1" | Carbon Steel | 20.7 mm | 24 mm | 166.5 mm | SW Series | Aluminum | €586.07 | |
|
UT0WPAP | 0" | Aluminum | 17.7 mm | 18 mm | 79.9 mm | SW Series | Aluminum | €314.69 | |
|
UT1WPAP | 1" | Aluminum | 20.7 mm | 24 mm | 113.5 mm | SW Series | Aluminum | €259.07 | |
|
UT2WPAXS | 2" | Carbon Steel | 1.09" | 1.496" | 5.677" | SW Series | Aluminum | €495.86 | |
|
UT2WPAXS-4A | 2" | Carbon Steel | 1.09" | 1.496" | 8.826" | SW Series | Aluminum | €599.81 |
