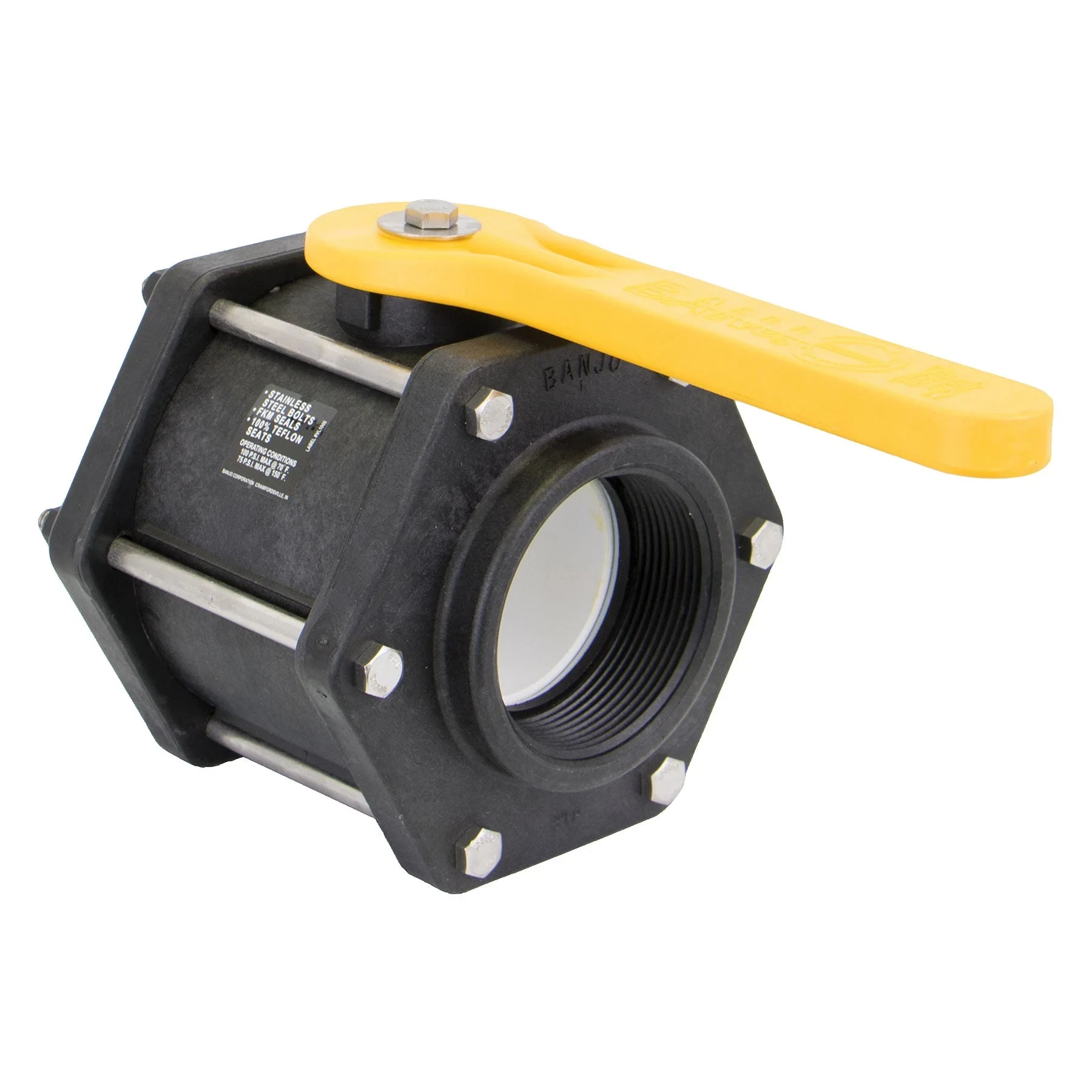

BANJO FITTINGS V300FP Full Port Ball Valve 6 Bolt Design, 3 Inch, Polypropylene
Item: AB2KKDModel: V300FPCross Ref: 1MKK8
7 In Stock
Ships within 2 days via
10.00% off
€322.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Polypropylene |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Polypropylene |
| Body Style | Inline |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3" |
| Connection Size - Side 2 | 3" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Water |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Length | 9 1/4" |
| Handle Material | Polypropylene |
| Handle Type | Lever |
| Max. Operating Pressure | 200 psi |
| Max. Operating Temp. | 150 Deg. F |
| Max. Operating Temp. | 150°F |
| Max. Pressure | 100 psi WOG |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 200 psi |
| Maximum Pressure | 100 psi WOG |
| Media Temp. Range | 0°F to 150°F |
| Nominal Valve Size | 3" |
| Number Of Bolts | 6 |
| Number Of Pieces | 3 |
| Opening Thru Ball | 3" |
| Overall Length | 6.59" |
| Pipe Size | 3" |
| Port | Full |
| Product Datasheet | banjo-fittings-v300fp.pdf |
| Seal Material | FKM |
| Seat Material | PTFE |
| Special Features | Stubby Valve |
| Stem Material | Polypropylene |
| Stem Type | Self Lubricating |
| Temp. Range | Up To 150°F |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Size | 3" |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 16.1 |
| Ship width (cm) | 30.48 |
| HS code | 8481805090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Valve Size | Max. Pressure | Overall Length | Connection Type | Pipe Size | Port | Max. Operating Pressure | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
V200FP | 2" | 150 psi WOG | 5.34" | FNPT x FNPT | 2" | Full | 225 psi | - | €141.41 | |
 |

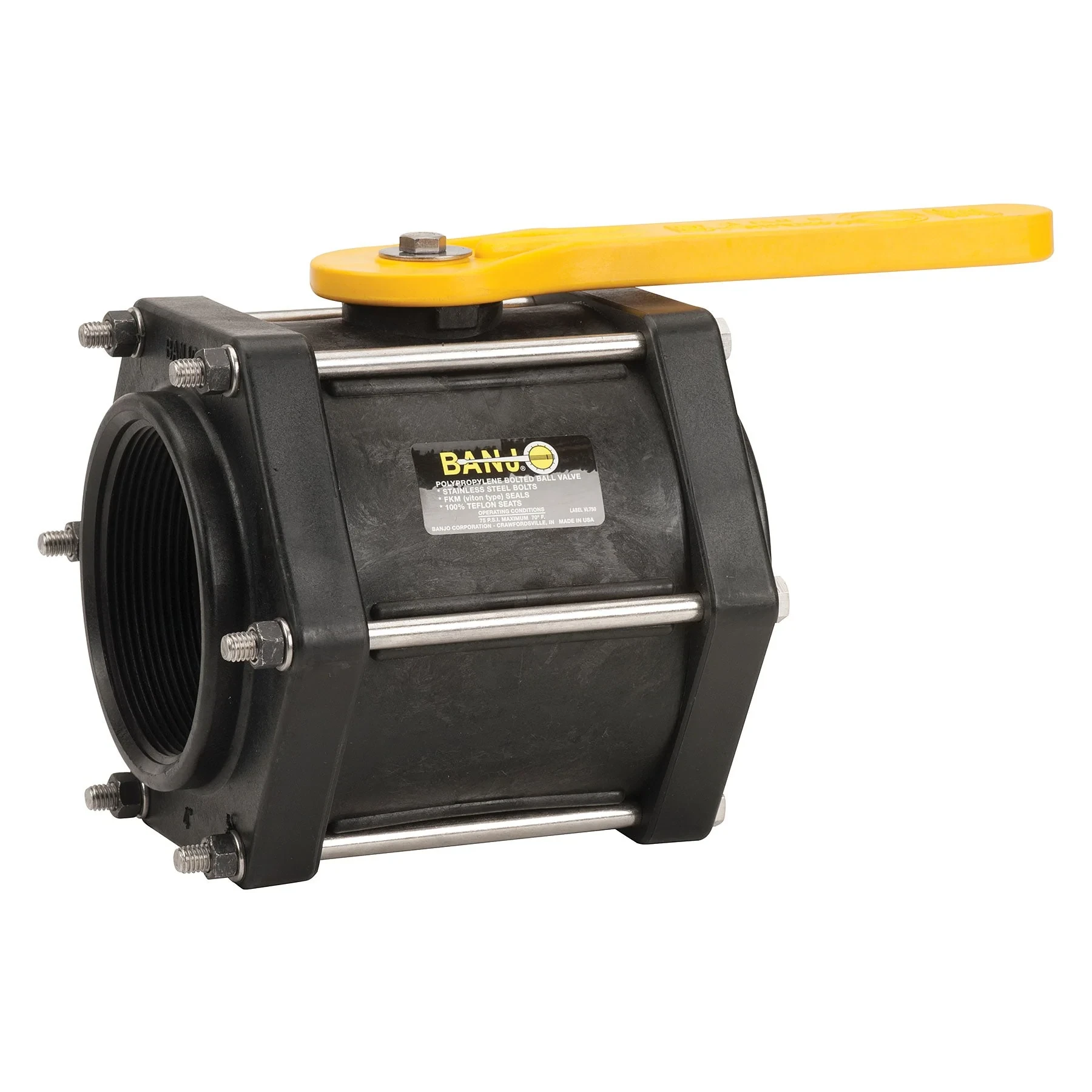

V400 | 3.5" x 4" | 75 psi WOG | 8.13" | FNPT x FNPT | 4" | Standard | 100 psi | Bolted | €697.68 | |
 |
VFMT200FP | 2" | 150 psi | 8.22" | Male Adapter x MNPT | 2" | Full | 225 psi | Six Bolt | €173.68 | |
 |
V300 | 3" | 100 psi | 6" | - | 3" | - | - | Six Bolt | €245.29 |
