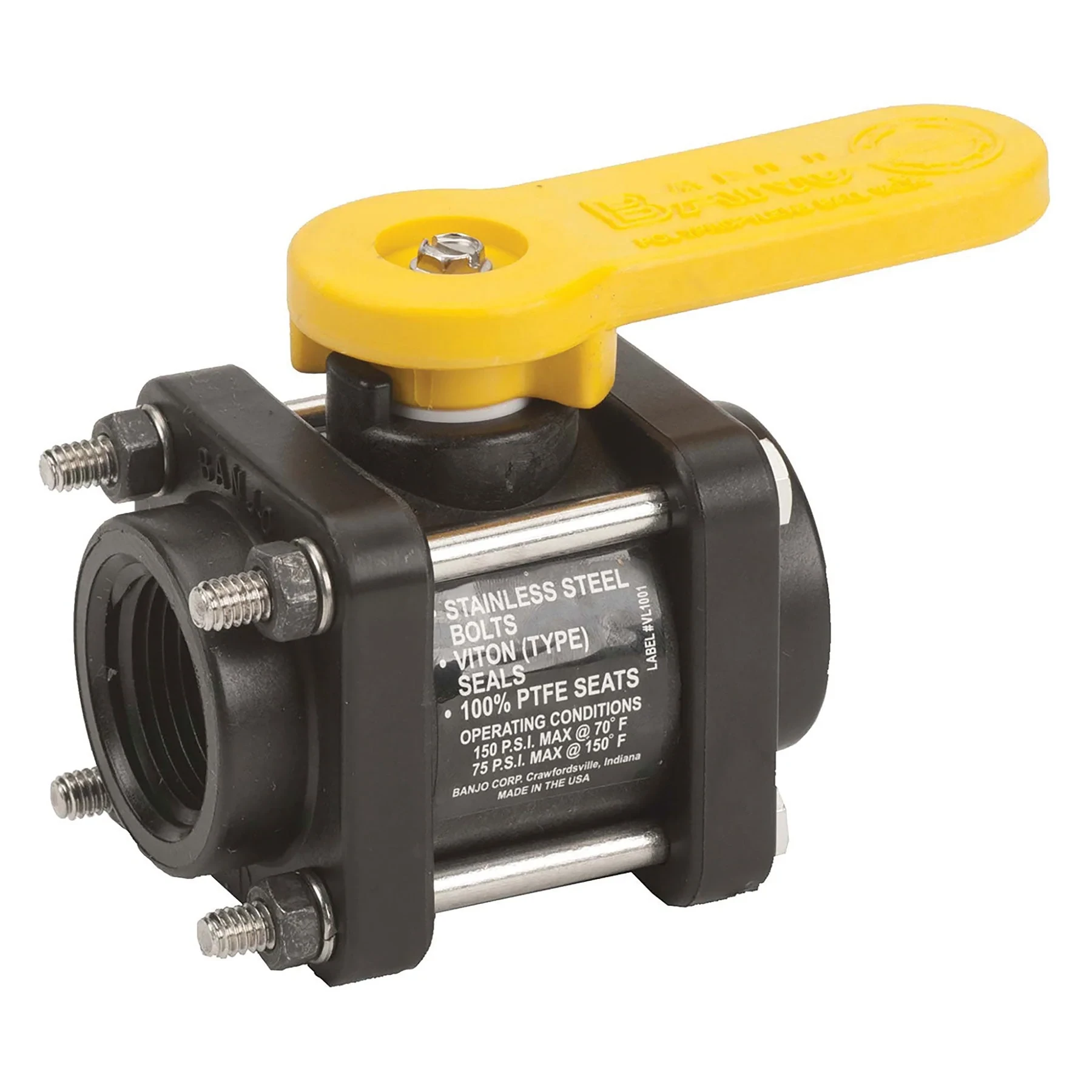

BANJO FITTINGS V100 Ball Valve, Standard Port, 1 Inch, Polypropylene
Item: BW9BQUModel: V100Cross Ref: 803HW8
7 In Stock
Ships within 2 days via
10.00% off
€65.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Polypropylene |
| Ball Port Style | Standard Port |
| Body Material | Polypropylene |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Corrosive Chemicals, Water |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Height | 1.59" |
| Handle Length | 3.31" |
| Handle Material | Polypropylene |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 150°F |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 225 psi |
| Media Temp. Range | 0°F to 150°F |
| Nominal Valve Size | 1" |
| Number Of Bolts | 4 |
| Opening Thru Ball | 3/4" |
| Overall Length | 3.5" |
| Pipe Size | 1" |
| Product Datasheet | banjo-fittings-v100.pdf |
| Seal Material | FKM |
| Seat Material | PTFE |
| Size | 1" |
| Stem Material | Polypropylene |
| Stem Type | Self Lubricating |
| Style | Four Bolt |
| Type | Bolted |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Size | 1" |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Valve Size | Overall Length | Max. Pressure | Pipe Size | Max. Operating Pressure | Port | Style | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
V050 | 1/2" | 3.5" | 150 psi WOG | 1/2" | 300 psi | Standard | - | Polypropylene | €70.70 | |
 |
V075 | 3/4" | 3.5" | 150 psi WOG | 3/4" | 300 psi | Standard | - | Polypropylene | €69.07 | |
 |
V100FP | 1" | 4.13" | 150 psi WOG | 1" | 300 psi | Full | - | Polypropylene | €77.85 | |
 |
V125FP | 1/4" | 4.59" | 150 psi WOG | 1 1/4" | 225 psi | Full | - | Polypropylene | €102.67 | |
 |

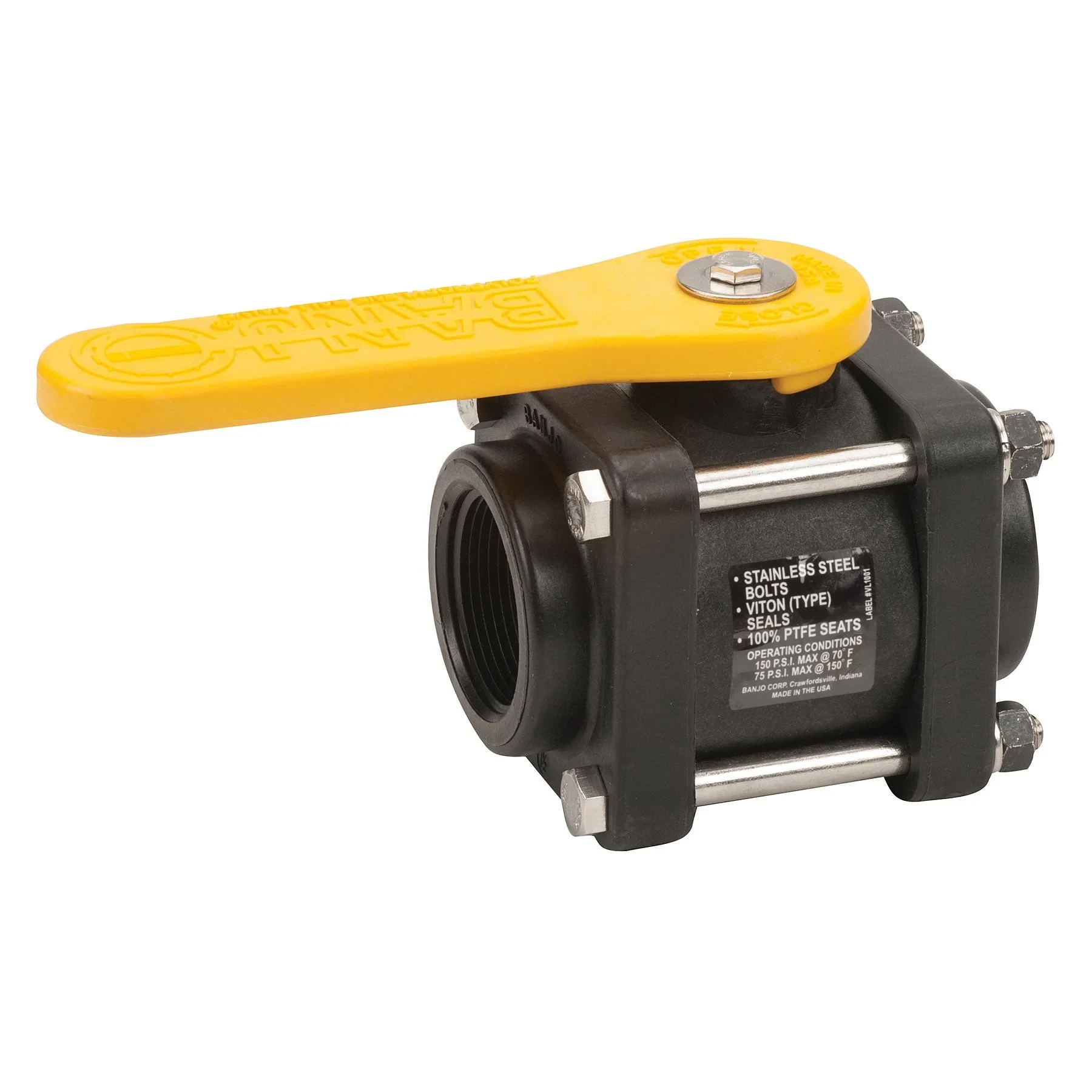

V150 | 1 1/2" | 4.59" | 150 psi WOG | 1 1/2" | 225 psi | Standard | - | Polypropylene | €102.67 | |
 |

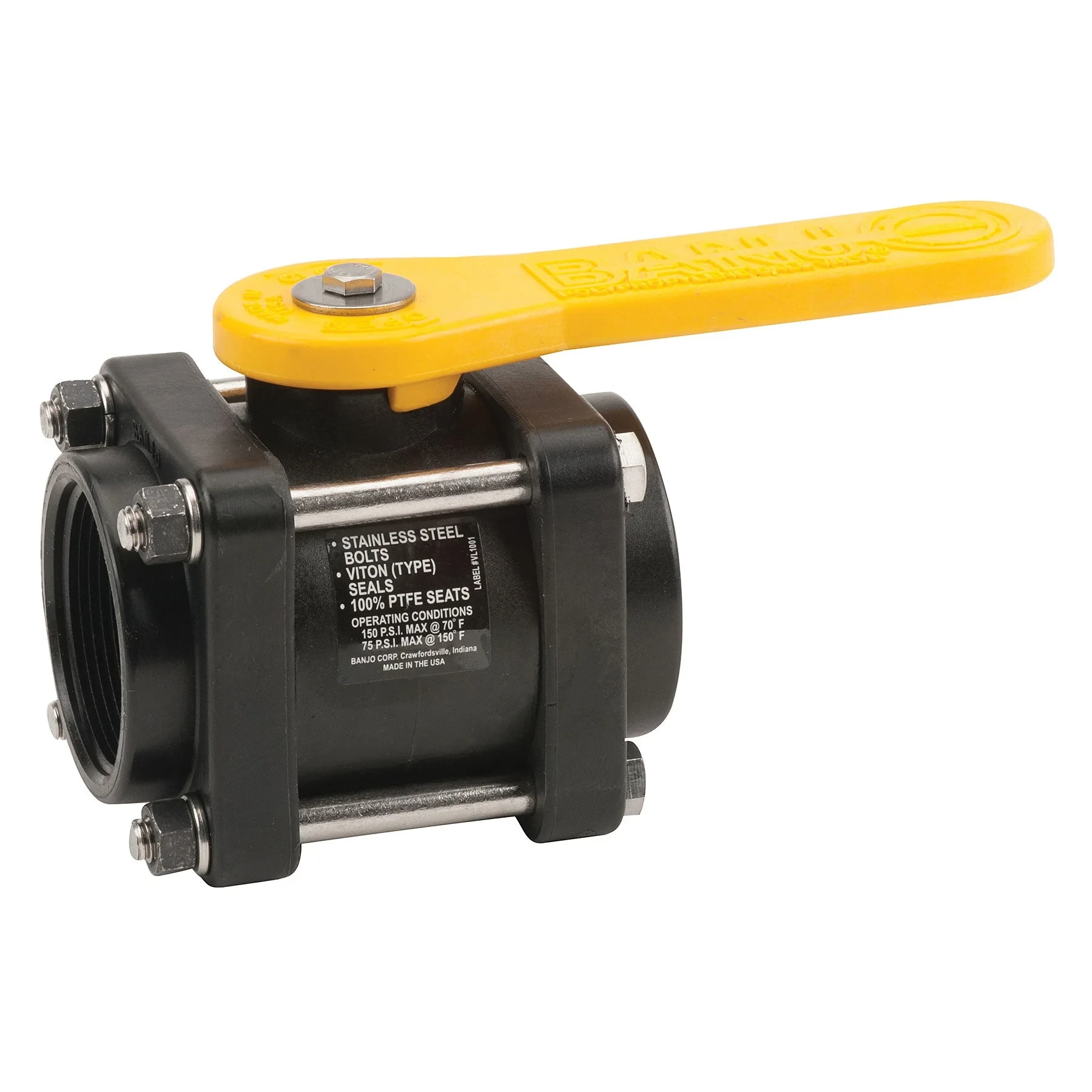

V200 | 2" | 4.63" | 150 psi WOG | 2" | 225 psi | Standard | Bolted | Polypropylene | €109.62 | |
 |

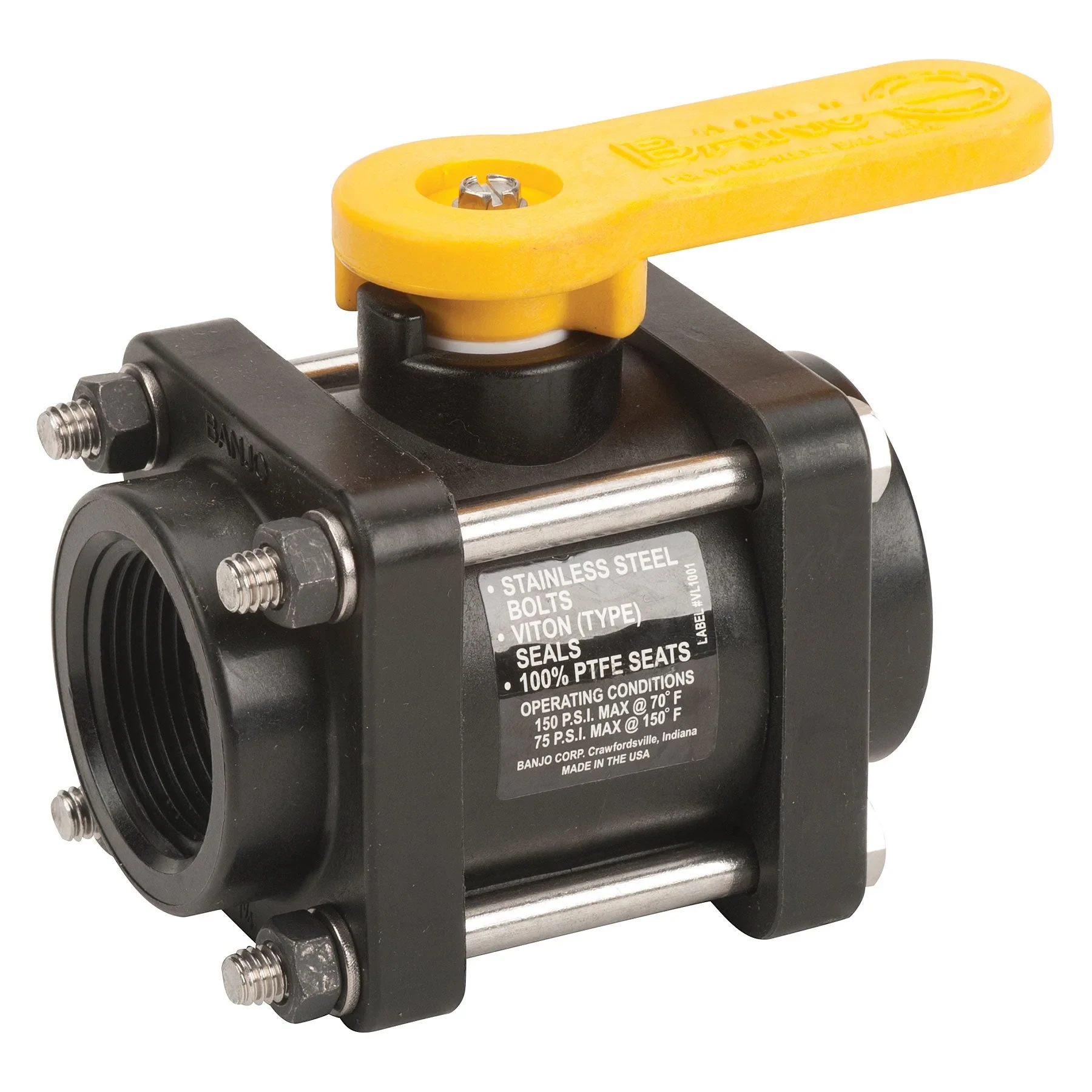

V125 | 1/4" | 4.13" | 300 psi | 1 1/4" | - | - | Four Bolt | Polypropylene | €82.17 |
