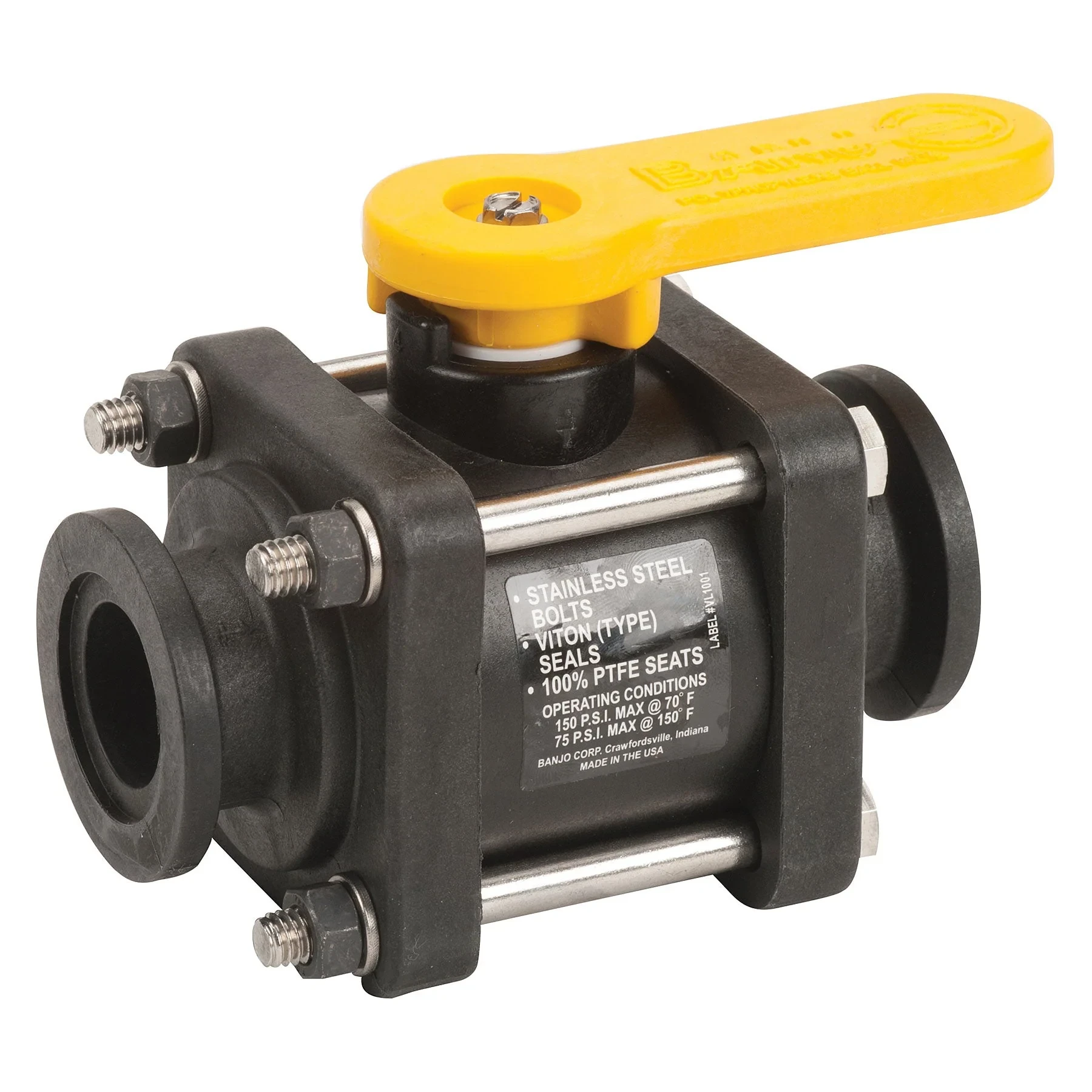

BANJO FITTINGS MV100CF Manifold Valve, Full Port, 1 Inch Size
Item: BW9CMUModel: MV100CFCross Ref: 803HV1
7 In Stock
Ships within 2 days via
10.00% off
€73.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Polypropylene |
| Ball Port Style | Full Port |
| Body Material | Polypropylene |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| For Media | Corrosive Chemicals, Water |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Height | 2.53" |
| Handle Length | 3.31" |
| Handle Material | Polypropylene |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 150°F |
| Max. Pressure | 150 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 300 psi |
| Media Temp. Range | 0°F to 150°F |
| Nominal Valve Size | 1" |
| Number Of Bolts | 4 |
| Opening Thru Ball | 1" |
| Overall Length | 4.97" |
| Pipe Size | 1" |
| Port | Full |
| Product Datasheet | banjo-fittings-mv100cf.pdf |
| Seal Material | FKM |
| Seat Material | PTFE |
| Size | 1" |
| Stem Material | Polypropylene |
| Stem Type | Self Lubricating |
| Style | Bolted |
| Type | Valves |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Size | 1" |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Valve Size | Stem Material | Overall Length | Max. Pressure | Pipe Size | Number Of Bolts | Max. Operating Pressure | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

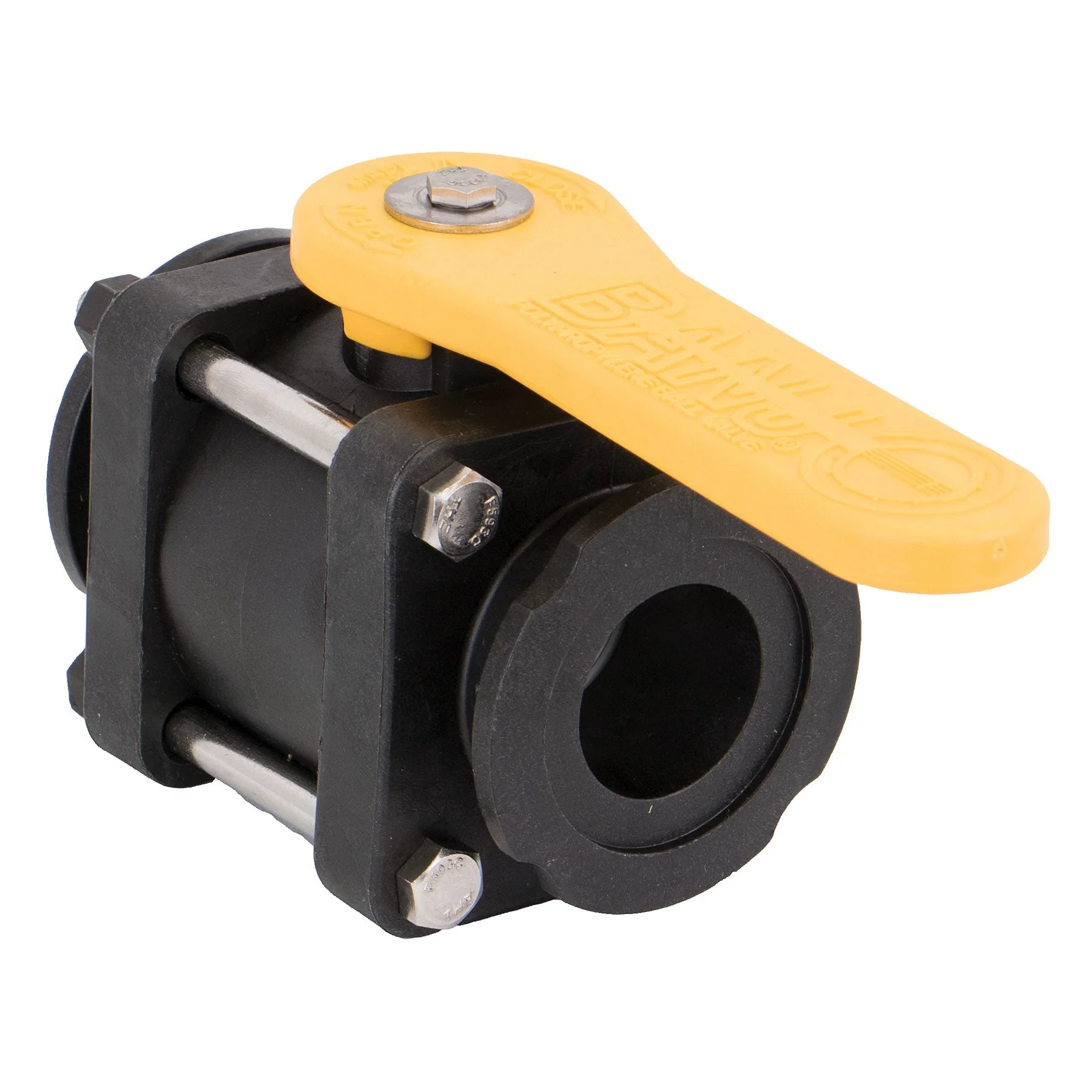

MV200CF | 2" | Polypropylene | 5.16" | 150 psi | 2" | 4 | 225 psi | Polypropylene | €107.78 | |
 |
MV220CF | 2" | PTFE | 6.22" | 150 psi | 2" | 4 | - | Polypropylene | €151.46 | |
 |
MV300 | 3" | Polypropylene | 7.22" | - | 3" | - | - | Polypropylene | €266.80 | |
 |
MV300CF | 3" | PTFE | 8.16" | 100 psi | 3" | 6 | - | Polypropylene | €319.66 |
