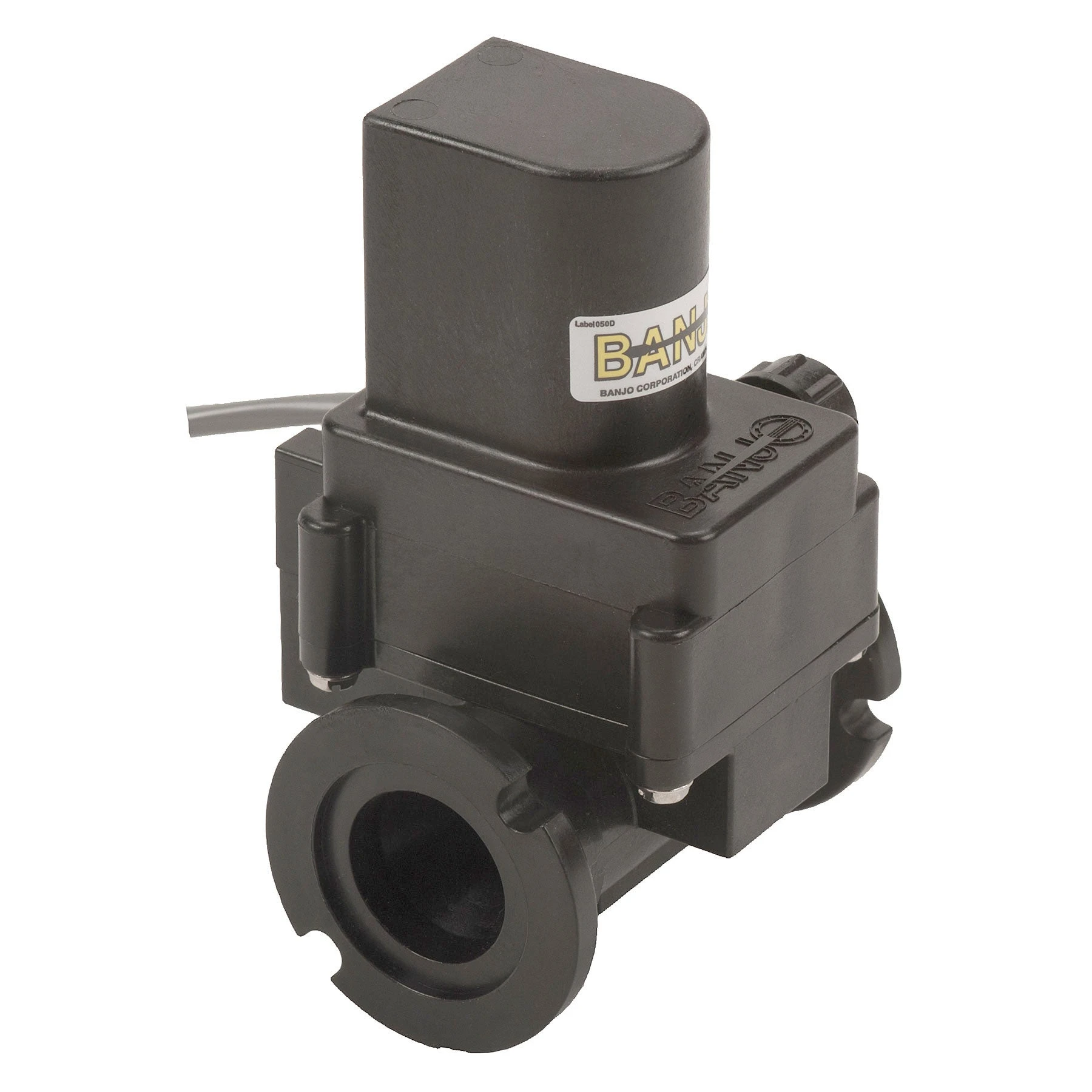

BANJO FITTINGS MLEV100C Electric Ball Valve, 1 Inch Pipe Size, 300 Psi, 12Vdc, Tfm Seat
Item: CN9DEJModel: MLEV100CCross Ref: 803HT2
7 In Stock
Ships within 2 days via
10.00% off
€342.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Actuator Cycle Time - 90° | 0.33 sec. |
| Actuator Duty Cycle | 100% |
| Actuator Features | Position Indicator |
| Actuator Motor Type | Reversing |
| Actuator Operation | 90° |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Grade 316 |
| Ball Material Grade | Stainless Steel |
| Ball Port Style | Standard Port |
| Body Material | Glass-Filled Polypropylene |
| Body Seal Material | EPDM |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | Manifold Flange x Manifold Flange |
| Connection Type - Side 1 | Manifold Flange |
| Connection Type - Side 2 | Manifold Flange |
| Fail Safe Position | Fail Last |
| For Media | Corrosive Chemicals, Water |
| Included Mounting | Actuator Mounting Pad |
| Max. Media Temperature | 150°F |
| Max. Pressure | 300 psi |
| Max. Pressure (cwp) | 300 psi |
| Max. Pressure Differential | 300 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Maximum Pressure - Steam | Not Applicable |
| Media Temp. Range | 0°F to 150°F |
| Min. Media Temperature | 0°F |
| Nominal Valve Size | 1" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1" |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Special Features | Not Applicable |
| Stem Material | Glass Filled Polypropylene |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Deactivated State | normally Closed (NC) |
| Valve Ways | 2-Way |
| Voltage | 12V DC |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Material | Seal Material | Ball Material | Body Seal Material | Max. Pressure | Stem Material | Voltage | Port | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

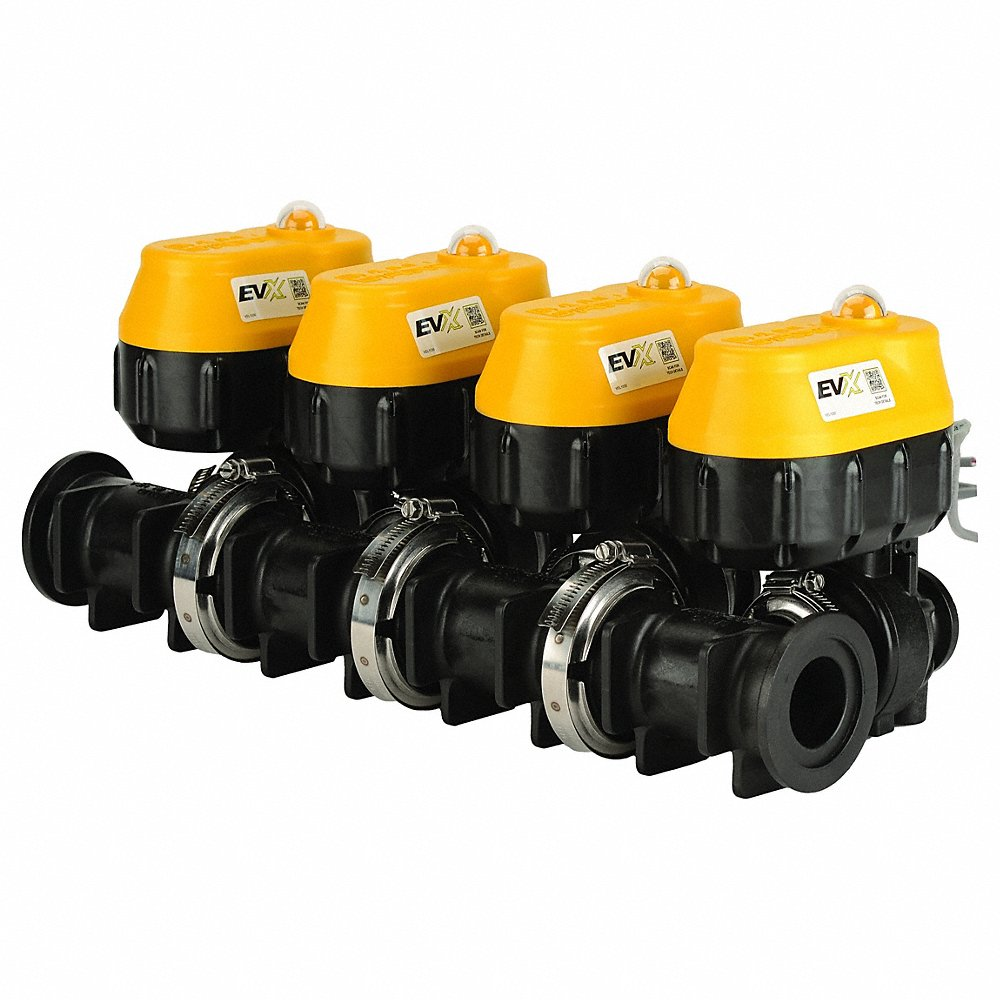

MEVX1014 | Glass Filled Polypropylene | FKM | Stainless Steel | FKM | 300 psi | 316 Stainless Steel | 12V DC | Full | €2,458.06 | |
 |

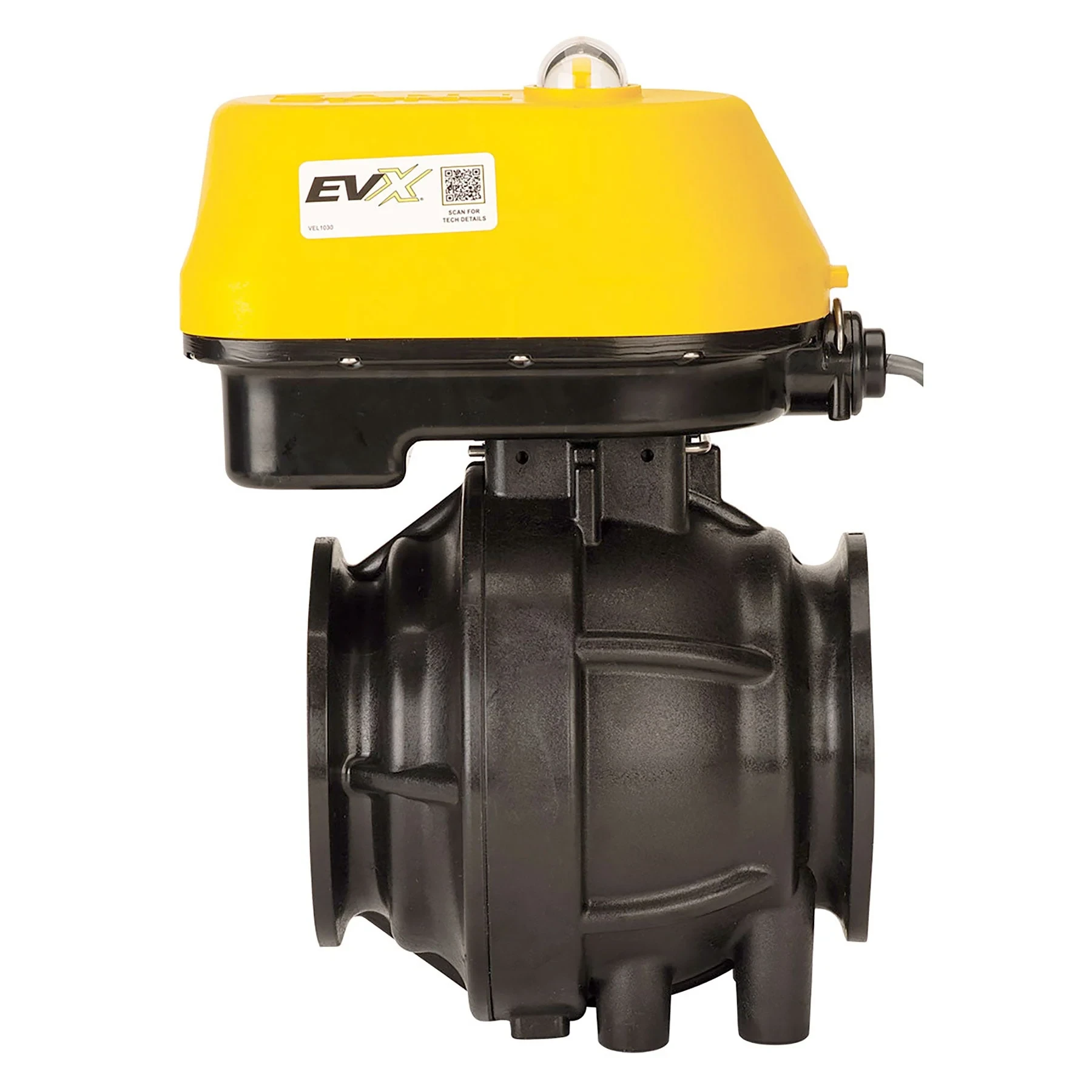

MEVX300 | Polypropylene | - | Stainless Steel | FKM | 125 psi | - | 12V DC | Full | €2,116.91 | |
 |

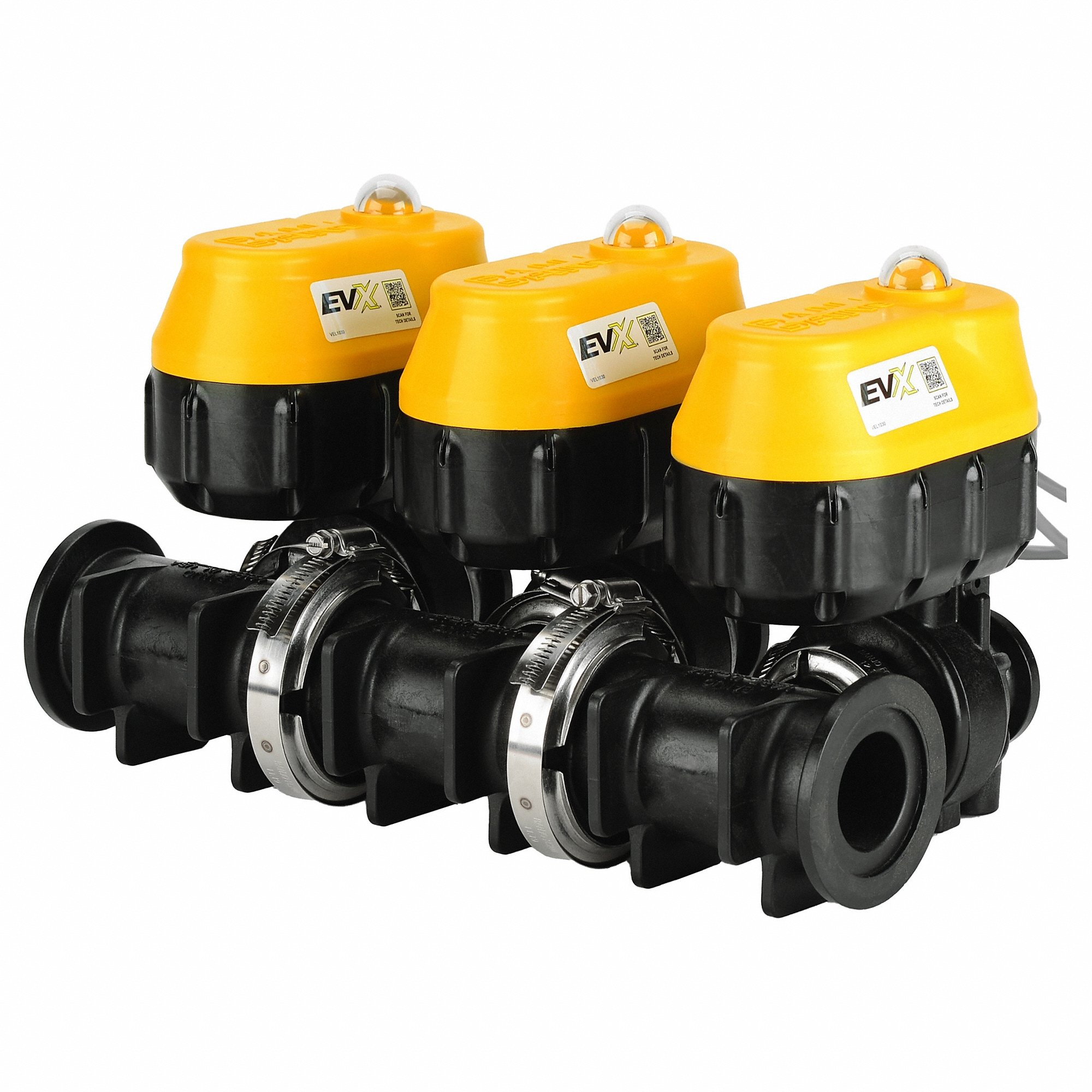

MEVX103A | Glass Filled Polypropylene | FKM | Stainless Steel | FKM | - | 316 Stainless Steel | 12V DC | Full | €1,974.07 |
